Engine

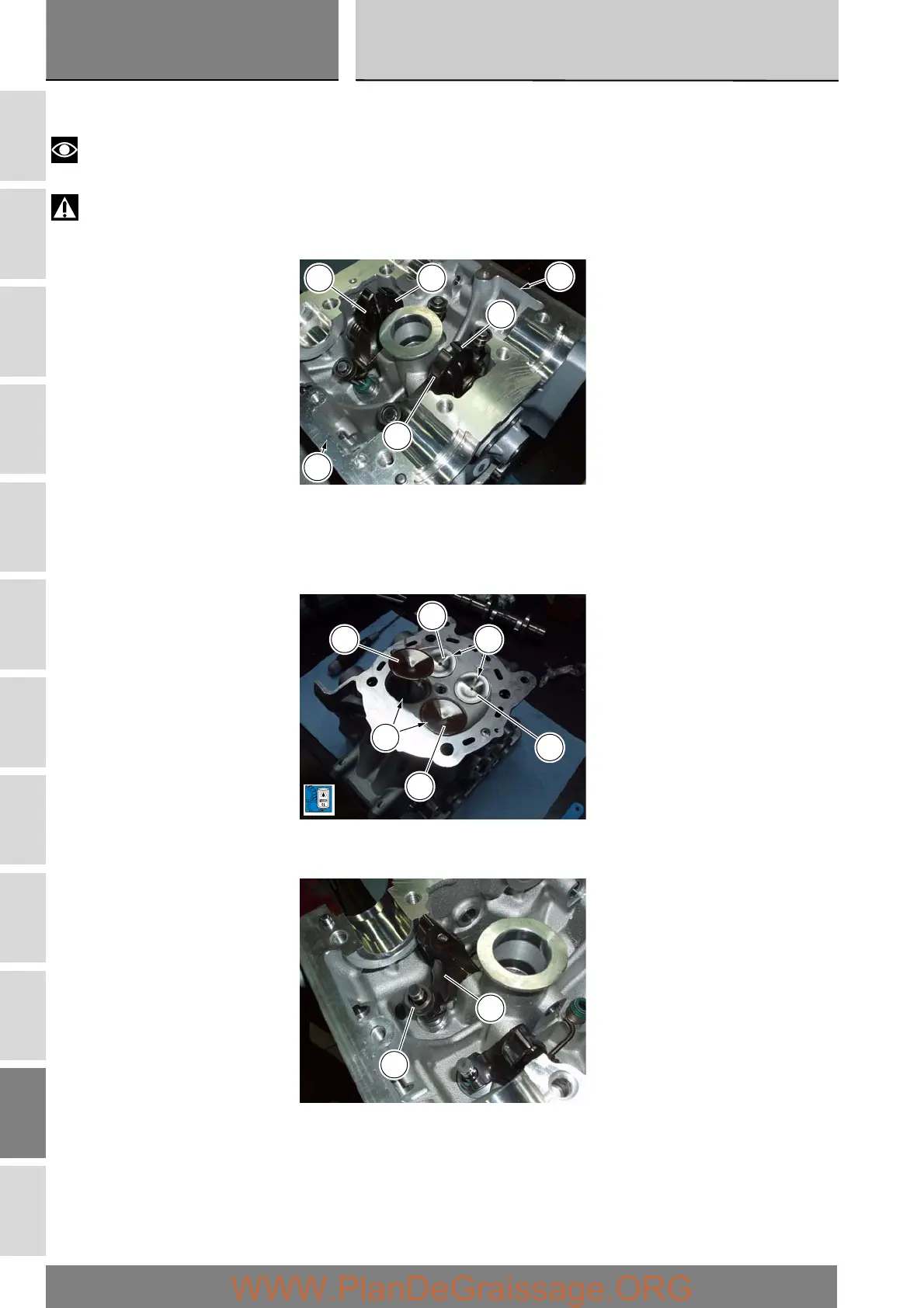

Proceed to install the closing rocker arms (4) and (16), the relative springs and shafts on the intake side (C) in the same manner
as described for the exhaust side (D).
Notes
Always install the closing rocker arms on the exhaust side before those on the intake side.
Warning
Take care not to damage the shoe of the closing rocker arm with the intake spring during assembly.
Refitting the valves, closing shims and half rings
Carefully clean the two intake valve seats (A) and the two exhaust valve seats (B).
Lubricate the stems of the two intake valves (14) and the two exhaust valves (11) with engine oil.
Install the valves in respective seats in the cylinde head.
Hold the closing rocker arm (16) pushed downwards and fit the closing shim (7) on the valve stem. If using the old cylinder head,
start by fitting the original shim.
16
4
16
4
C
D
14
14
11
11
A
B
16
7
