section
N 4.5
951098/1098S - M.Y. 2007 - edition 00
Engine

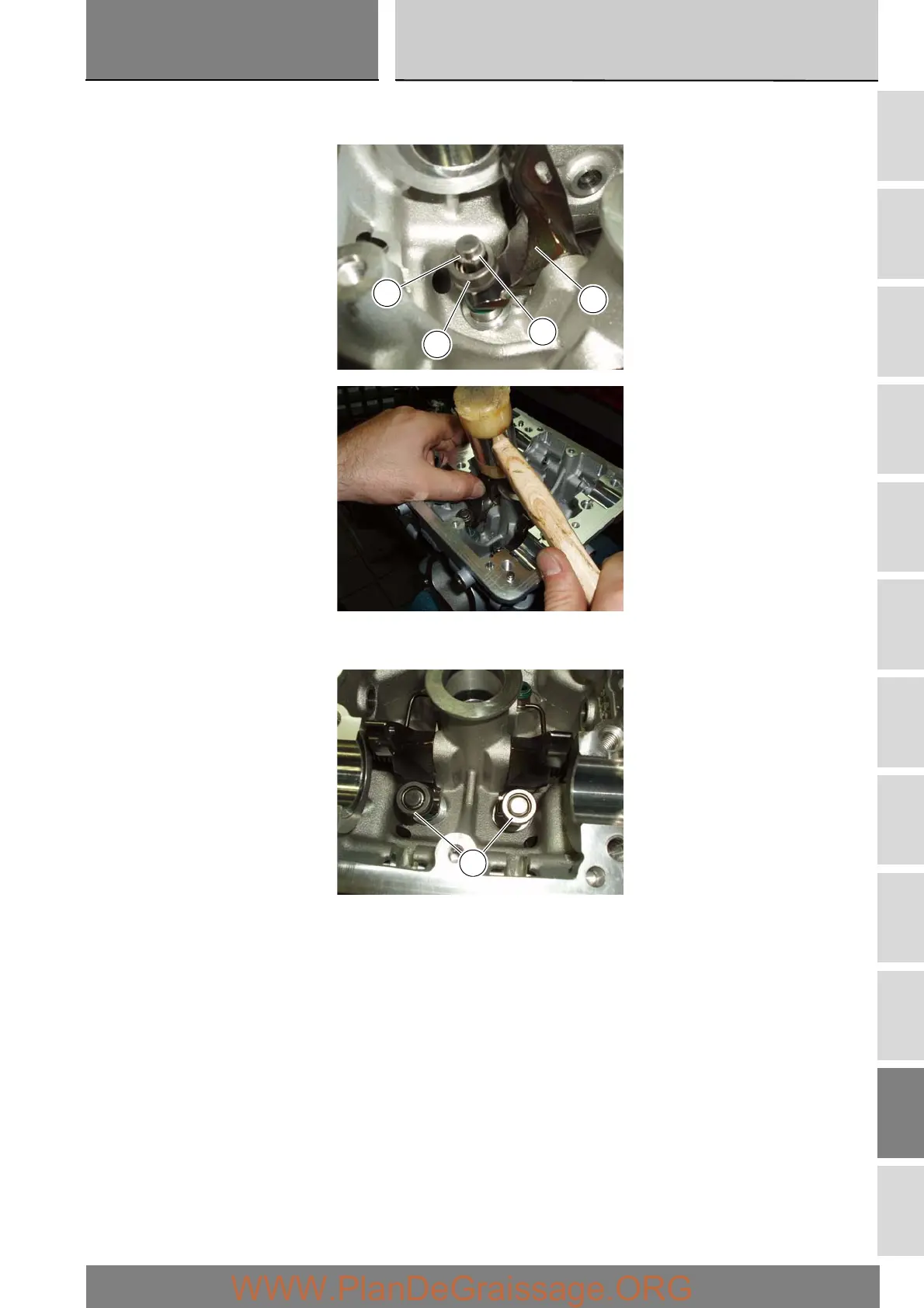

Insert the new half rings (6) and release the rocker arm to ensure that they seat inside the shim (7). To ensure the half-rings are
seated in the shim, tap the end of the rocker arm (16) with a rubber mallet.
Repeat the procedure with the opposite valve and check that the top of the valve stem is aligned with the surface of the shim
(7); if it is not, repeat the half-ring installation procedure.
Install the closing shims on the intake valves (14) using the method described above for the exhaust valves.
Refit the camshafts (Sect. N 4.2) to check the valve closing clearances (Sect. N 4.1).
16
6
7
6
7
