Engine

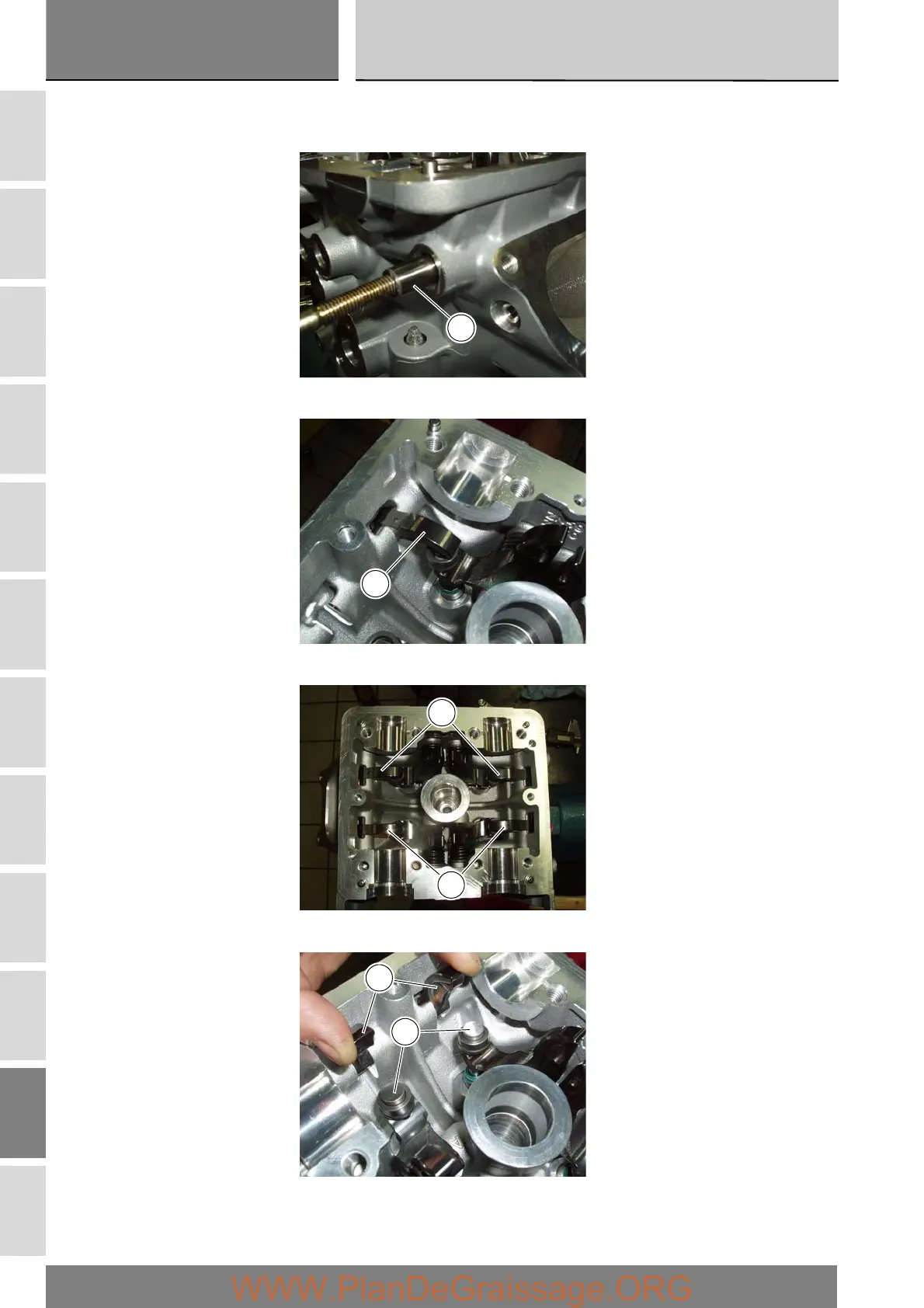

Refitting the opening shims and opening rocker arms
Using an M5 bolt, position the opening rocker arm shaft (2) (diameter 9 mm).
Locate the opening rocker arm (3) and drive the shaft home.
Install the four rocker arms (3) in the manner described above.
Raise the opening rocker arm (3) and install the opening shim (5) so it seats against the valve stem.
