Engine

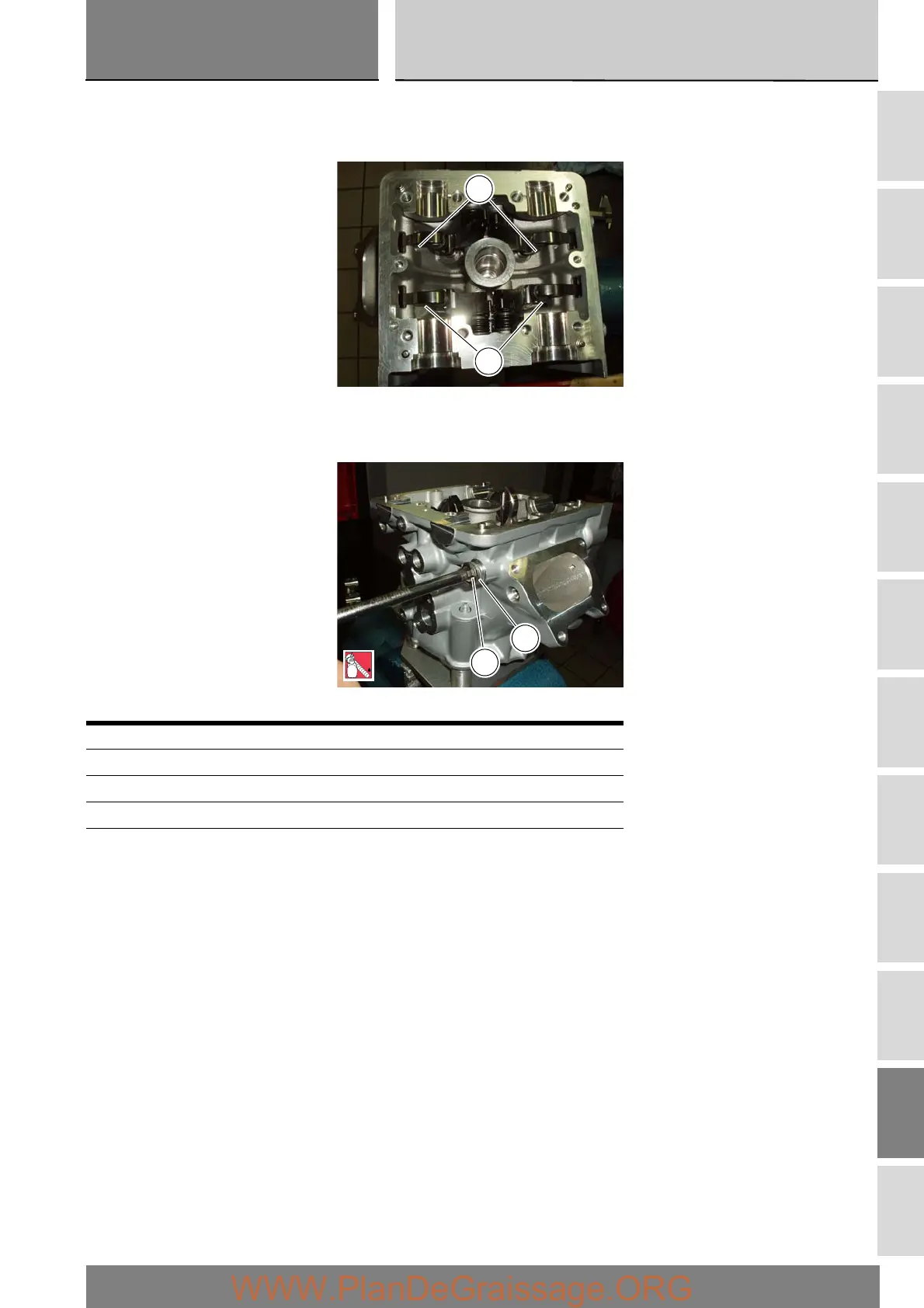

Release the rocker arm so that it rests against the shim.
Ensure the shim is correctly seated by lightly tapping the rocker arm shoe (A) with plastic mallet.
Refit the camshafts (Sect. N 4.2) to check the valve opening clearances (Sect. N 4.1).
Apply the recommended threadlocker to the plugs (12).
Fit the eight plugs (12) with their seals (15): position the seals so that the square edges face the cylinder head.
Tighten the plugs to the specified torque value (Sect. C 3).
Operation Section reference
Refit the camshaft supports N 4.4
Refit the timing belt pulleys N 4.2
Refit the rocker covers N 4.4
Refit the cylinder head assembly N 4.5, Fitting the cylinder head assemblies
