section
N 4.5
98 1098/1098S - M.Y. 2007 - edition 00
Engine

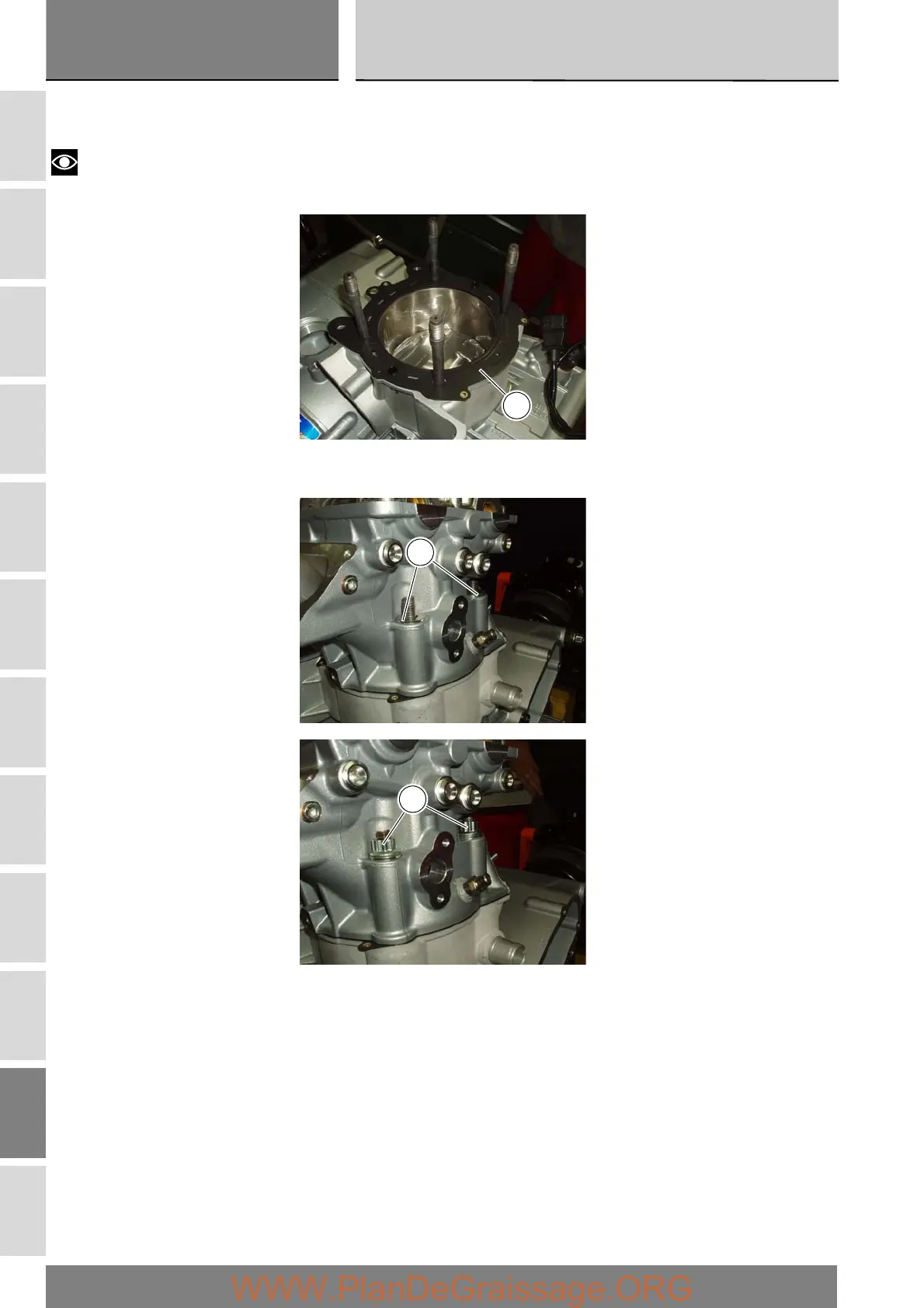

Fitting the cylinder head assemblies
Before fitting the cylinder head, check that gasket is in position on the mating surface between the head and cylinder (Sect. N 5).
Notes
When fitting the gasket, side (E) with the stamped code must be in contact with the cylinder head.
Lower the cylinder head carefully over the studs. Take care not to damage the threads.
Fit the special washers (22) and nuts (21) onto the cylinder head studs.
E
22
21
