N 6.1
120 1098/1098S - M.Y. 2007 - edition 00
Engine
Inspection and overhaul of the clutch components

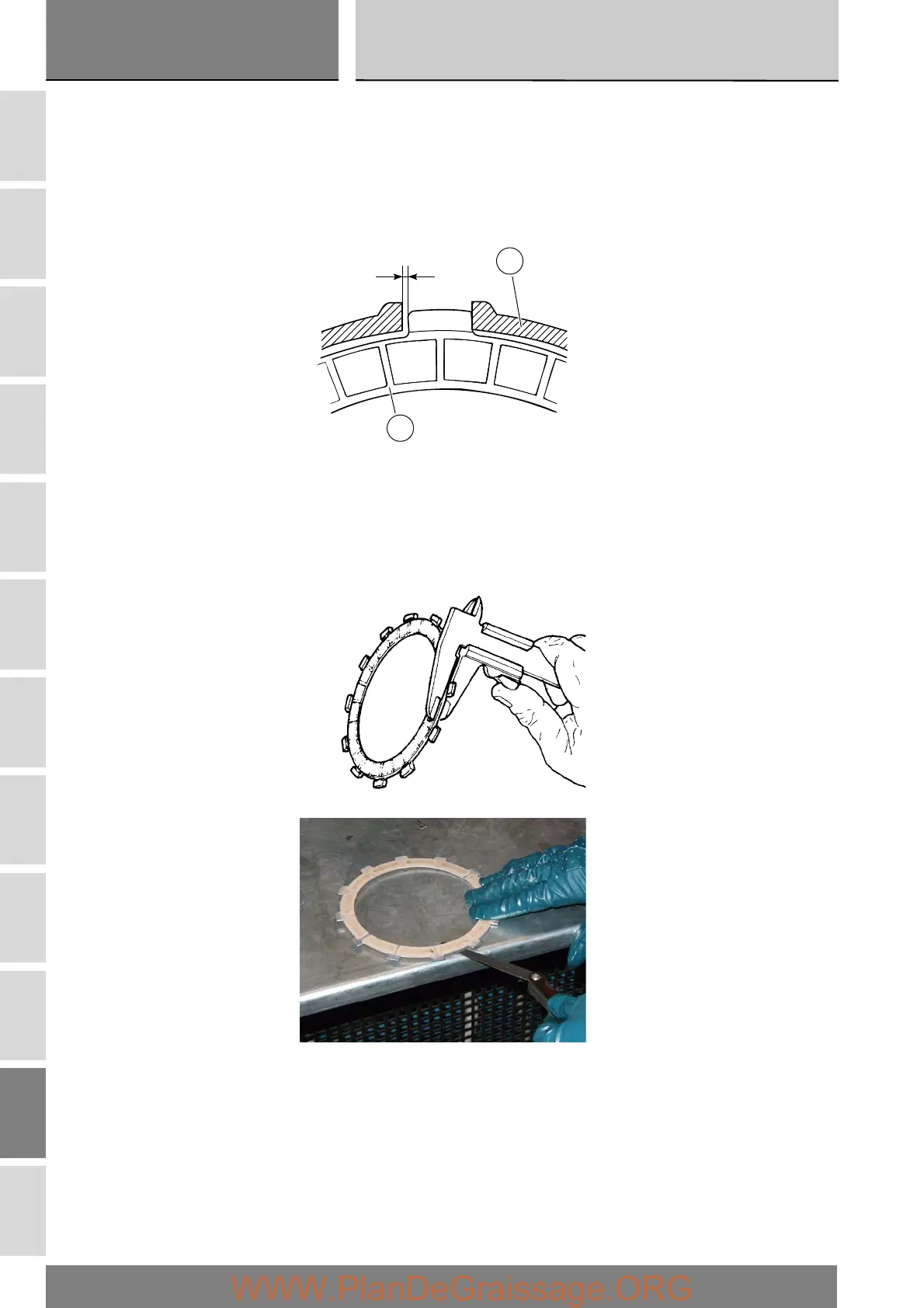

Checking the clearance between the clutch drum and the friction plates
Insert the friction plate (A) in the clutch drum (B) and measure tang-to-slot clearance (S) with a feeler gauge.
The clearance “S” must not exceed 0.6 mm.
If it does, renew the plates and, if necessary, the clutch drum.
Overhaul of the friction plates
The friction plates must not show any signs of blackening, grooves or deformation.
Measure the thickness of the friction plates. It should not be less than 2.8 mm.
Place the plate on a flat surface and check the amount of deformation with a feeler gauge.
Max flatness error: 0.2 mm.
S
B
A
