section
N 8
180 1098/1098S - M.Y. 2007 - edition 00
Engine

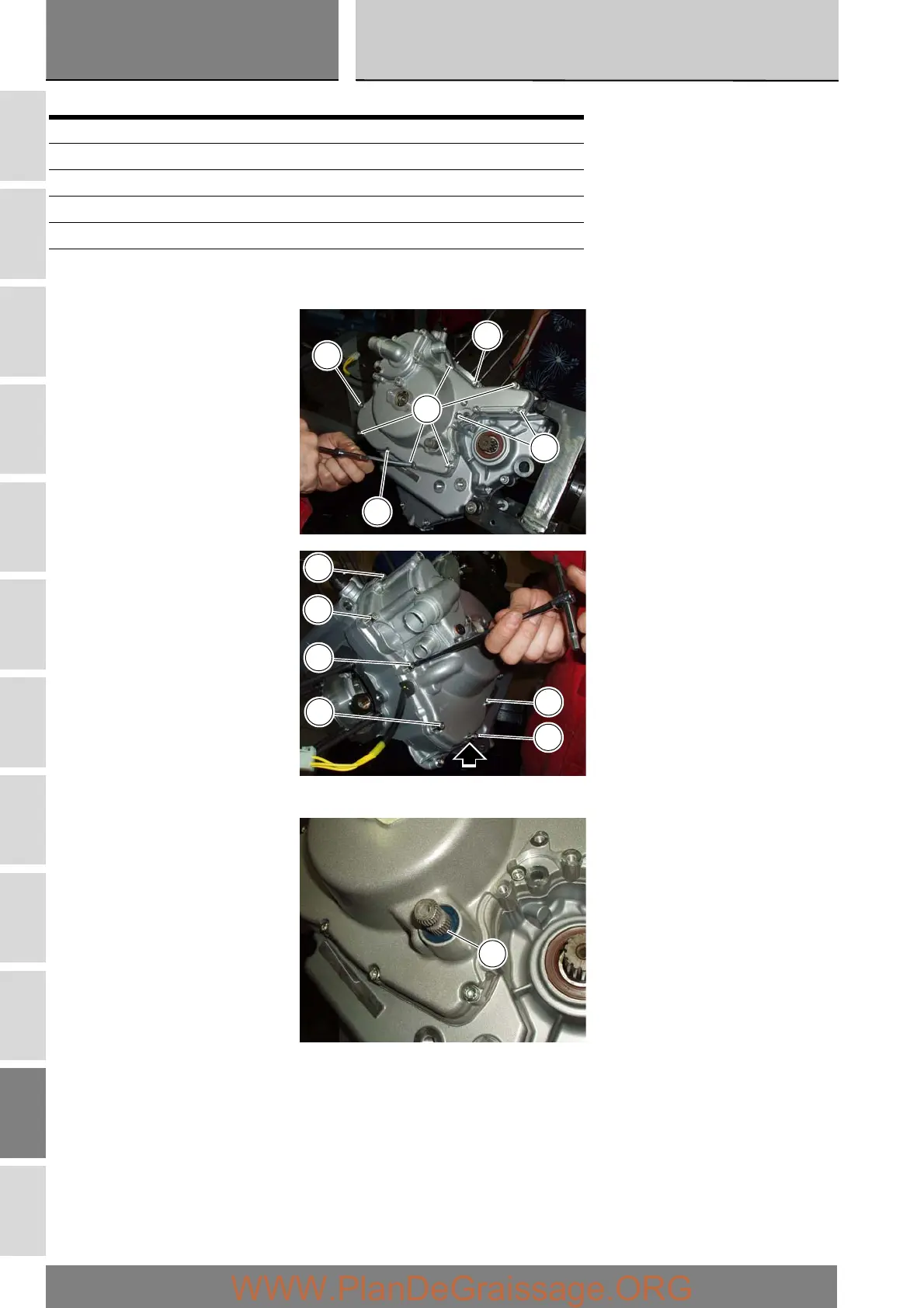

Insert the retaining bolts in their holes following the indications given in the table.
Under the bolt (11), located in correspondence with the starter motor, fit the washer (10) and hose/wiring clip (9).
Tighten the retaining bolts to the specified torque (Sect. C 3).
Dampen the seal (4) with alcohol and install it in the lh crankcase cover, in correspondence with the gear change shaft.
Ref. Qty. Description
11 8 M6x25 mm bolts
12 2 M6x20 mm bolts
13 2 M6x30 mm bolts
1 1 M6x25 mm drive-lock bolt
11
12
1
13
13
11
11
11
11
13
1
4
