Engine

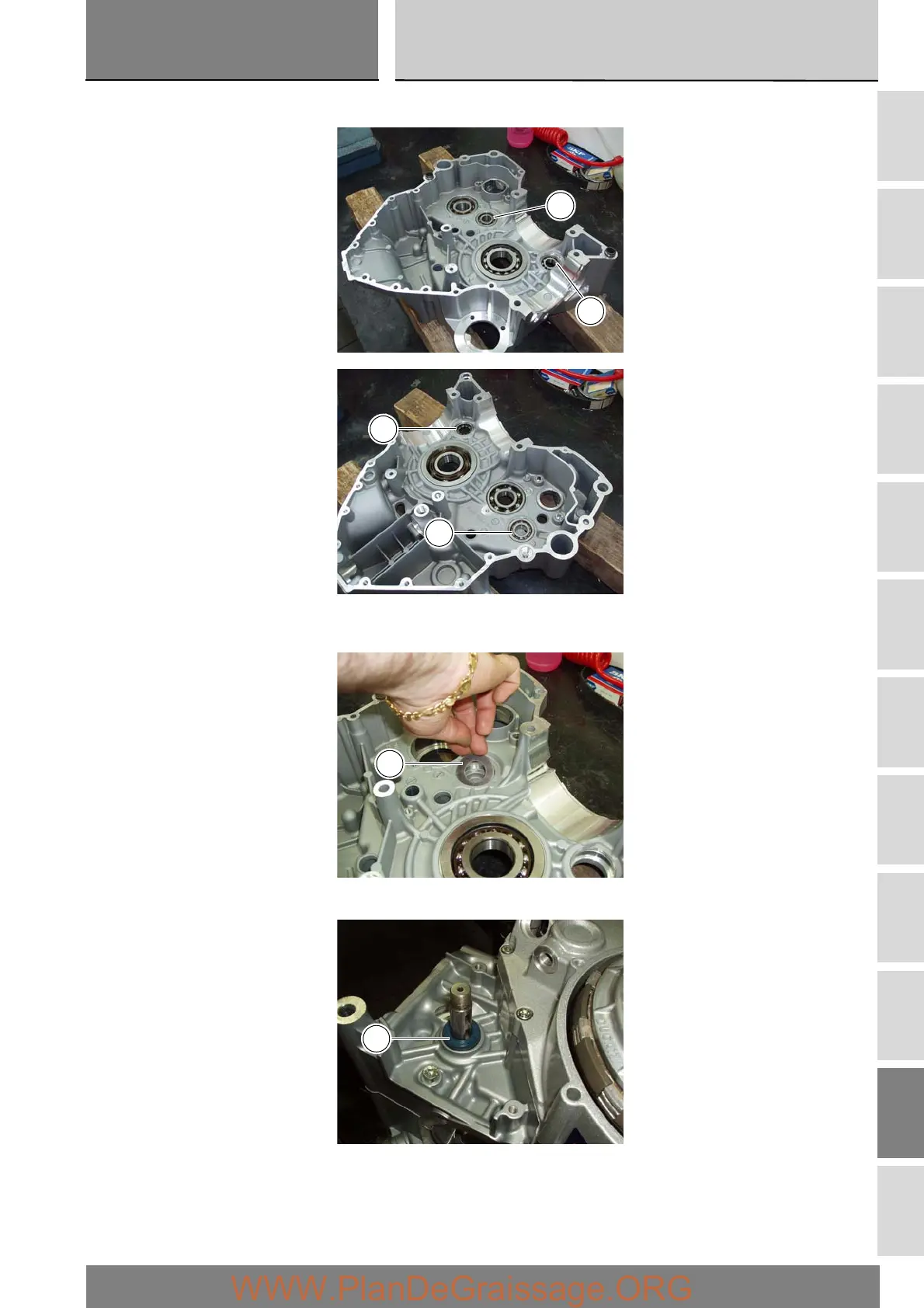

Renew the bearings (7) and (23) on the ends of the gearbox shafts and timing belt driveshaft bearings (4) and (15).
Take care not to lose the shim (6) interposed between the bearing (7) on the end of the gearbox input shaft and the chain side
crankcase half.
The oil seal (14) on the external side of the roller bearing (15) must be renewed at each engine overhaul.
4
7
15
23
6
14
