section
N 9.3
2271098/1098S - M.Y. 2007 - edition 00
Engine

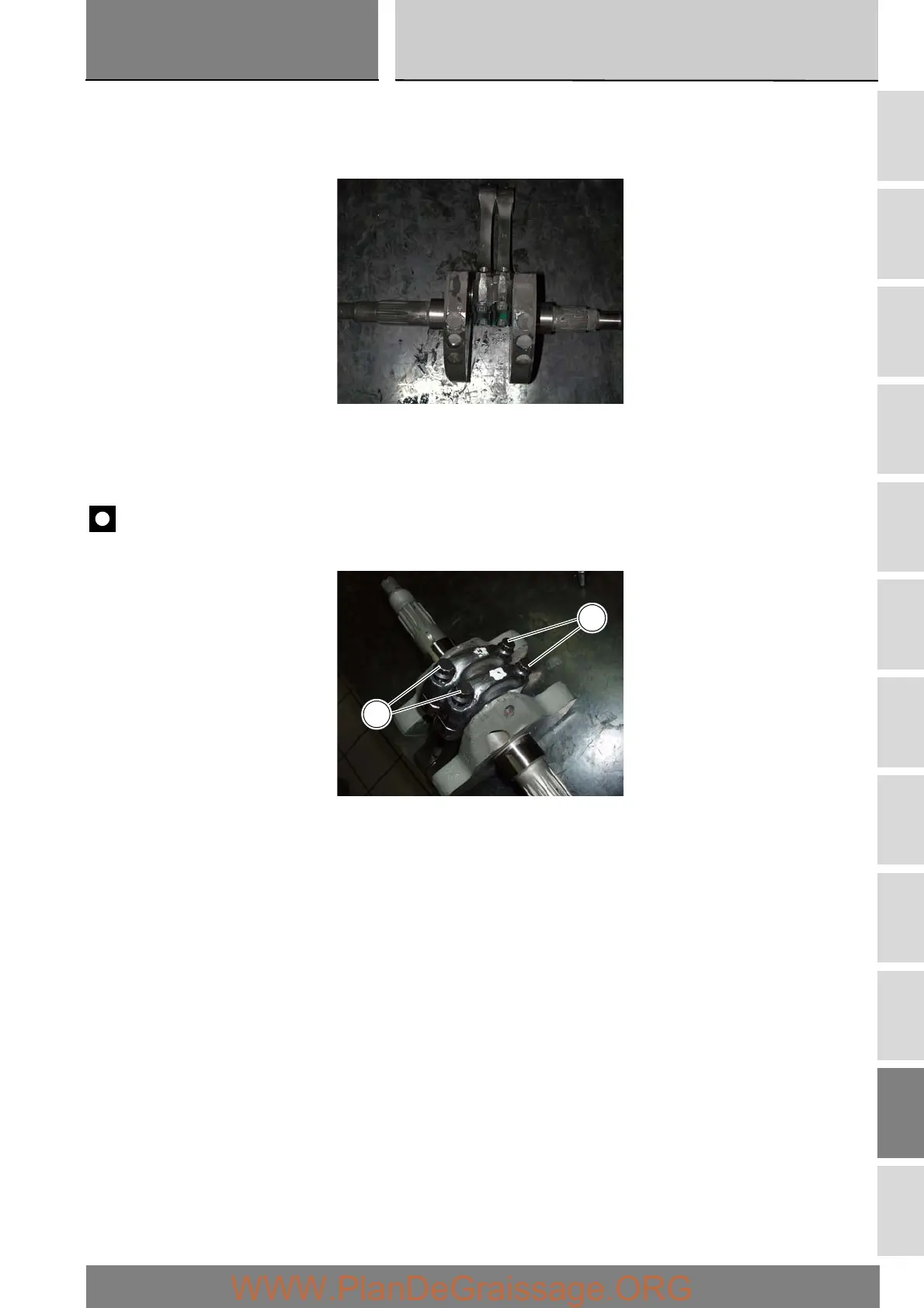

Fit the spacer of the tool 88713.2878 between the connecting rods and take up residual axial play with the fork feeler gauge
part no. 88713.2878 which is available in the following thicknesses:
0.1 mm - 0.2 mm - 0.3 mm.
Temporarily fit the gudgeon pin to align the connecting rods, and then tighten the bolts.
Tighten the bolts (1) with a torque wrench and angle reading (degree wheel) in accordance with the procedure described below
(observe the same tightening sequence at each step as that of the previous step):
1 first torque each bolt to a value of 20 Nm;
2 now carry out a second tightening stage applying a torque of 35 Nm on each bolt;
3 now torque each bolt, reading the angle of rotation, to 85 Nm, checking that the final angle is between 55° and 90°.
Important
If the final angle is less than 55° or greater than 90°, repeat the procedure using two new bolts.
1
1
