section
N 9.3
228 1098/1098S - M.Y. 2007 - edition 00
Engine

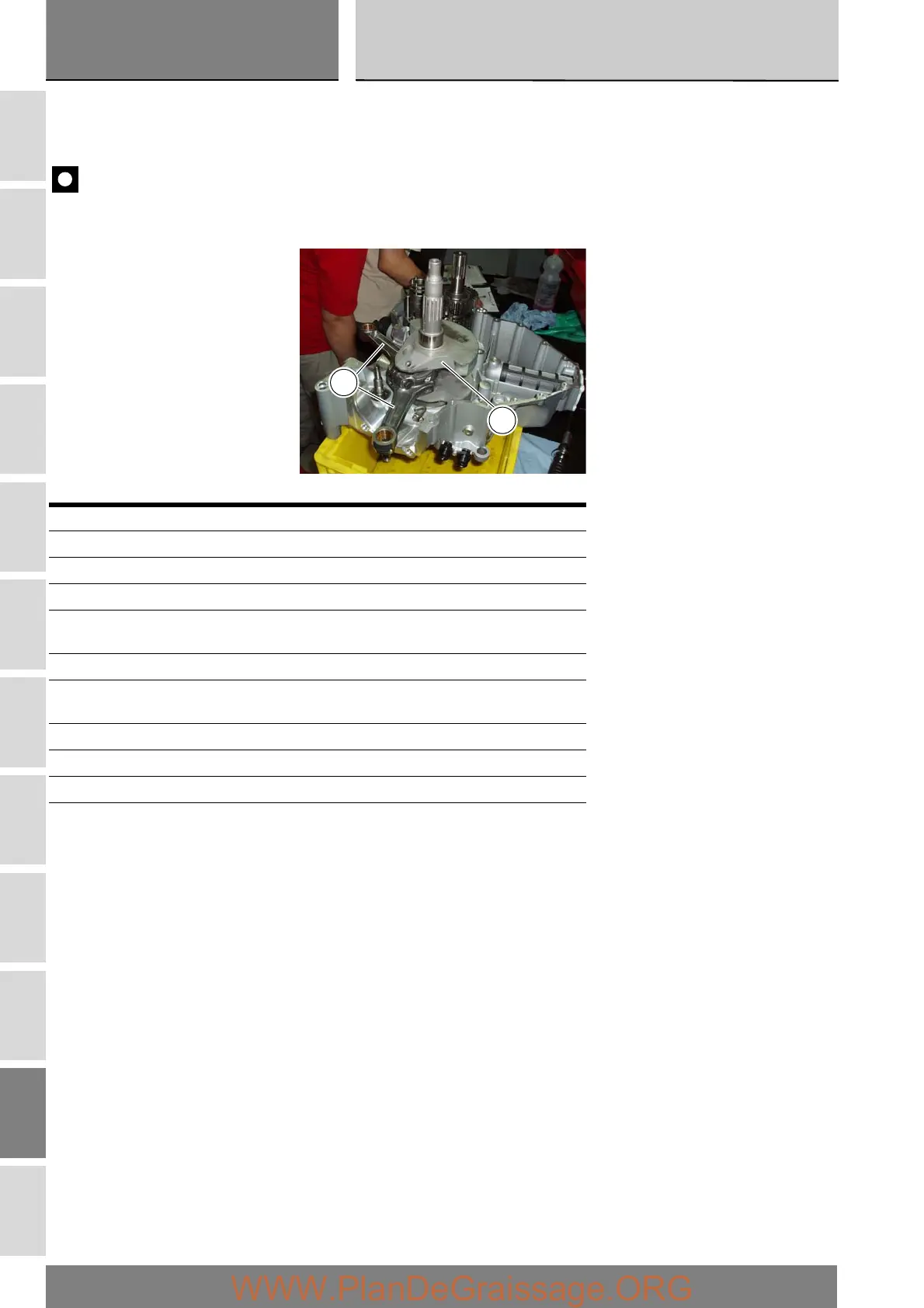

Refitting the connecting rods.
Install the connecting rod assembly (7) and (2) in the crankcase, carry out the shimming and crankcase reassembly procedure as
described in Sect. N 9.2.
Important
Make sure that the connecting rods (2) are correctly positioned in the respective cylinder seats. Incorrect positioning of the
connecting rods at this stage will inevitably lead to the need to re-open the crankcase.
Operation Section reference
Refit the right-hand crankcase cover N 6.2
Refit the clutch assembly N 6.1
Refit the engine starter system P 3
Refit the left-hand crankcase cover and
alternator assembly
N8
Refit the cylinder barrel/piston assemblies N 5
Refit the cylinder head assemblies and the
timing parts
N4.2
Refit the cooling system N 3
Refit the lubrication system N 2.1
Install the engine in the frame N 1
Refit the right-hand crankcase cover N 6.2
2
7
