section
P 2
50 1098/1098S - M.Y. 2007 - edition 00
Electric system

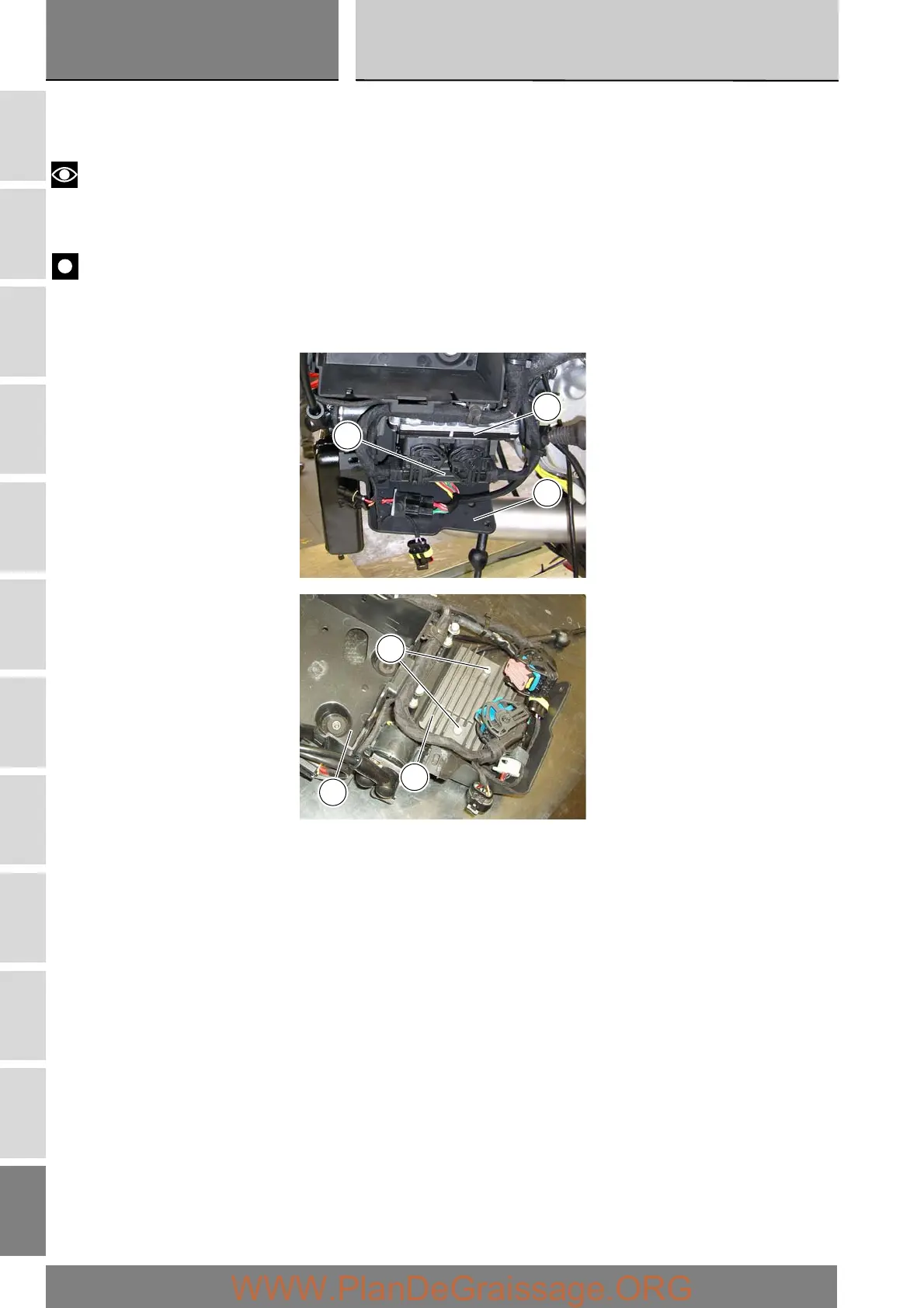

Refitting the regulator
Fit the regulator to the battery support (3).
Secure it with the screws (1) and tighten to the specified torque (Sect. C 3).
Notes
For the correct positioning of the regulator wiring, follow the indications given in the plates in the chapter “Routing of wiring on
the frame” in Sect. P 1.
Refit the ECU (4) (Sect. M 3).
Important
Do not disconnect the battery cables when engine is running because this would cause irreparable damage to the regulator.
Refit the left-hand side fairing (Sect. E 2).
2
4
3
1
2
3
