section
P 2
511098/1098S - M.Y. 2007 - edition 00
Electric system

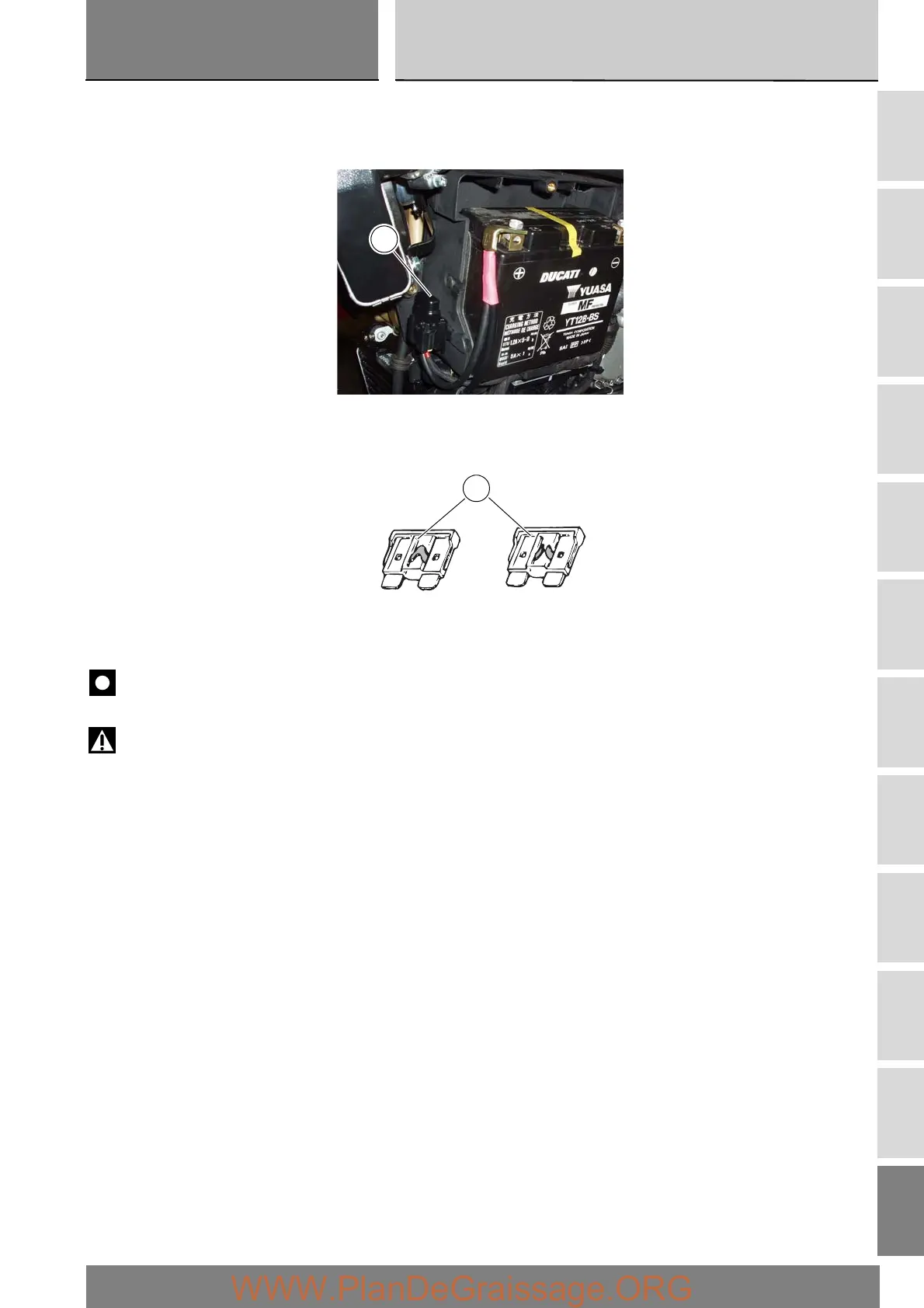

Regulator fuse
The 30 A, fuse located at the side of the battery protects the electronic regulator. To gain access to the fuse, remove the left-
hand fairing (Sect. E 2) and remove the protective cap (A).
A blown fuse can be identified by breakage of the inner filament (B).
Important
Switch the ignition key to OFF before replacing a fuse to avoid possible short circuits.
Warning
Never use a fuse with a rating other than the specified value. Failure to observe this rule may damage the electric system or even
cause fire.
A
B
In good condition Blown
