section
P 3
571098/1098S - M.Y. 2007 - edition 00
Electric system

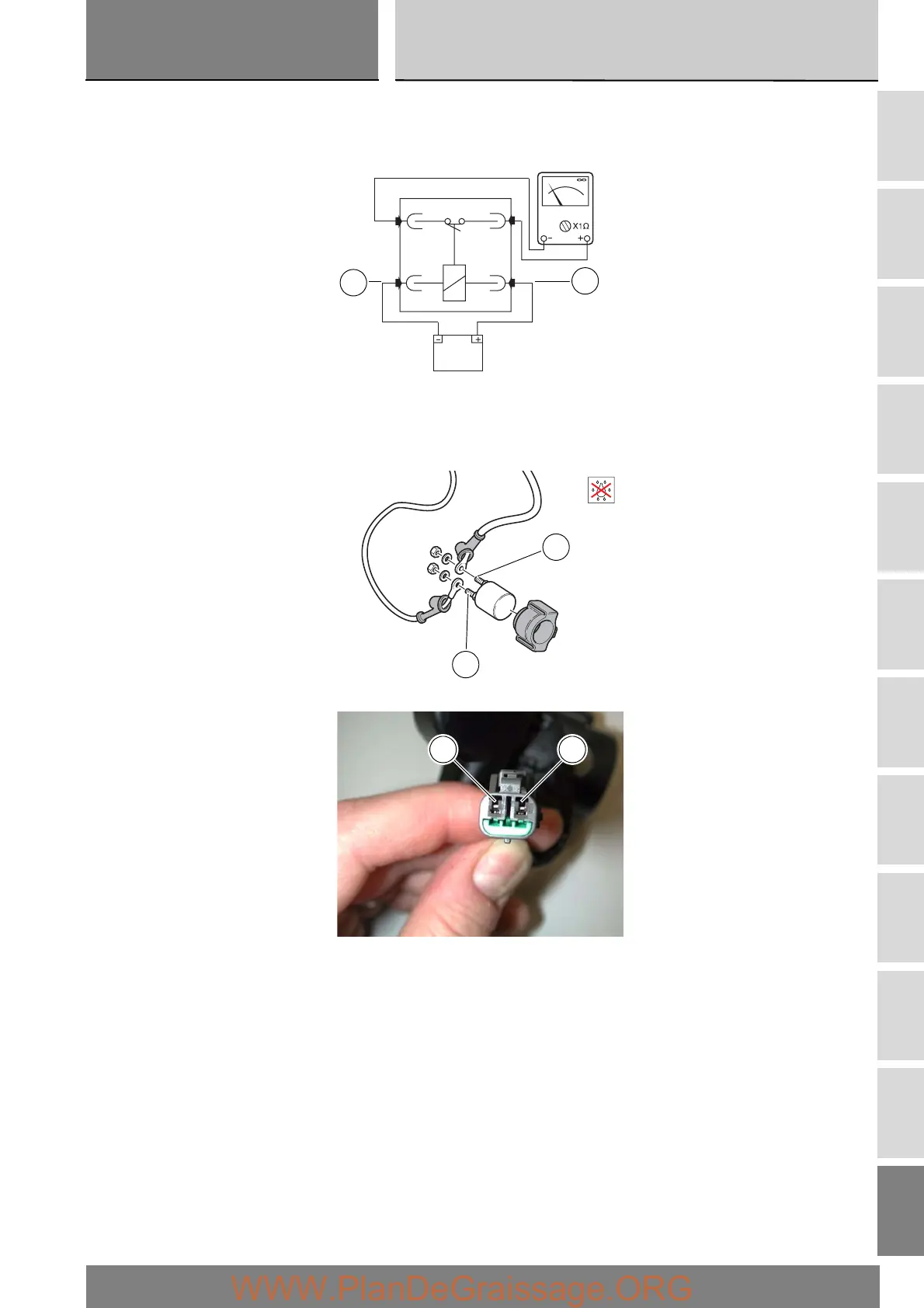

Checking operation of the starter contactor
Apply 12 V (battery voltage) across the positive terminal (A) and negative terminal (B) of the connector.
With a multimeter connected between the two poles (threaded studs (C) and (D)) of the contactor, check for electrical continuity
(Sect. P 9). If there is no electrical continuity, renew the contactor.
Refit the contactor by reversing the steps of the removal procedure.
On refitting, ensure that studs (C) and (D) are not oxidized; apply water repellent spray.
12V
A
B
D
C
+ -
