Electric system
Starter contactor
The contactor is elastically mounted to the battery support.
Disconnect the battery (Sect. P 2, Battery).

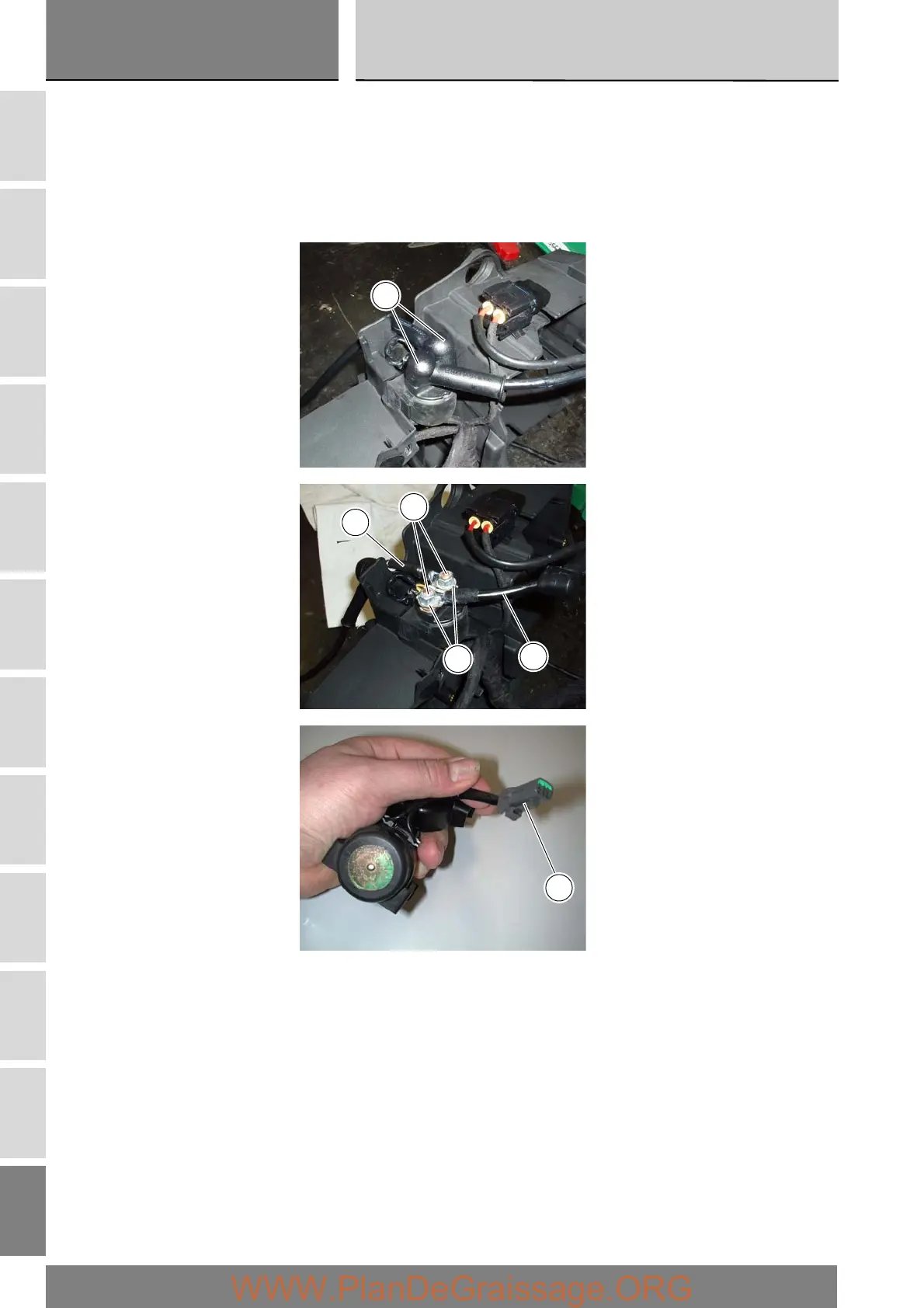

Remove the protective caps (A).
Unscrew the nuts (4), taking care to recover the spring washers (3).
Remove the starter motor-contactor cable (2). Remove the contactor-battery cable (1).
Disconnect starter motor connector (5) from the wiring (see tables in chapter “Routing of wiring on frame”, Sect. P 1).
A
4
2
3
1
5
