Electric system

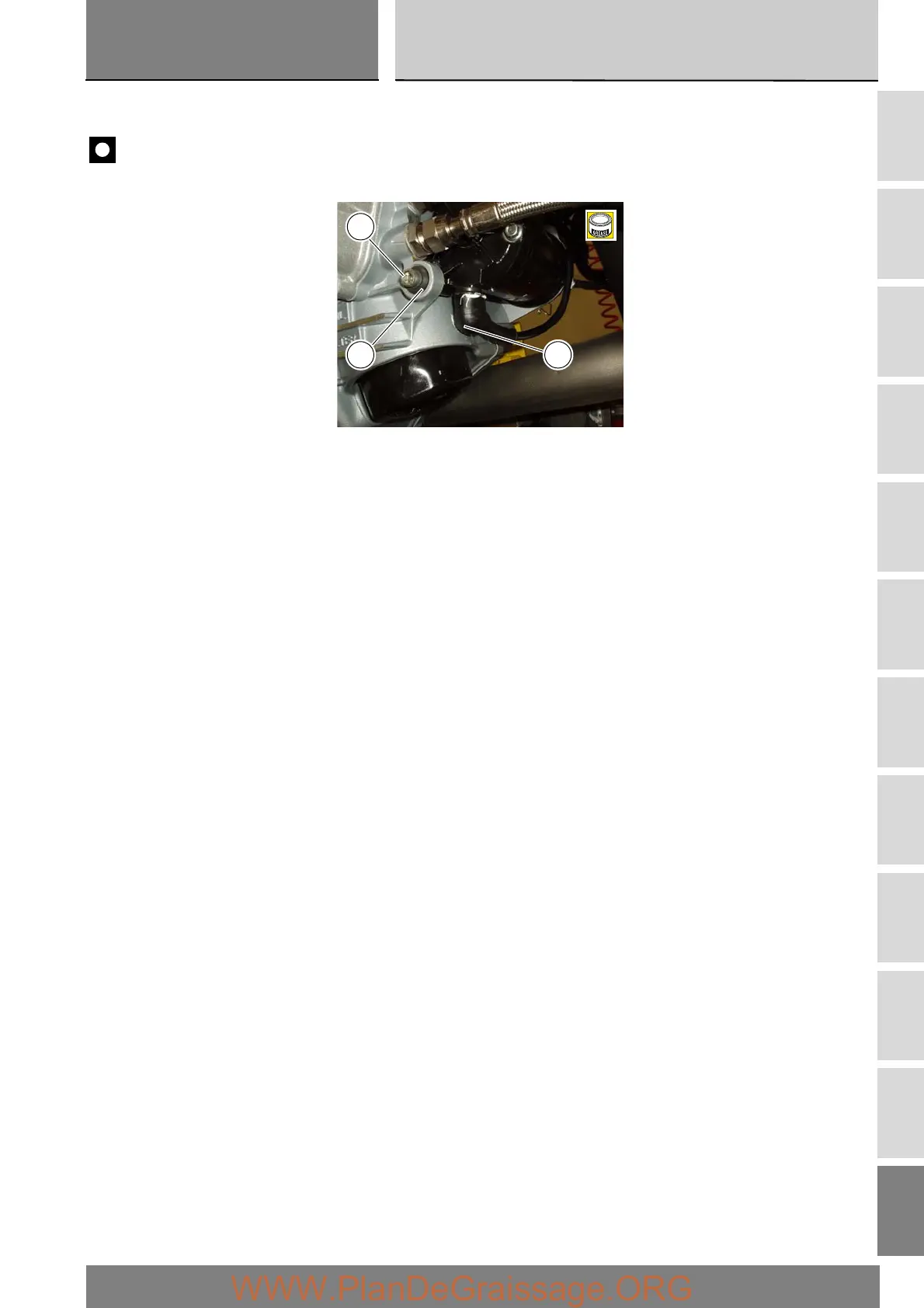

Locate the insert (2) (if removed) in the crankcase, fit the retaining screw (1) and tighten it to the specified torque (Sect. C 3).
Connect the starter motor/contactor cable (4).
Important
Fill the cap with protective grease before fitting it on the starter motor
If the starting gears assembly has been renewed, refit the starter motor idler gear and the timing gears (Sect. N 9.1, Refitting the
starter motor idler gear).
Refit the left-hand side crankcase cover (Sect. N 8, Refitting the left-hand crankcase cover).
Refit the side fairings (Sect. E 2).
