P 3
54 1098/1098S - M.Y. 2007 - edition 00
Electric system

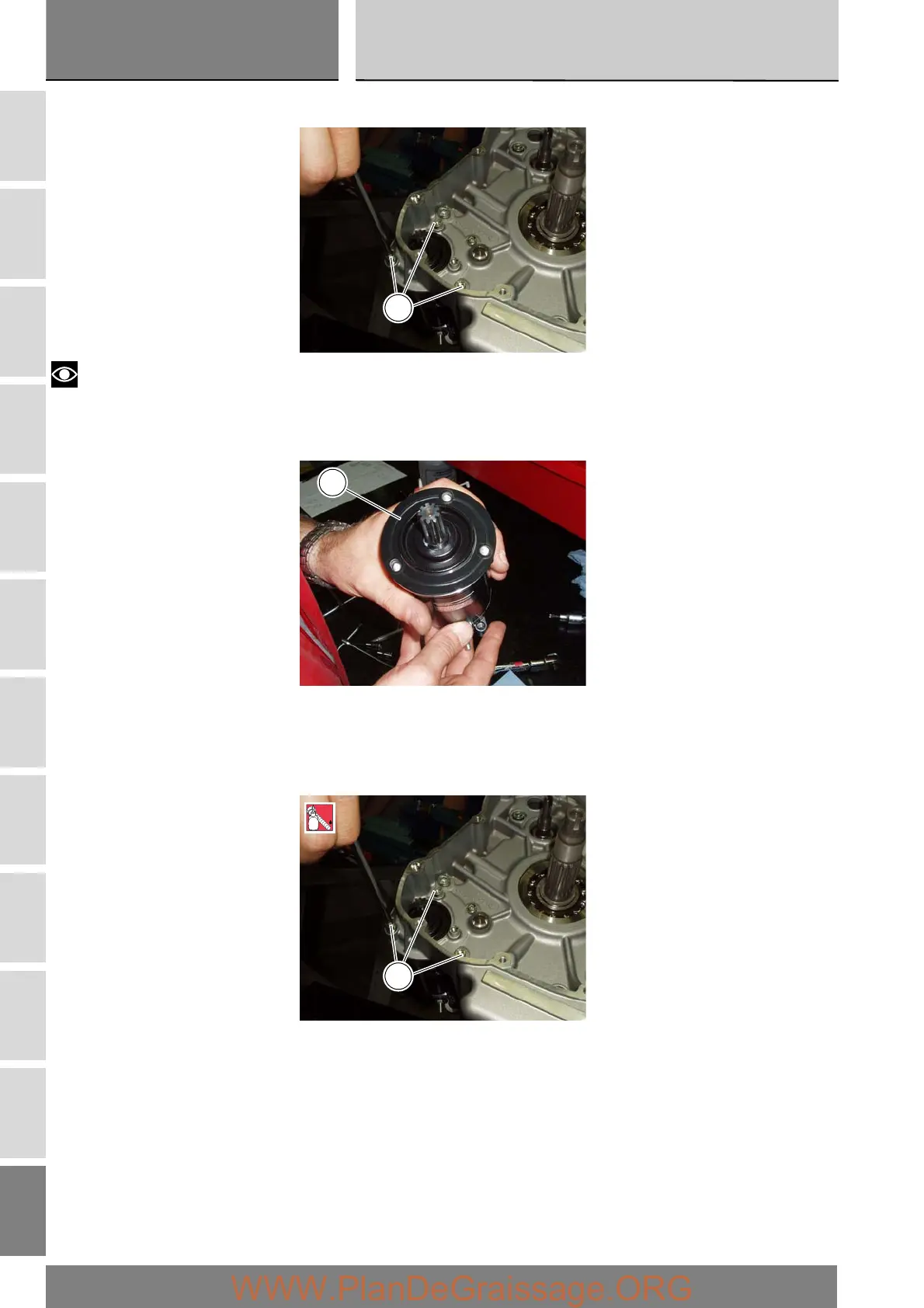

Unscrew the retaining bolts (3).
Notes
The starter motor retaining bolts are assembled with threadlocker
Slide out the starter motor and its gasket (5).
Refitting the starter motor
Inspect the condition of the gasket (5) and renew if necessary.
Place the gasket (5) and the starter motor on the crankcase and tighten the bolts (3) to the specified torque (Sect. C 3, Engine
torque settings.
3
5
3
1
LOCK
