631098/1098S - M.Y. 2007 - edition 00
Electric system

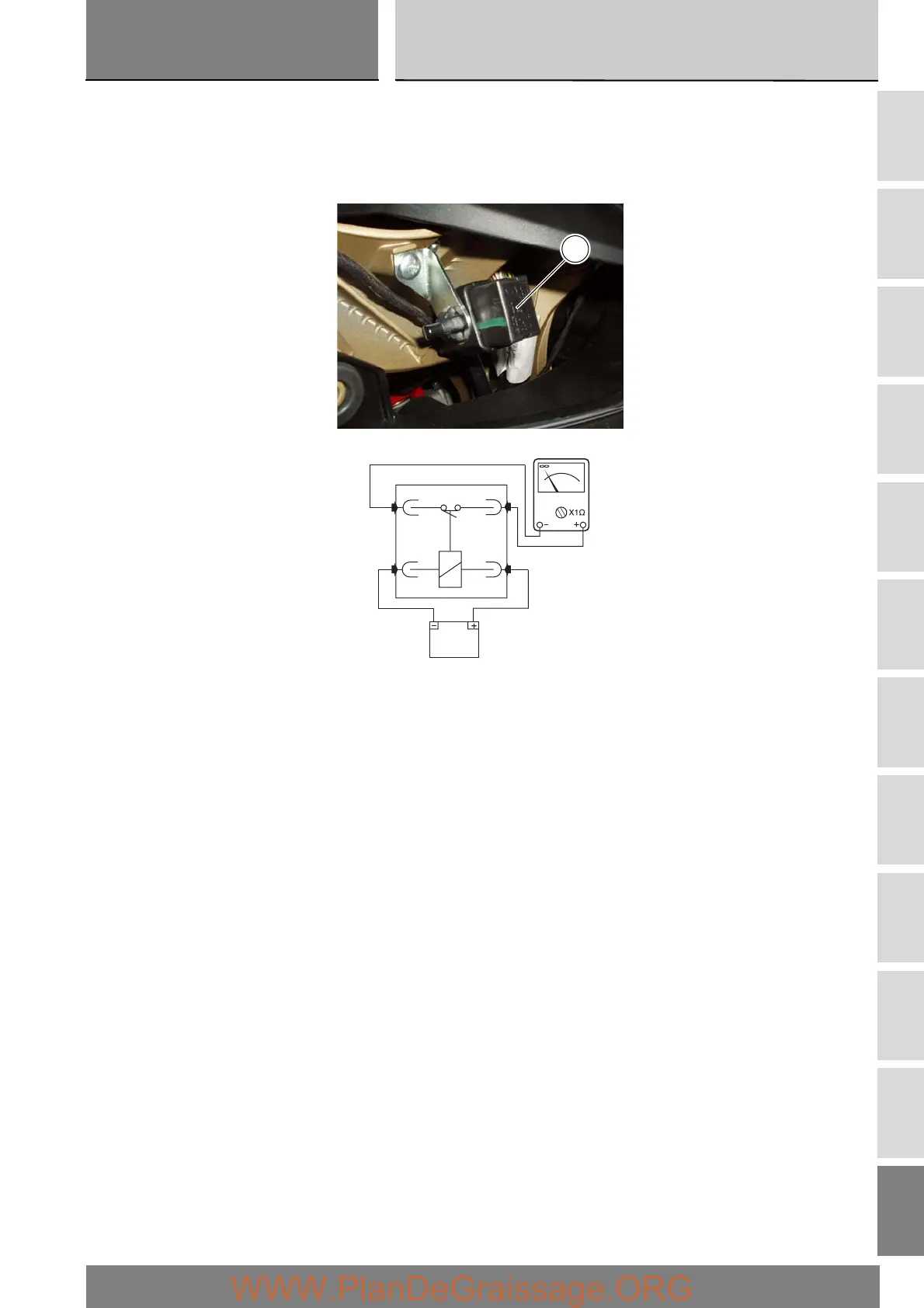

Checking operation of the high beam lights relay
Disconnect the relay (1) from the electrical system and apply 12 V (battery voltage) between contacts (113) and (133) (small
contacts): you should hear a click that confirms that the internal electromagnet has switched.
Connect a multimeter to contacts (121) and (122) (big contacts) to check for the full scale reading (analogue tester) or buzzer
(digital tester). If this does not occur, the part must be renewed.
1
12V
133
122 121
11 3
