Electric system
Checking the front and rear brake light switches, neutral light switch, oil pressure switch and clutch switch
Brake light switches

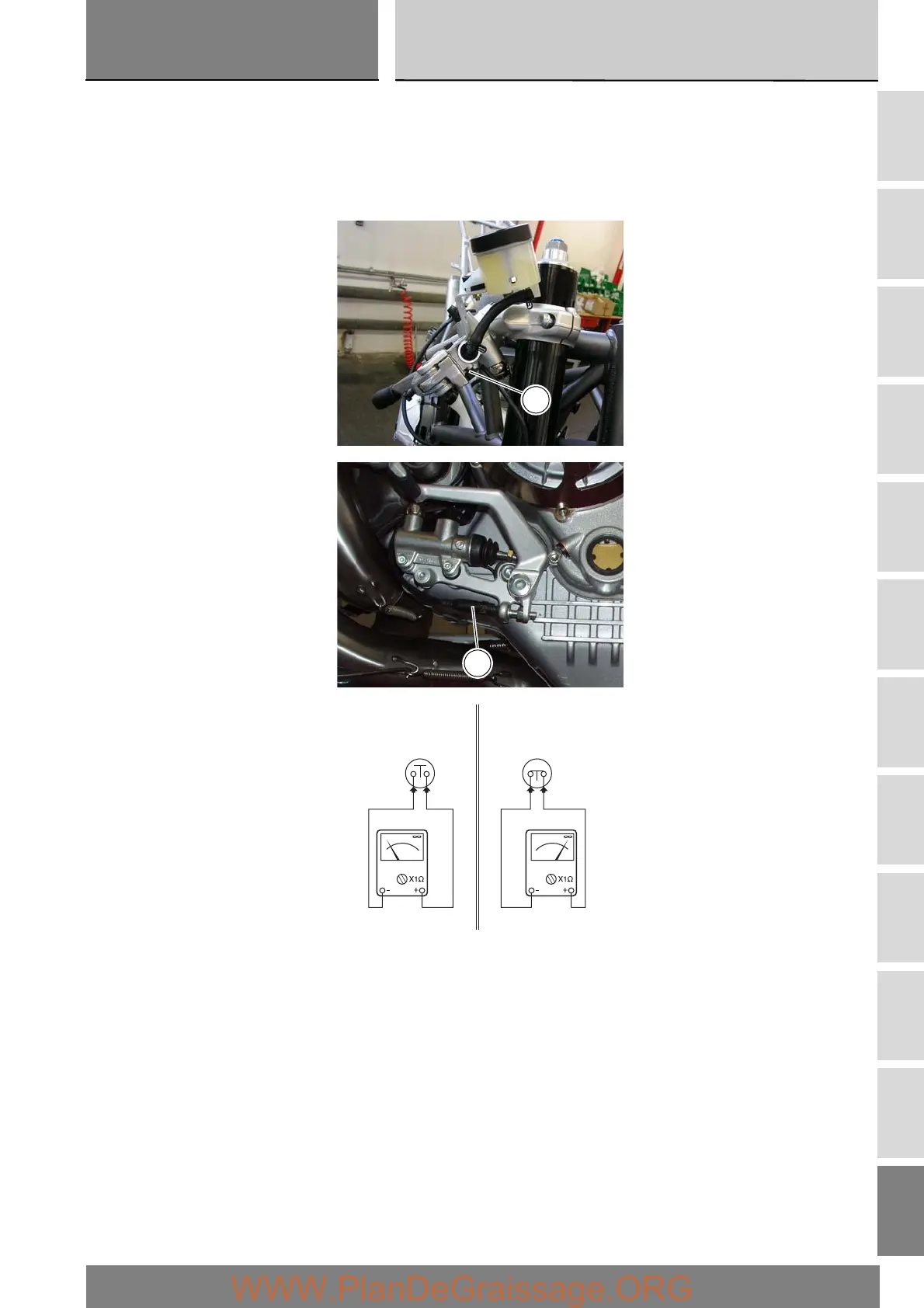

To check operation of the front (1) and rear (2) brake light switches, use a multimeter to check for electrical continuity (Pos.A)
between the terminals of the corresponding switch when the front or rear brake is applied (see Sect. P 9, Diagnostic instruments
on operation of the multimeter). When the brake is released, there must be no electrical continuity between the terminals of the
corresponding switch (Pos. B). If these tests fail to produce positive results, the part in question must be renewed.
1
2
Pos. B Pos. A
To Next Page
