P 7
831098/1098S - M.Y. 2007 - edition 00
Electric system

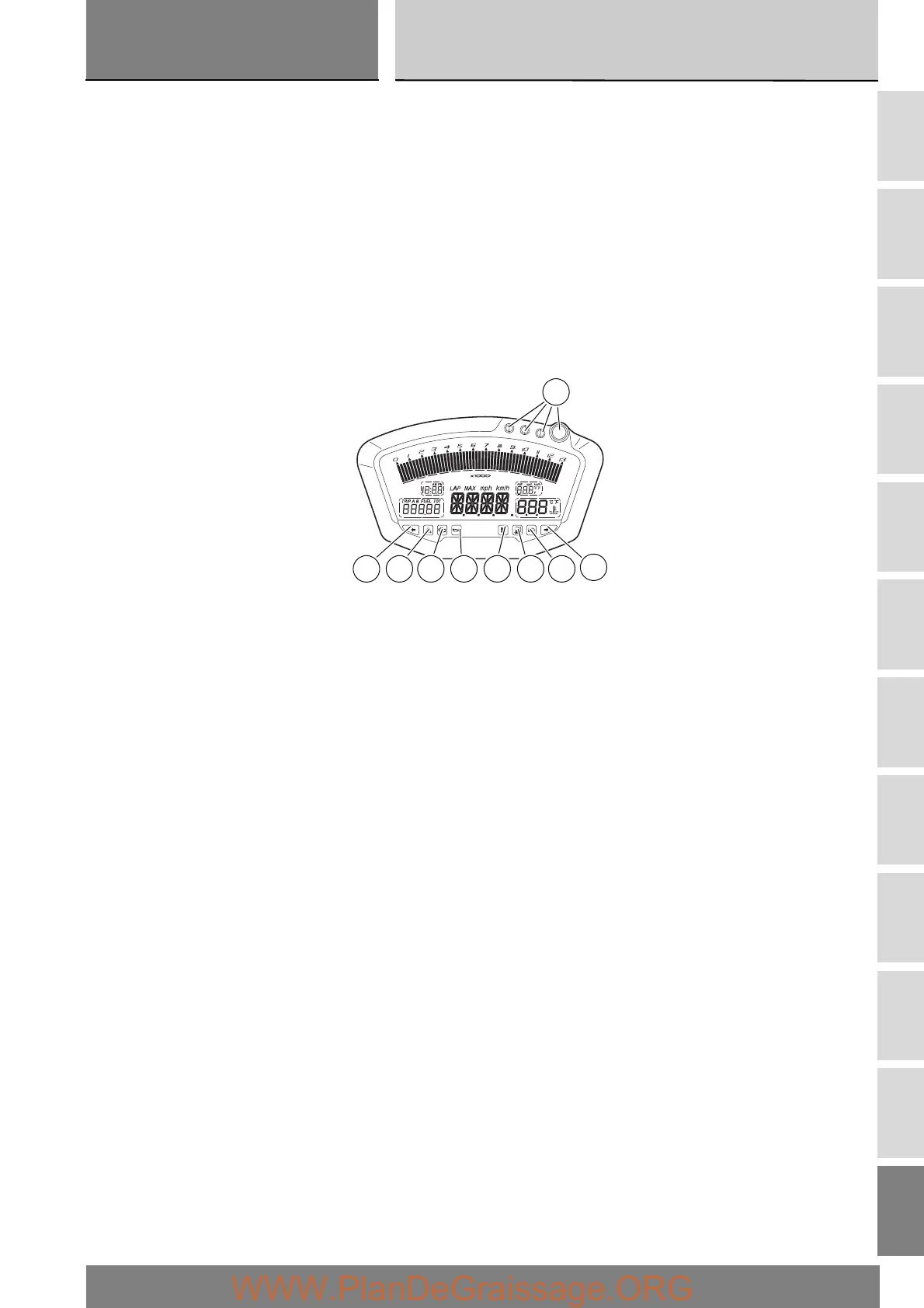

Indicator lights
The following indicator lights are mounted on the instrument panel.
3) Neutral light (green): illuminates when the gearbox is in neutral.
4) Low fuel light (yellow): illuminates when there are about 3 litres of fuel left in the tank.
5) Turn signal lights (green). illuminate and flash when the corresponding turn signal is in operation.
6) Engine oil pressure light (red): illuminates when the engine oil pressure is too low. This light should come on when the ignition
is switched to ON and normally goes out a few seconds after engine starts. It may come on briefly if the engine is very hot,
but should go out again as engine speed increases.
7) High beam warning light (blue): illuminates when the high beam headlight is on.
8) EOBD light (amber): this light is lit steadily if the engine ECU has detected errors and consequently activated the engine lock.
The light is also used as an indicator during the immobilizer override procedure using the throttle twistgrip. When no errors are
present, the light should come on when the ignition switch is set to ON and should go out after a few seconds (normally after
1.8 to 2 sec.).
9) “Diagnostic” light: illuminates when the motorcycle diagnostics detects a problem.
10) Limiter indicator lights
5 9 8 6 3 4 7
5
10
