Electric system
Display settings and functions

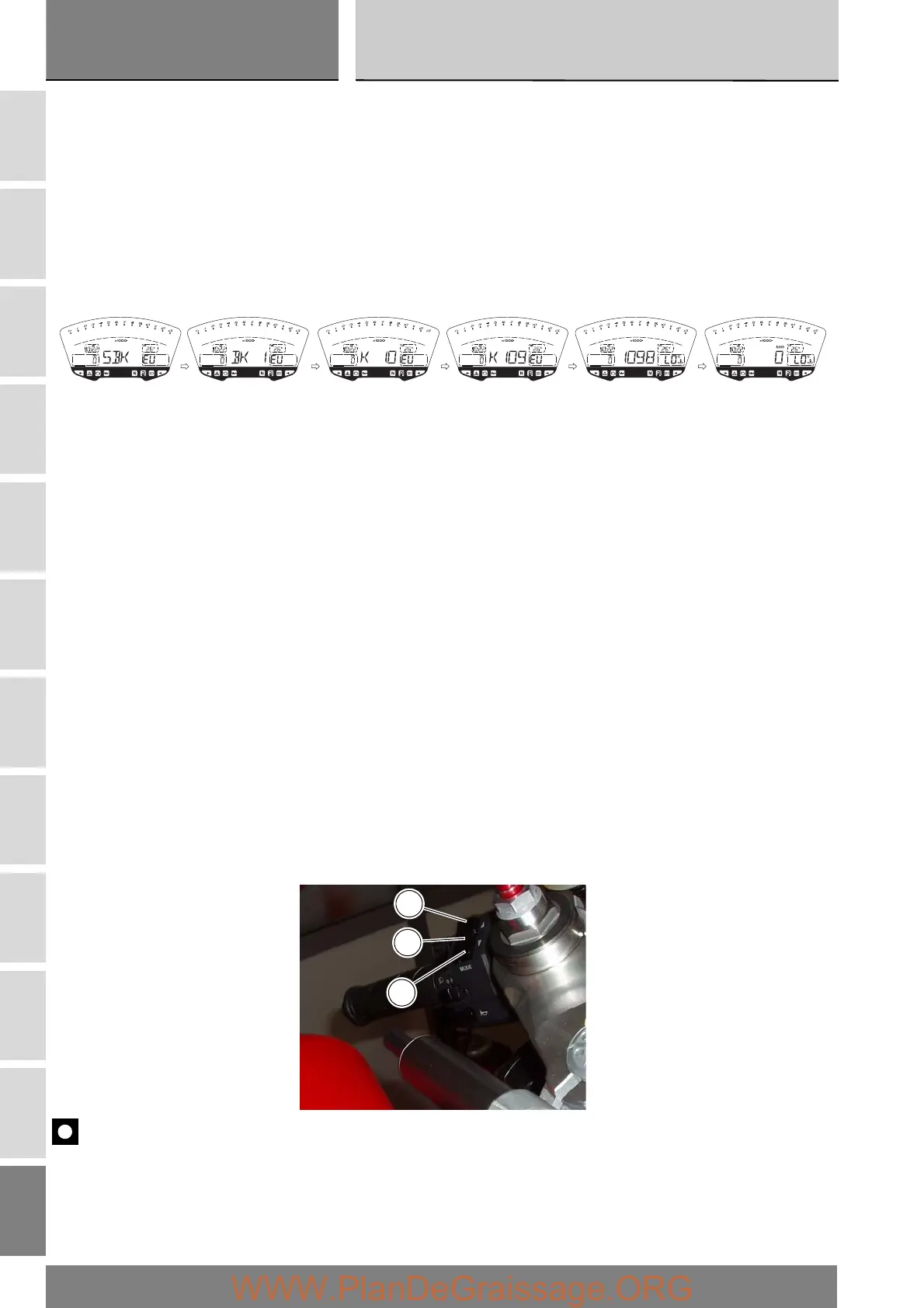

On switching on the power (key turned from OFF to ON), the instrument panel activates all the digits of the LCD for 1 second
and switches on the warning lights in sequence.
It then reverts to “normal” display mode and, in place of motorcycle speed, shows the model and, for 2 seconds, also the version
(EU, UK, USA, CND, FRA, JAP).
The model is displayed cyclically until the engine is started.
At Key-On the instrument panel always shows the following information (de-activating any previously activated functions):
Odometer
Air temperature
Clock
Speed
Coolant temperature
Engine rpm
At this point, with button (1) in position A “▲” it is possible to switch from the odometer display function to the following
functions:
TRIP A
TRIP B
TRIP FUEL (only if active)
before returning to Odometer.
If, however, you press button (1) in position B “▼” the system enters MENU mode and displays the following functions in
sequence:
Error (only if active)
BATT
RPM
LAP (OFF or ON)
LAP MEM
USB (OFF or ON)
Erase USB
TIME Set
CODE (only if active)
Important
This menu is active only if the speed of the motorcycle is less than 20 km/h. If this menu is on the display and the speed of the
motorcycle exceeds 20 km/h, the instrument automatically exits the menu and returns to the initial display. It is possible to exit
the menu at any time, however, by pressing the button (1) in position A “▲” for 3 seconds.
ENGINE OFF
ENGINE RUNNING
ENGINE OFF
ENGINE OFF
ENGINE OFF
ENGINE OFF
