Electric system
Removal of the immobilizer
Set the ignition switch to OFF.
Remove the right-hand side fairing (Sect. E 3, Removal of the fairings).

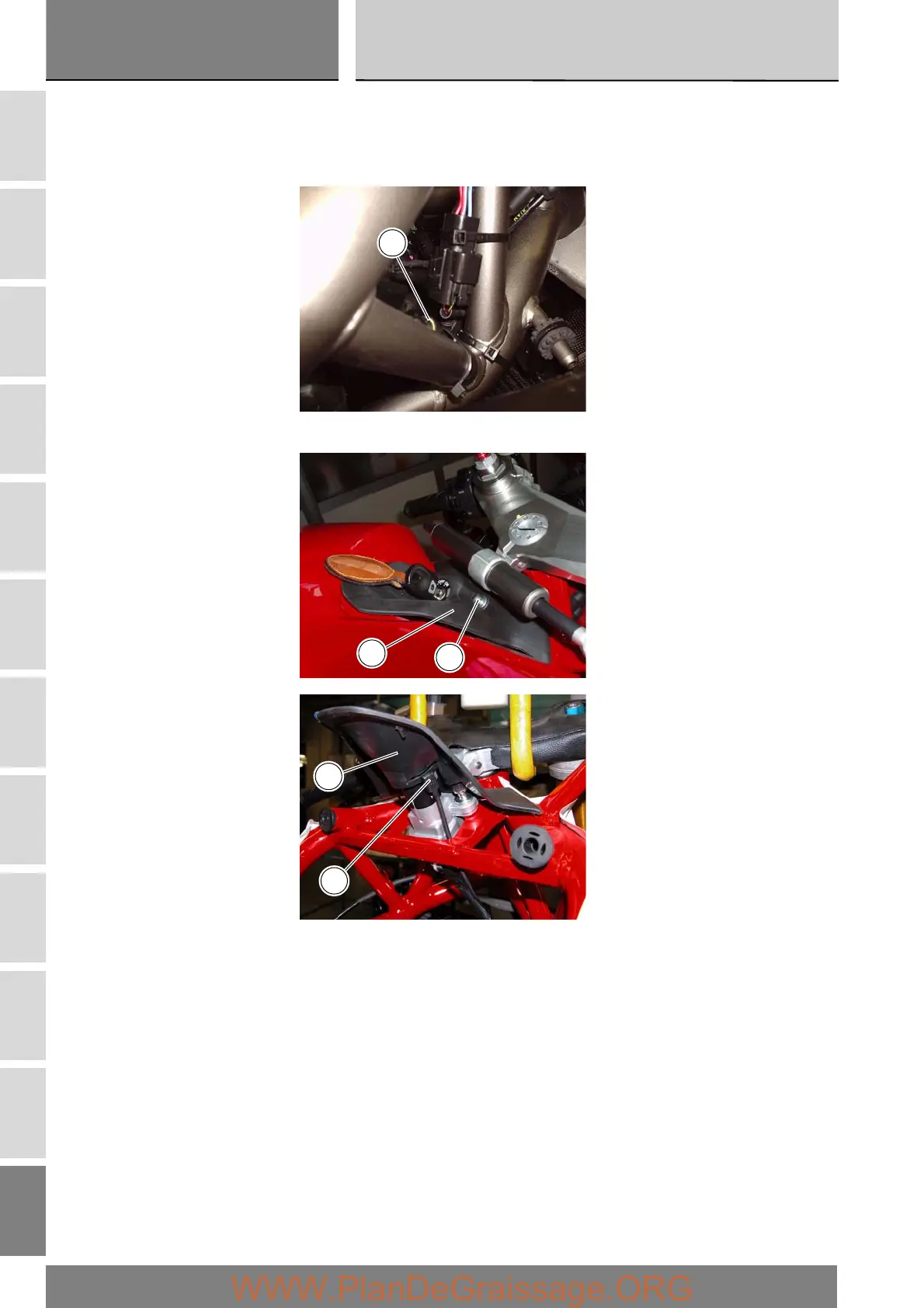

Disconnect the antenna wiring connector (A) from the main wiring loom.
Unscrew the two nuts (1) and remove the keyswitch cover (2) with the immobilizer antenna (3).
A
2
1
3
2
