Electric system

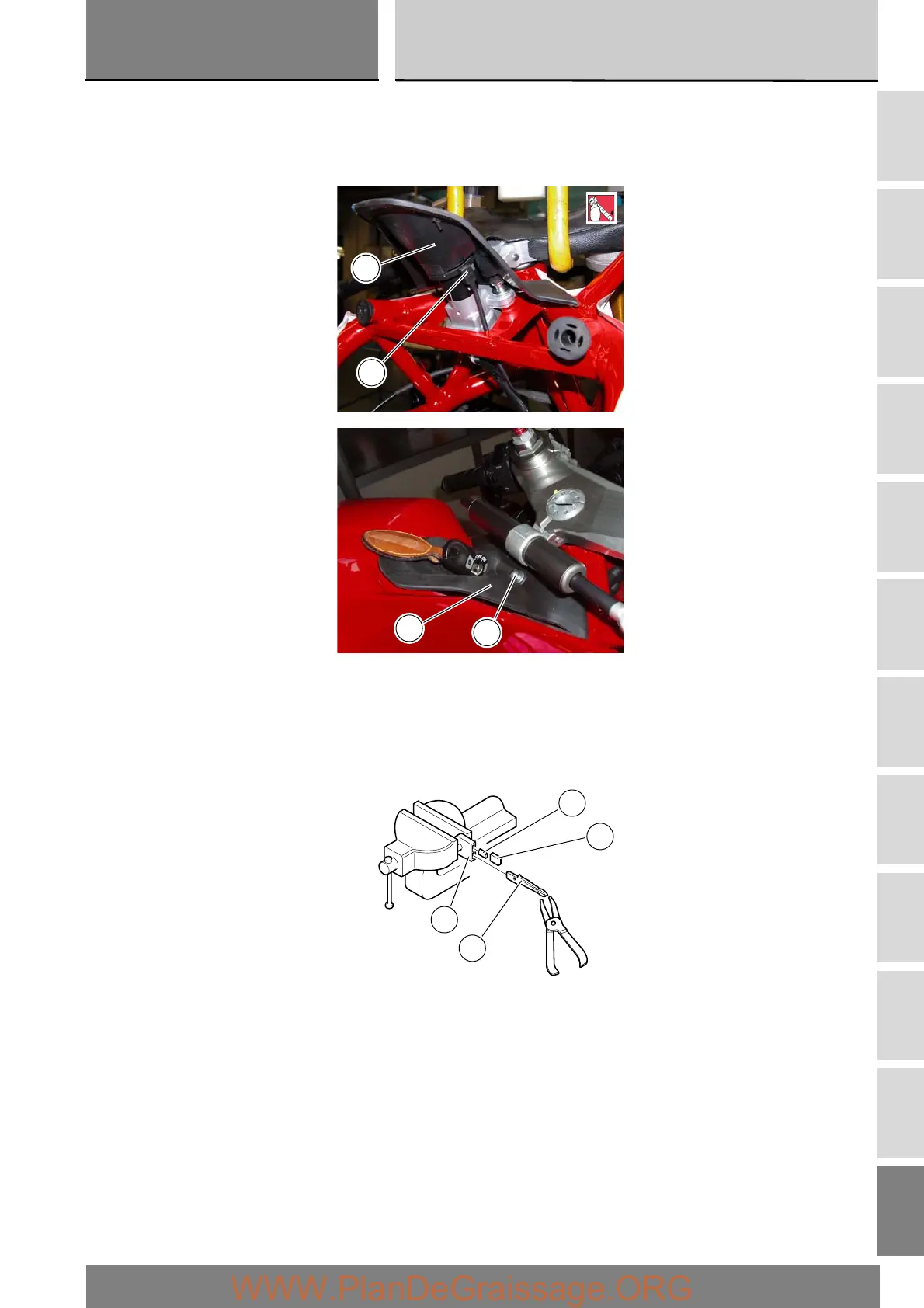

Refitting the immobilizer
Apply the recommended threadlocker to the inside of the cover (2) in two poinst of the seat of the immobilizer antenna (3) and
install the antenna (3) in the cover (2).
Position the cover to the keyswitch block and tighten the nuts (1) to the specified torque (Sect. C 3, Frame tightening torques).
Removal of the transponder from the key
Clamp the grip of the key (4) in a vice with protective jaw facings.
Using a pair of pliers, withdraw the key blade (5), remove the protections (6) and remove the transponder (7).
Replace the damaged parts and reassemble in reverse order.
