D 4
371098/1098S - M.Y. 2007 - edition 00
Use and maintenance

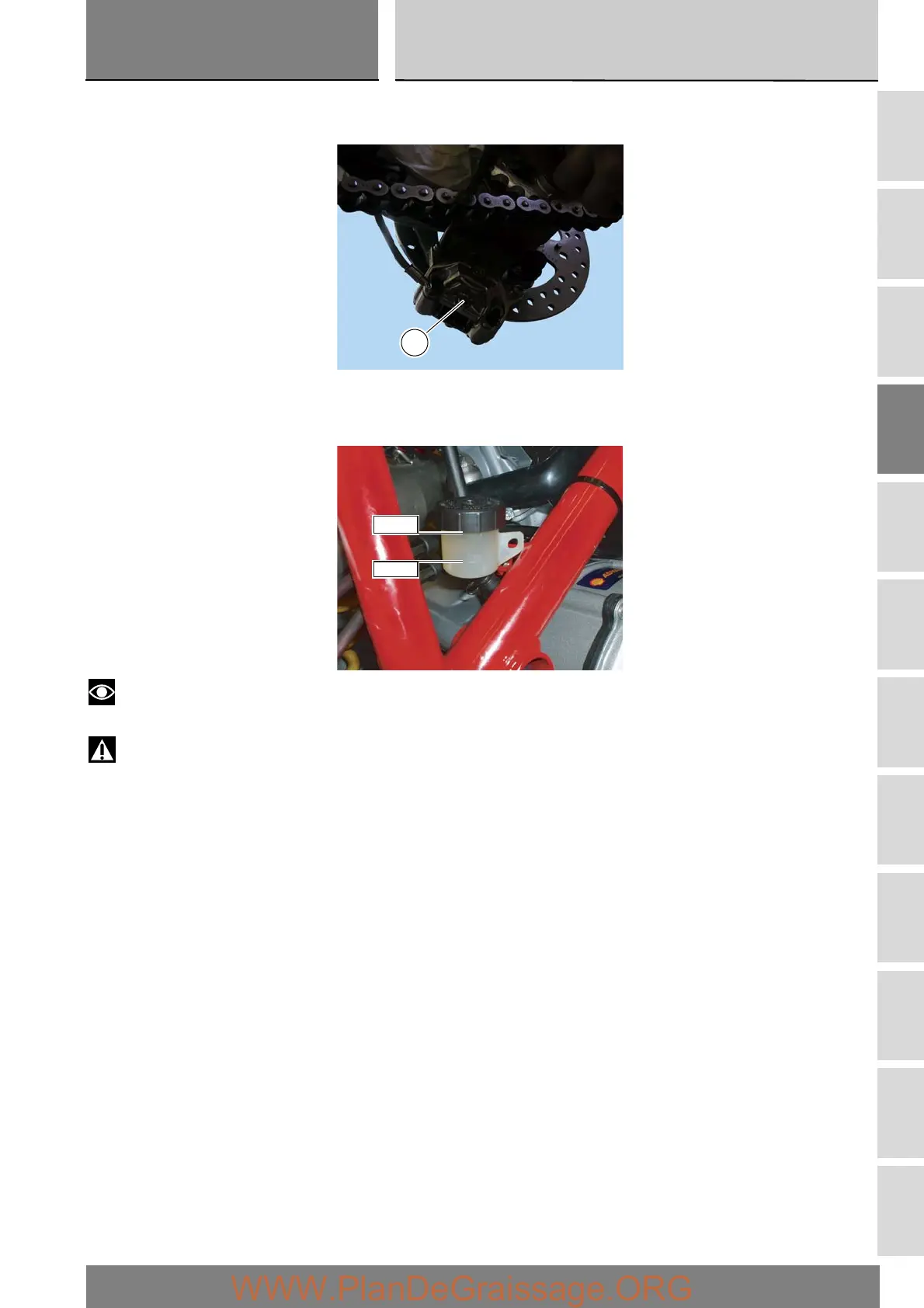

Insert the new pads and clip (3). Fit the retaining pin (2) from the outer side and secure it with the safety clip (1), positioning the
lip (A) so that it faces the wheel.
Operate the brake pedal repeatedly so that the pads are bedded in against the disc by the force of the brake fluid.
Check that the brake fluid level in the reservoir (4) is between the MIN and MAX marks. If not, unscrew the reservoir cover (4)
and top up with the recommended brake fluid.
Notes
If it proves difficult to change the brake pads, first remove the calipers (Sect. G 6).
Warning
As the brake calipers are components of vital importance to the safety of the motorcycle, refer to the instructions in Sect. G
“Wheels - Suspensions - Brakes”, and in particular, on reassembly, take care to tighten the caliper bolts to the specified torque
(Sect. C 3).
2
MAX
MIN
