3. Connections
This section describes the connections and settings for specific usages. The descriptions on the
settings are based on the factory default. If you are not sure of your current settings, you can reset
the unit to the default setting by selecting DEFAULT in the EVENT LOAD menu described in the
section 8-1 “EVENT LOAD”.

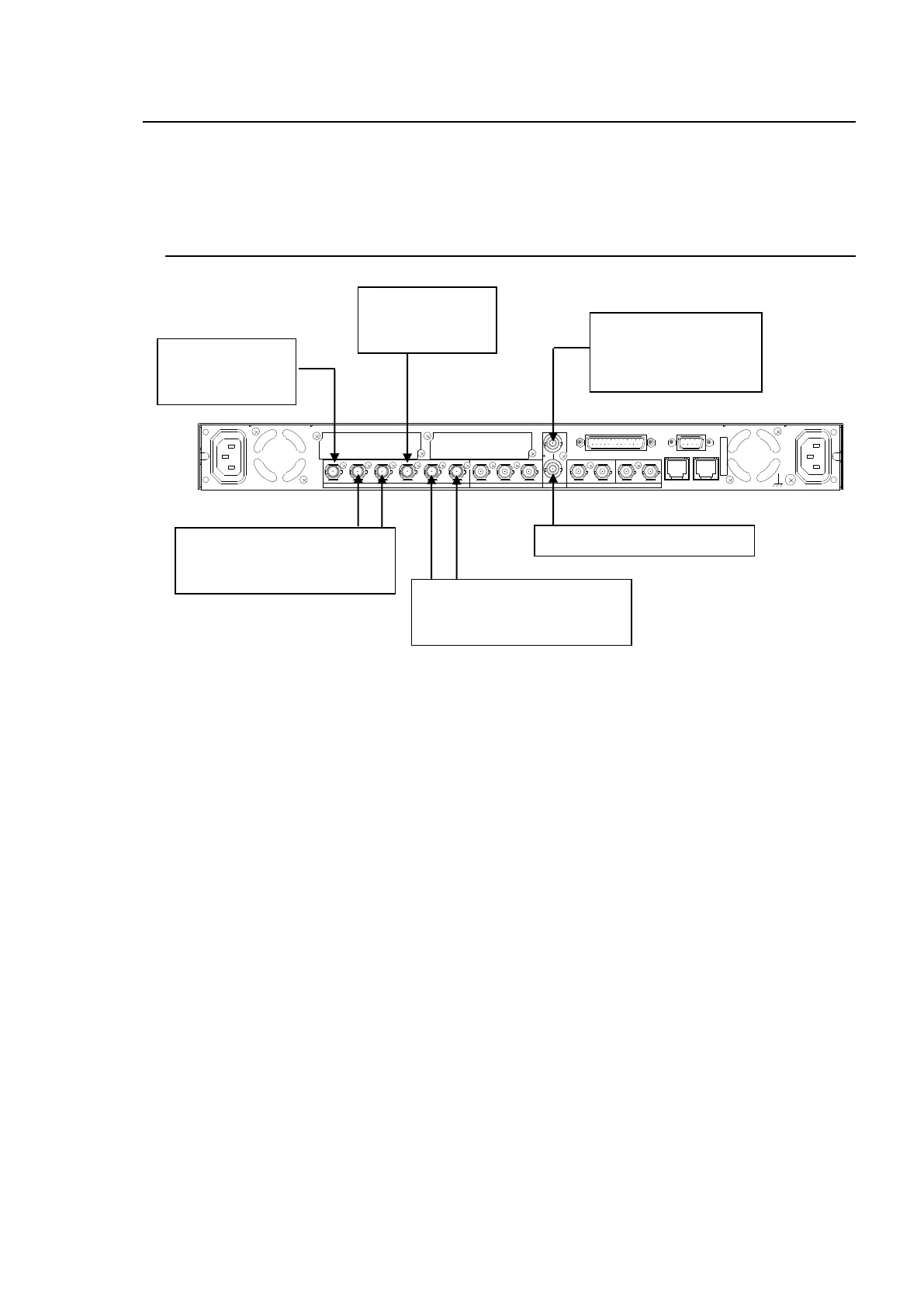

3-1. For 2-Channel Frame Synchronizer Use
Settings that need to be checked:
Set FS1 INSEL to SDI1 in the FS INPUT SELECT menu (see section 5-6-1).
Set FS2 INSEL to SDI2 in theFS INPUT SELECT menu (see section 5-6-1).
Set SDI1/2 to FS1 in the OUTPUT ASSIGN menu (see section 5-7-1).
Set SDI3/4 to FS2 in the OUTPUT ASSIGN menu (see section 5-7-1).
Adjust phase and position to match the reference signal in HD PHASE SET to VIDEO
POSITION menus if necessary (see sections 5-9-2 to 5-9-4).
AC100 - 240V 50/60 Hz I N 1
FAN2
SER. NO.
LAN2LAN1
REMOTE
DIGITAL AUDIO IN / OUT
7 / 85 / 63 / 41 / 2
ANALOG AUDIO
GENLOCK IN
COMPOSITE
OUT2OUT1IN
B
OUT4OUT3IN2OUT2OUT1
SDI
IN1
A
FAN1
AC100 - 240V 50/60 Hz IN2
Terminate at 75 ohm if not used.
Reference signal
(BB or Tri-level sync signal
synchronized with the input
signal.)
Input an HD/SD-
SDI signal to SDI
IN1.
Outputs the SDI IN1 input signal
synchronized with the SDI OUT1
and 2 reference signal.
Outputs the SDI IN2 input signal
synchronized with the reference
signal from SDI OUT3 and 4.
Input an HD/SD-
SDI signal to SDI
IN2.
