16. FA-95AIO Option

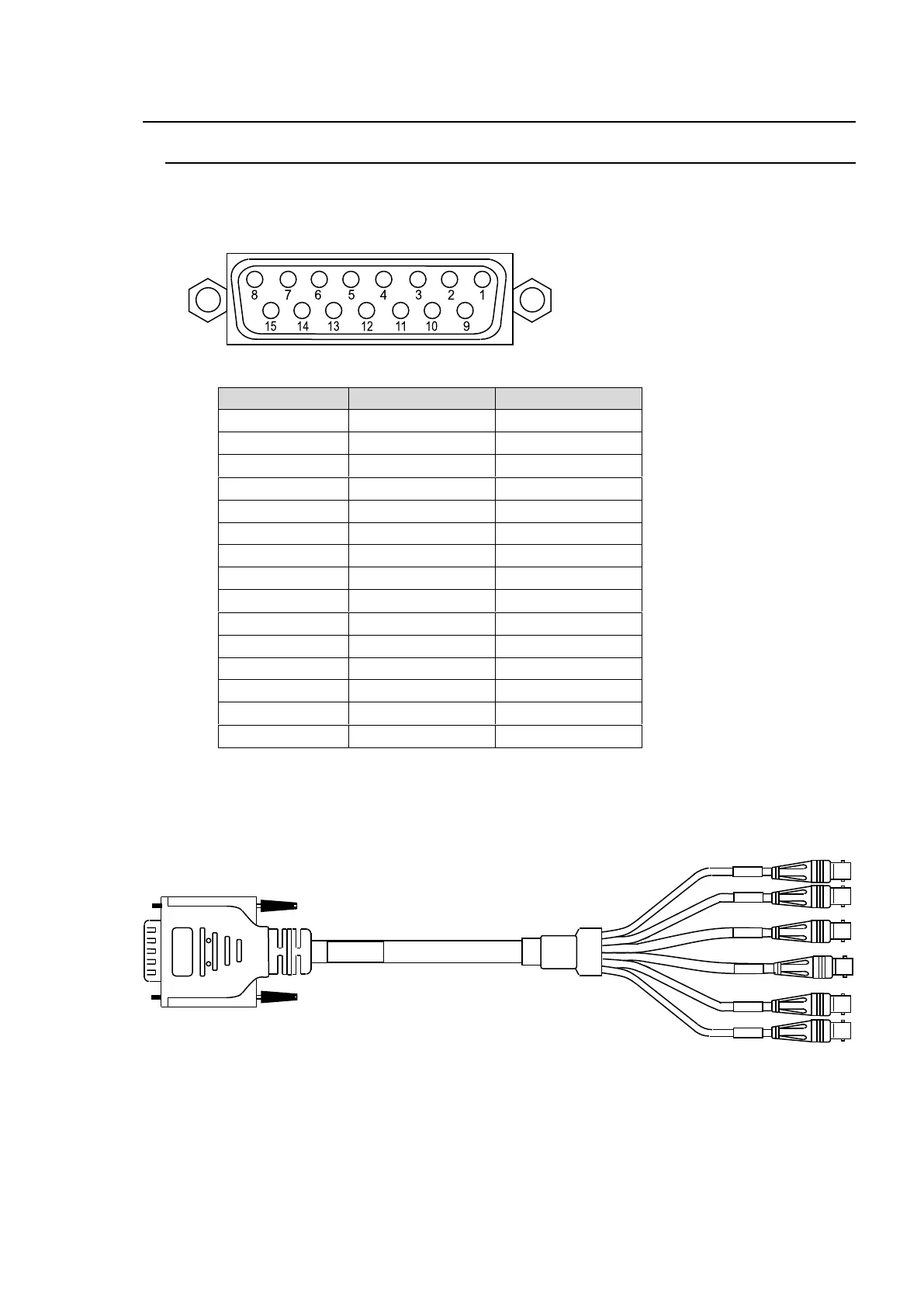

16-1. FA-95AIO Pin Assignments
Be sure to use the supplied FA-95AIO connection cable.
FA-95AIO Connector (15-pin D-sub female inch screws)
Pin Assignment (15-pin D-sub female)
Pin No.
Connector
Signal
1
Y/G IN
Y/G IN
2
Pb/B IN
Pb/B/C IN
3
Pr/R IN
Pr/R IN
4
GND
5
GND
6
Y/G OUT
Y/G OUT
7
Pb/B OUT
Pb/B/C OUT
8
Pr/R OUT
Pr/R OUT
9
GND
10
GND
11
GND
12
GND
13
GND
14
GND
15
GND
When BY-PASS is enabled, Y/G IN - Y/G OUT, Pb/B IN - Pb/B OUT, and Pr/R IN - Pr/R OUT are
connected.
FA-95AIO connection cable PC-3307-1
Pb/B IN
PC-3307-1
Y/G IN
Pr/R IN
Y/G OUT
Pb/B OUT
Pr/R OUT
