160

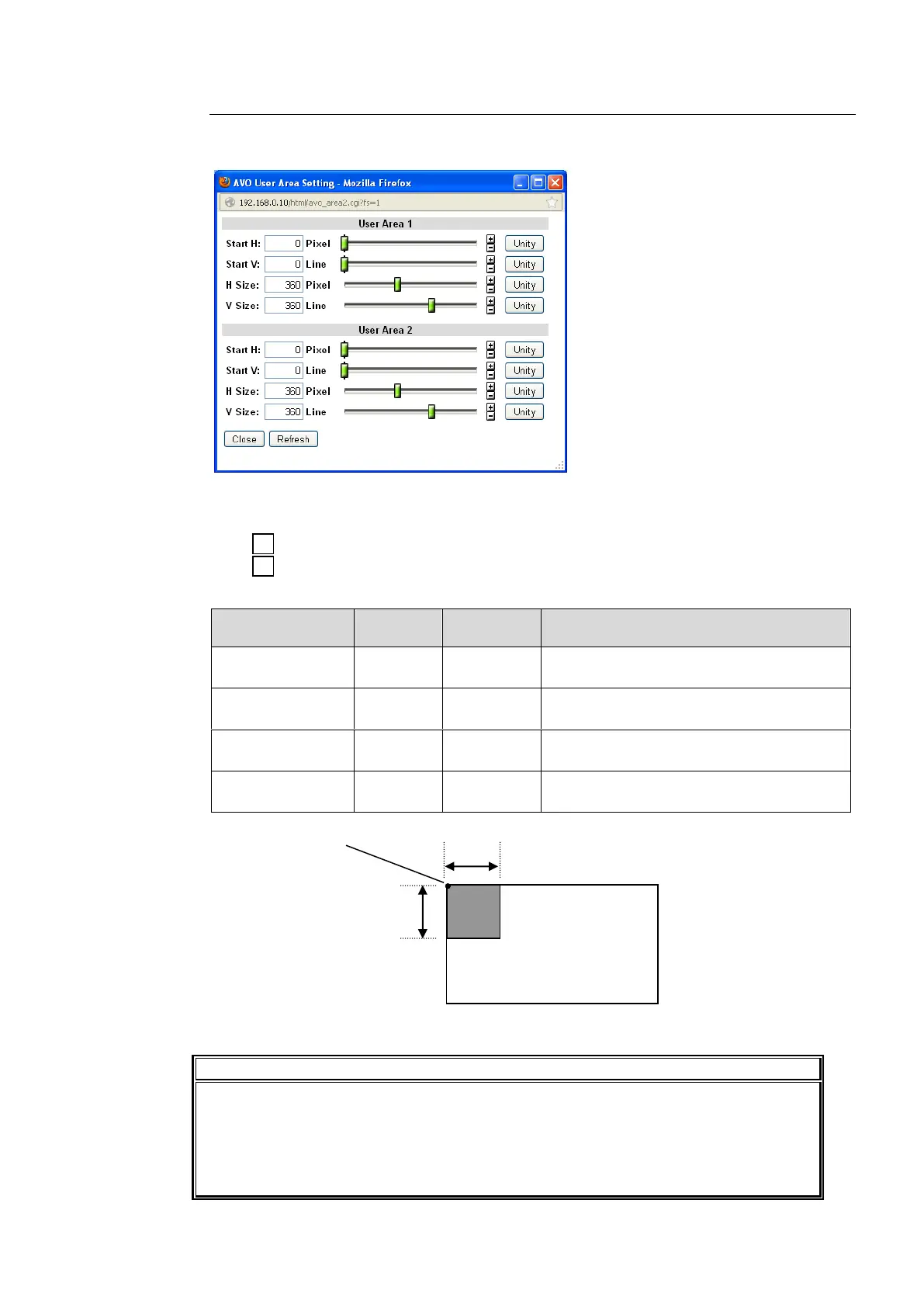

9-2-2-3. User Area 1, 2
Clicking Set Area of Sample Area on the AVO setting dialog box opens the User Area 1, 2
Setting dialog box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
To set the sample area, set the start point and the size.
Parameter
Default
Setting
range
Description
Start H
0 Pixel
Variable
(2Pixel)
Specifies the horizontal start point.
Start V
0 Line
Variable
(2Line)
Specifies the vertical start point.
H Size
360
Variable
(2Pixel)
Specifies the horizontal size (distance)
from the start point.
V Size
360
Variable
(2Line)
Specifies the vertical size (distance) from
the start point.
IMPORTANT
The sample area should be set within the effective lines and pixels. Otherwise, the
sample area will automatically revert to their default values. Be particularly careful in
the following cases.
- When the video format is changed to SDTV after the sample area has been set.
- When the sample area settings are changed by loading an event.
Sample
area
V SIZE
H SIZE
(START V , START H)
Default setting of sample area
in 1080/59.94i.
+
-
