9-6. Utility Settings

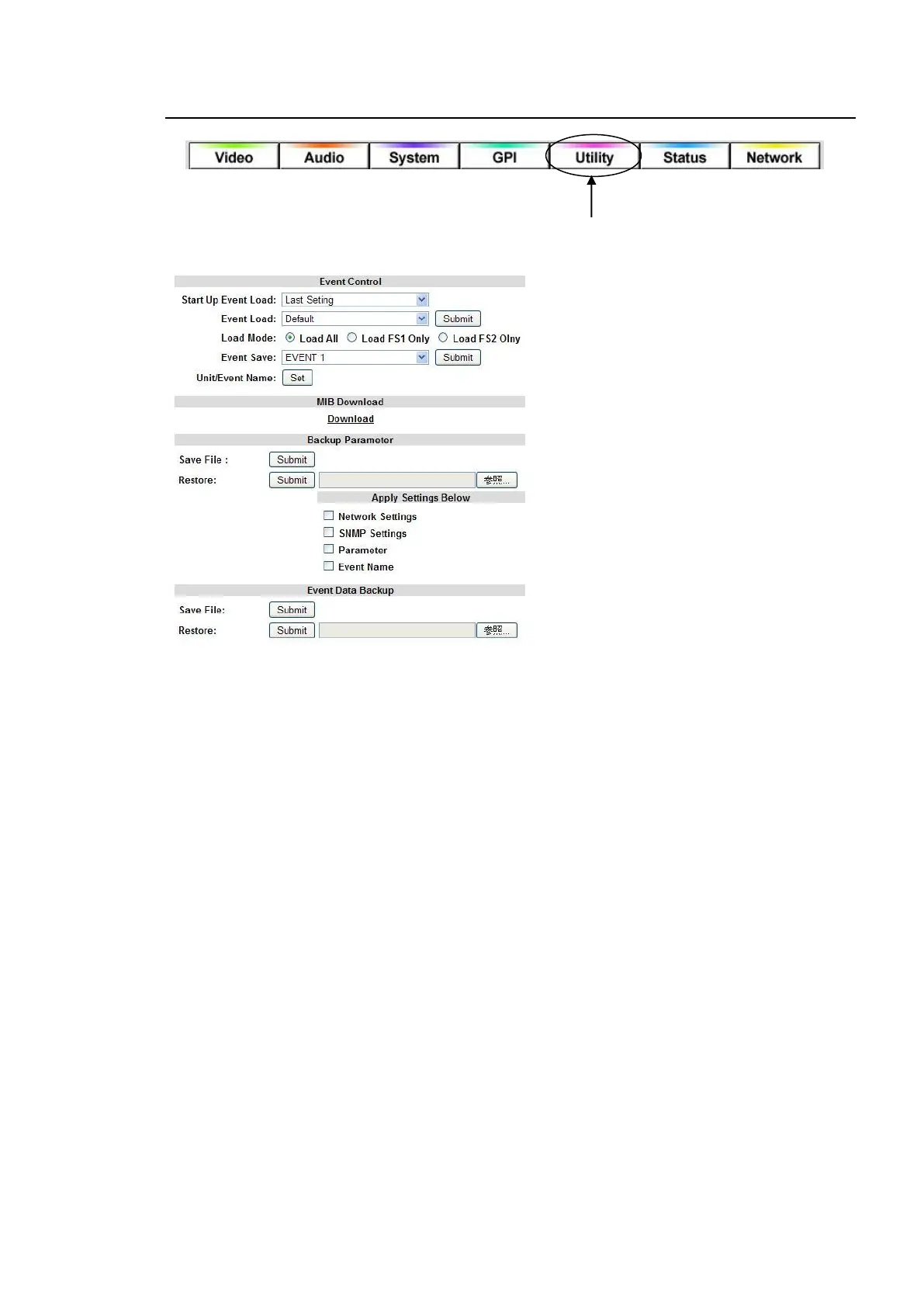

Click the Utility tab at the top of the page. The Utility setting window will be displayed.

If the user name and password are not set in the USER SETTING page (see section 9-8-5), the

Logout is not shown.

Click Refresh to update the settings.
