9-2-6. Converter

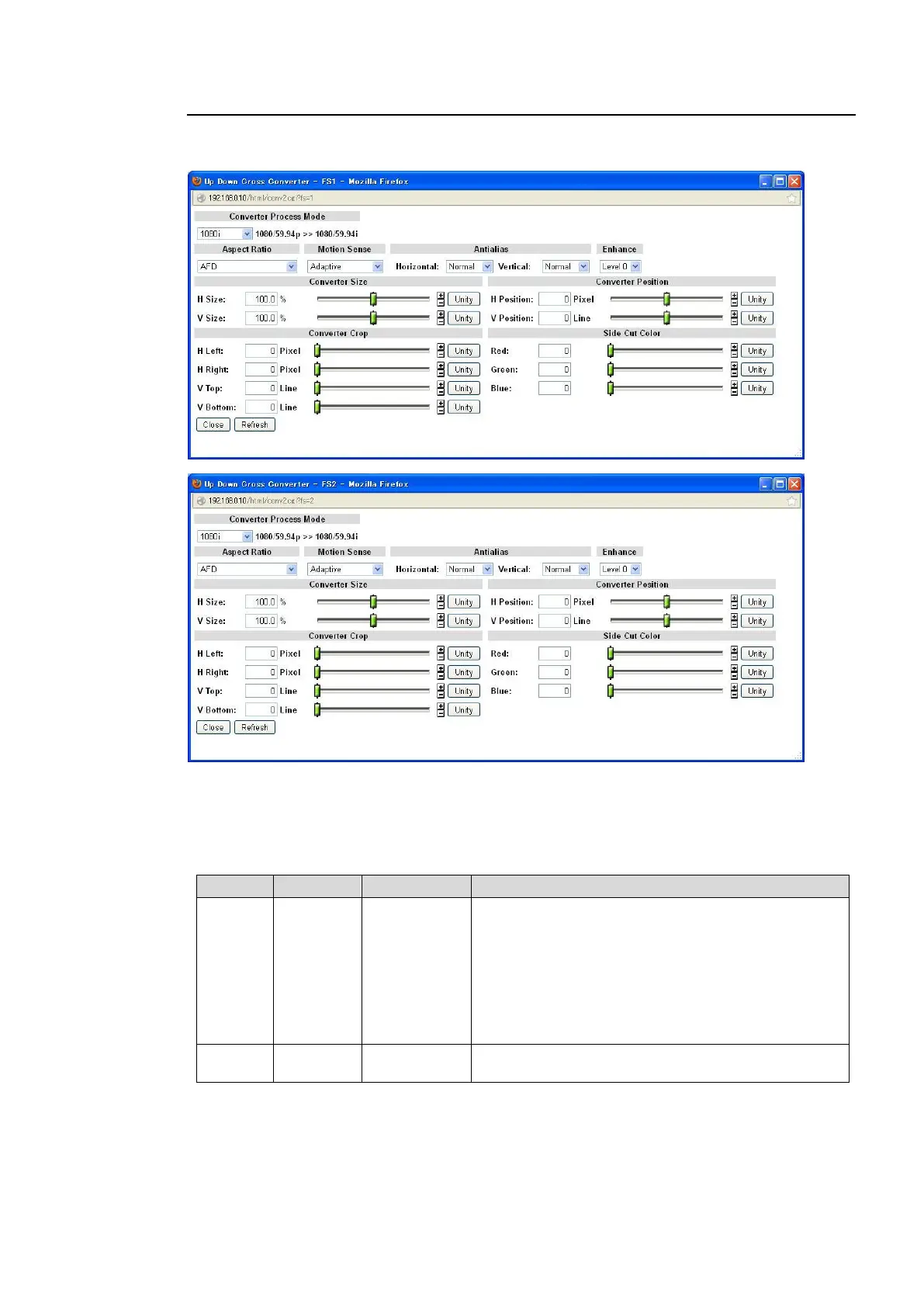

Clicking block (6) on the video block diagram opens the Up Down Cross Converter setting
dialog box for the corresponding FS.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Converter Process Mode
BY-PASS
SD
1080i
720p
1080PsF
1080p(3G)
Selects a mode for FS1/FS2 UP/DOWN Converter to
convert the input signal.
BY-PASS: Outputs the signal without converting.
SD: Converts signals to a standard definition format.
1080i: Converts signals to a 1080i format.
720p: Converts signals to a 720p format.
1080PsF: Converts signals to a 1080PsF format.
1080P(3G): Converts signals to a 3G-SDI 1080p
format.
Displays the format of the input signal to and the format
the signal will be converted to in FS1 or FS2.
See section 5-3-2 “CONV Conversion Table” for details on conversions.
