FOR-A FA-9520 - SDI Input

177
9-3-1. SDI Input

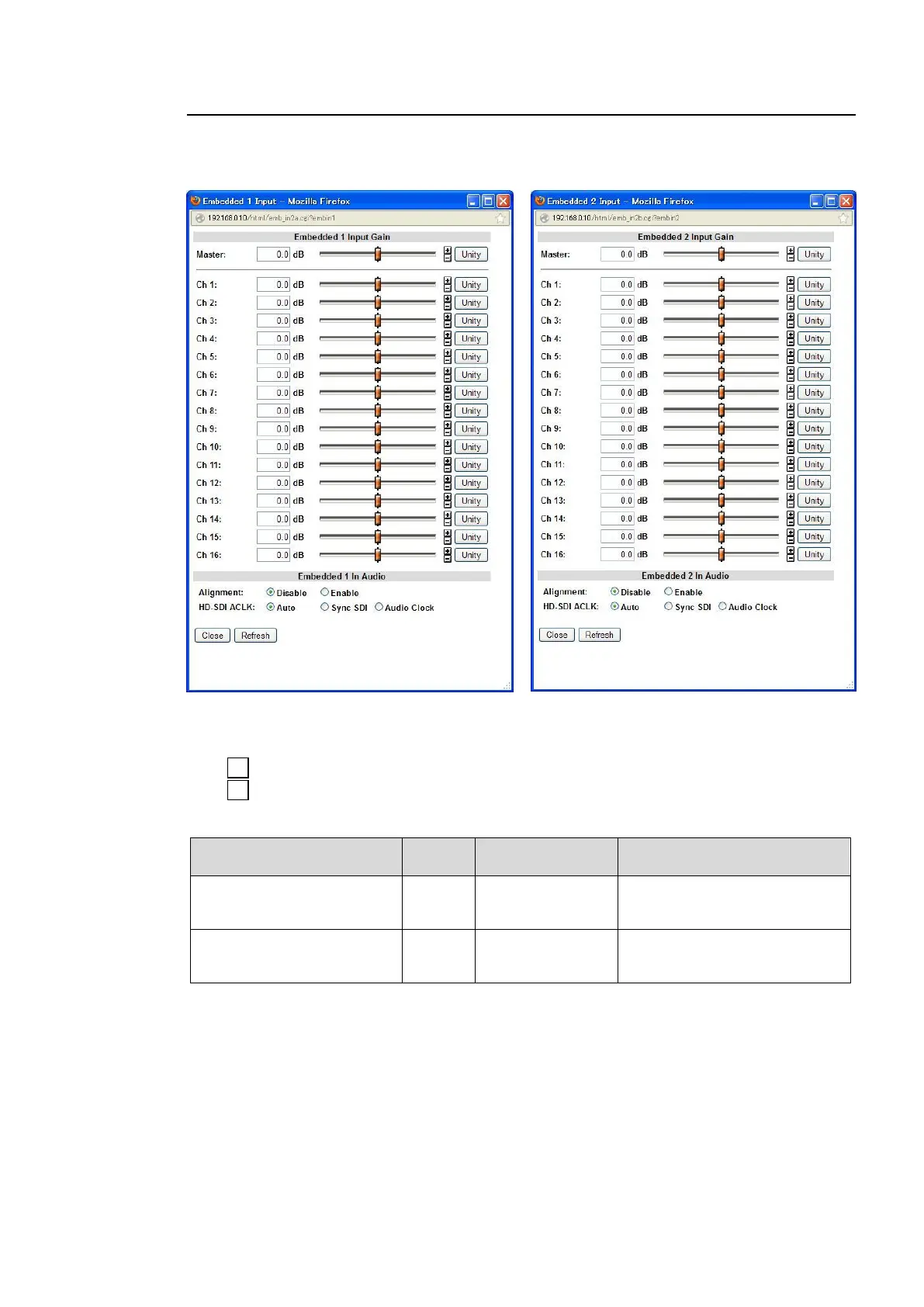

Clicking block (1) or (2) on the audio block diagram opens the SDI 1, 2 Input dialog box.
SDI 1 Input and SDI 2 Input dialog boxes allow you to set FS1 and FS2 embedded audio
settings respectively.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
 Embedded 1, 2 Input Gain
Parameter
Default
Setting range
(Steps)
Description
Master
0.0dB
-20.0 - +20.0 dB
(0.1 dB)
Sets the offset to the input gain
for all channels Ch1 to Ch16 of
SDI embedded audio.
Ch1-Ch16
0.0dB
-20.0 - +20.0 dB
*1
(0.1 dB)
Sets the input gain for the
individual SDI embedded audio
channel.
*1 Master and individual channel values cannot exceed the setting range as a total. The
setting value will stop at the end of the range.
+
-
