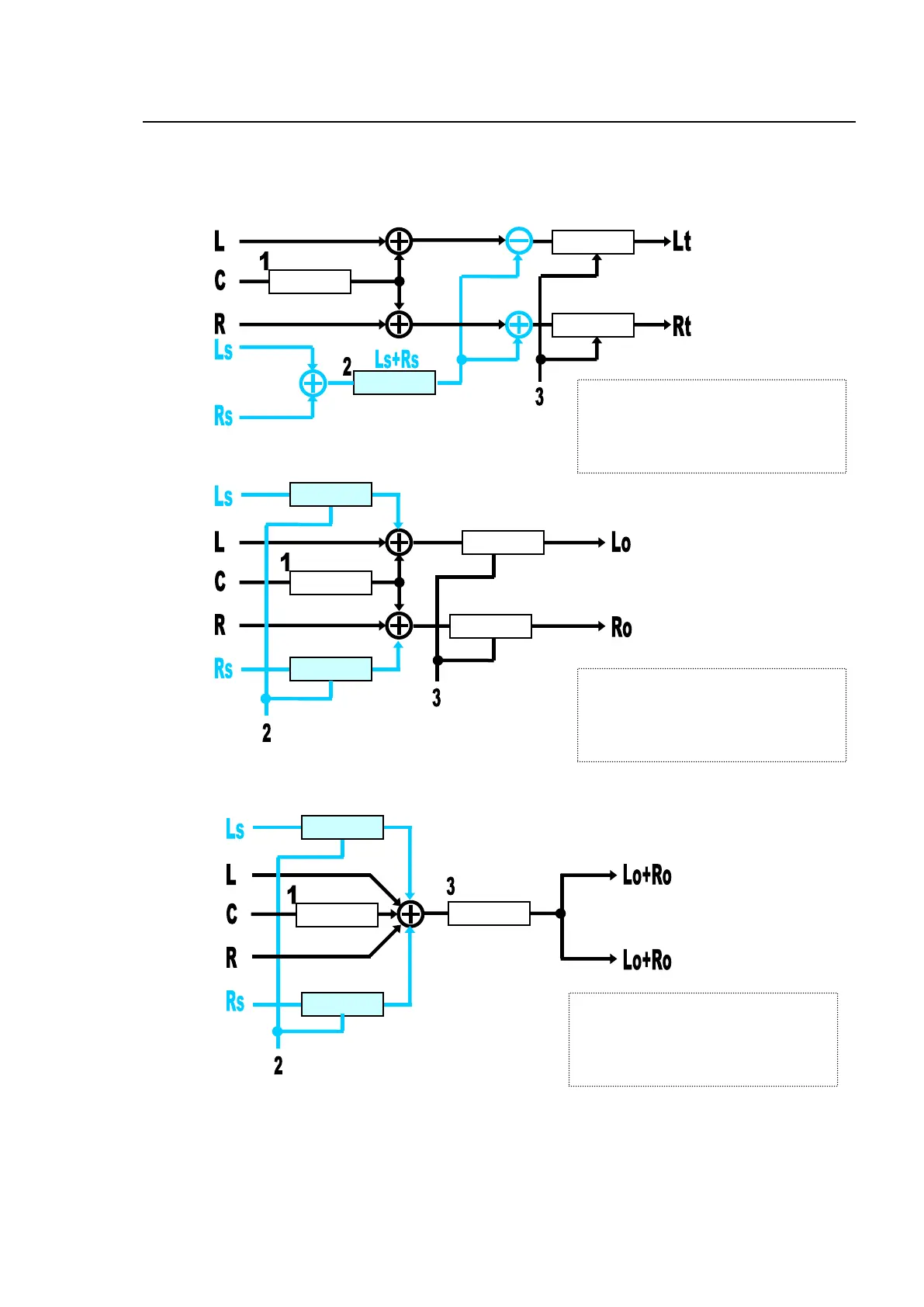

10. Downmix Block Diagram
<Surround Mix (Lt/Rt)>
Ls/Rs surround channels are summed to produce a mono surround channel and mixed to right
and left channels by the 180 degree phase difference. (LFE channel is discarded.)
<Stereo Mix (Lo/Ro)>
For Stereo Monitors
<Monaural Mix (Lo+Ro/Lo+Ro)>
For Monaural Monitors
1： CENTER MIX level setting
2： SURROUND MIX level setting
3： MASTER LVL setting
* LFE channel is not subjected to the mix.
1： CENTER MIX level setting
2： SURROUND MIX level setting
3： MASTER LVL setting
* LFE channel is not subjected to the mix.
1： CENTER MIX level setting
2： SURROUND MIX level setting
3： MASTER LVL setting
* LFE channel is not subjected to the mix.
