9-2-11. Composite Clip

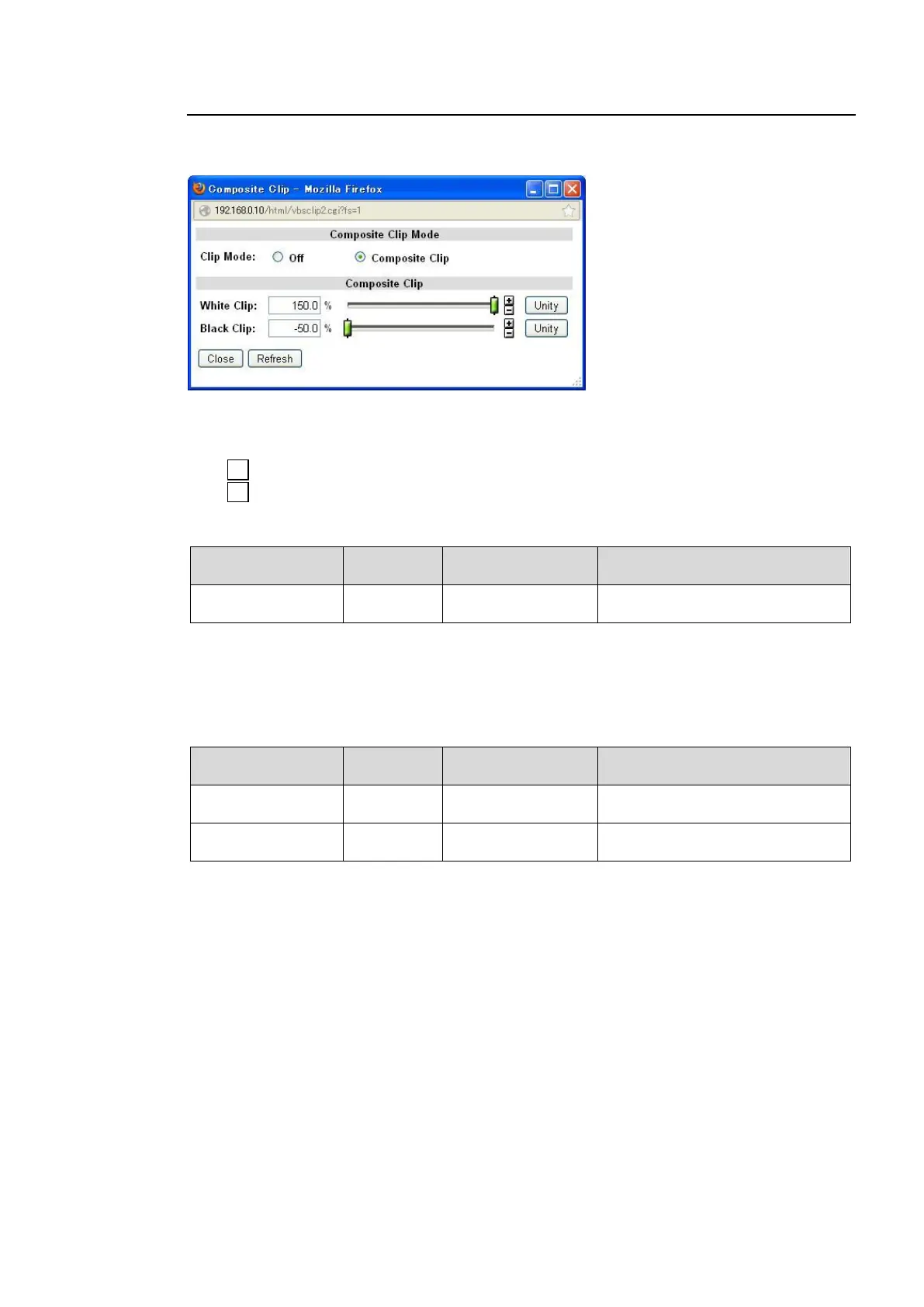

Clicking block (12) on the video block diagram opens the Composite Clip dialog box.
See section 5-5-3 “VIDEO CLIP Setting Ranges” for details.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
 Composite Clip Mode
Parameter
Default
Setting range
(Steps)
Description
Clip Mode
Off
Off,
Composite Clip
Composite Clip enables clipping
on the composite output signals.
The COMPOSITE CLIP settings are effective only on the analog composite outputs.
The settings are not effective on the SDI1/2 and SDI3/4 outputs.
To enable the Composite Clip menu, set Clip Mode to Off in the YPbPr/RGB Clip menu
(9-2-9).
 Composite Clip Mode
Parameter
Default
Setting range
(Steps)
Description
White Clip
150.0%
50 - 150%
(0.5％)
Sets the upper threshold of analog
composite color space.
Black Clip
-50.0％
-50 - 50%
(0.5％)
Sets the lower threshold of analog
composite color space.
+
-
