195
9-3-15. Dolby E Encoder

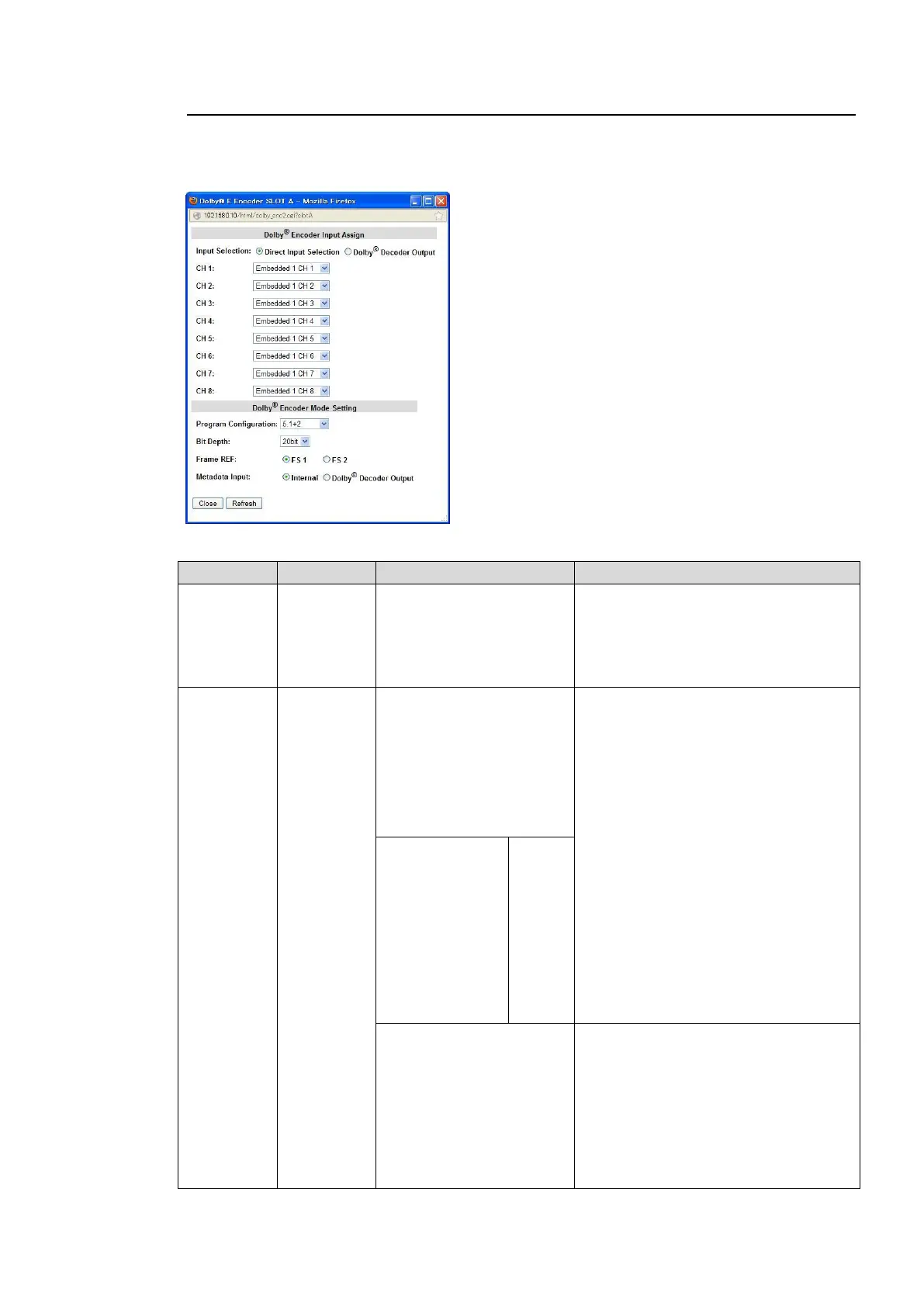

Clicking block (16) on the audio block diagram when the FA-95DE-E option is installed in
option slot A/B opens the Dolby E Encoder dialog box.
(The options in slots A and B can be set separately.)
After completing the settings, click Close to close the
dialog box.
Click Refresh to update the settings.
Dolby Encoder Input Assign
Direct Input Selection
Dolby Decoder Output
Selects a signal to be input to the Dolby
encoder.
*1
Direct Input Selection: Source
channel signals of the FA-9520
Dolby Decoder Output: Output signal
from the Dolby decoder
*1
When Direct Input
Selection is selected
Embedded1, 2 CH1-CH16
AES CH1-CH8
Analog CH1-CH4
Down Mix 1, 2 L/1, 2 R
500Hz TONE
1KHz TONE
Silence
When Input Selection is set to Direct
Input Selection:
Embedded1/2 CH1-CH16: OURCE
signal selected in the 6-5 AUDIO
MAPPING (MAPPING) menu
AES CH1-8: AES input channel
Analog CH1-4: Analog audio input
channel
Down Mix 1,2L/1,2R: Down-mixed 1/2
output audio signal.
500Hz/1KHz TONE: 500Hz/1KHz test
signal (TONE)
Silence: Mute signal
Loudness 1/2 A/B Left
Loudness 1/2 A/B Right
Loudness 1/2 A/B Center
Loudness 1/2 A/B LFE
Loudness 1/2 A/B Ls
Loudness 1/2 A/B Rs
Loudness-processed1/2, A/B output
audio signal
Loudness 1 A
*2
Loudness 2 A
*2
Loudness 1 B
*3
Loudness 2 B
*3
Left
Right
Center
LFE
Ls
Rs
When Dolby Decoder
Output is selected
Dolby Decoder CH 1-8
Dolby Down Mix L
Dolby Down Mix R
500Hz TONE
1KHz TONE
Silence
When Input Selection is set to Dolby
Decoder Output:
Dolby Decoder CH 1-8: PCM signal
output from the Dolby decoder
Dolby Down Mix L/R: Down mixed
signal generated from Dolby-decoded
PCM signal
500Hz/1KHz TONE: 500Hz/1KHz test
signal (TONE)
Silence: Mute signal
*1 Direct Input Selection and Dolby Decoder Output settings are retained until changed.
When the Direct Input Selection or Dolby Decoder Output is changed, Ch1-8 signal
To Next Page
