FOR-A FA-9520 - Auto Video Optimizer (AVO)

155
<Video Loss Mode>
Video Loss Mode allows you to select what to output when the input signal selected under
Input is lost.
 Back Color
Displays a screen in a color selected under Back Color.
 Auto Freeze
Freezes the last image before loss of signal.
Freezes progressive signals such as 720p in frame freeze mode and other signals in field
freeze mode.
 Color Bar
Outputs SMPTE color bars.
 Output Disable
No outputs from SDI OUT1/2, 3/4, or COMPOSITE OUT1/2.
9-2-2. Auto Video Optimizer (AVO)

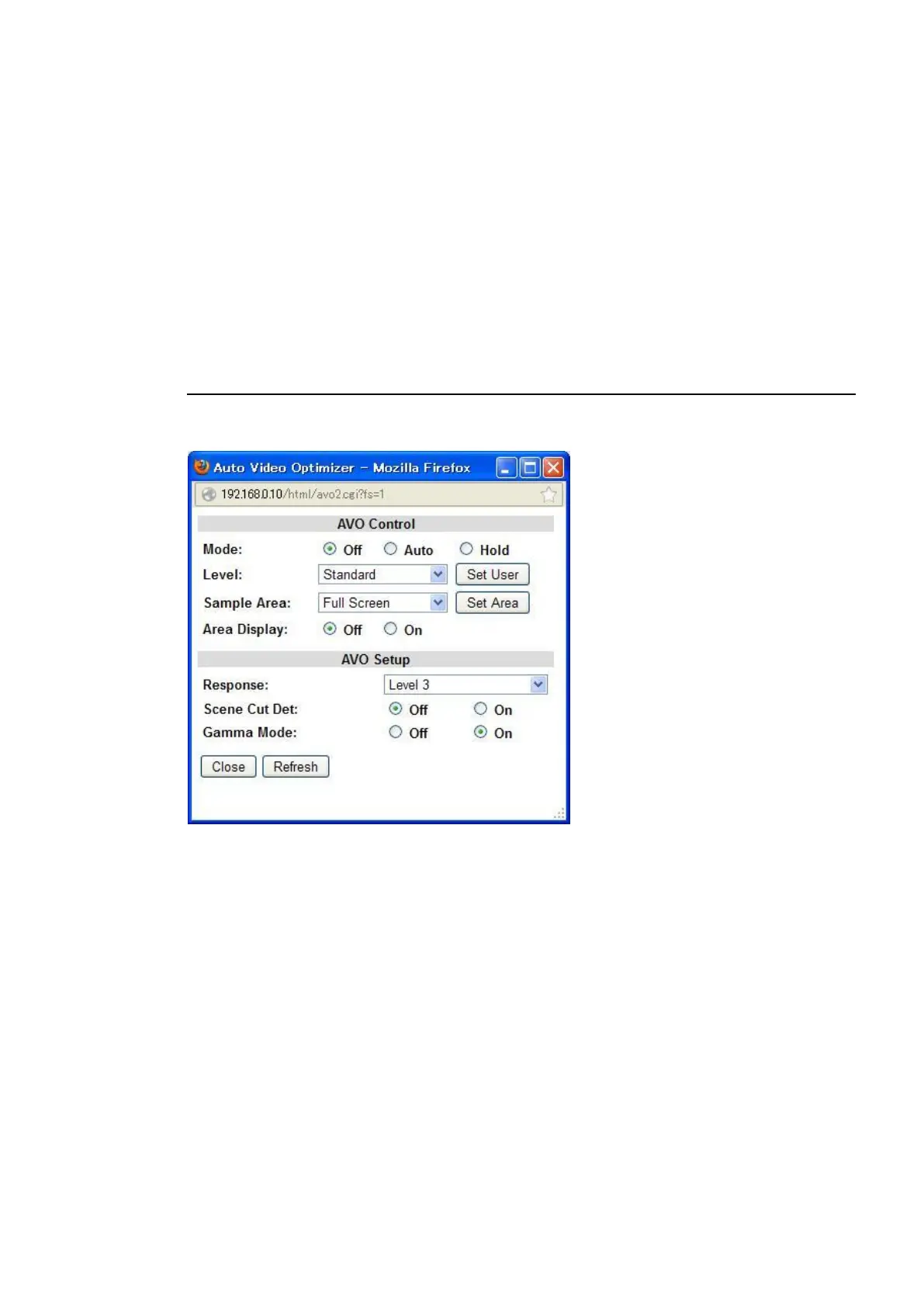

Clicking block (6) on the video block diagram opens the Auto Video Optimizer dialog box.
* AVO settings are effective on FS1 video signals.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
