Harmonic ELECTRA VS - Page 162

Chapter 3 ’Web User Graphical Interface’ — Operating Instructions (Tutorial)
162 Electra VS - Version 05.10
User Manual - Rev. A
- Select Parameters tab.
- Click Edit .
- Select Backup job standby activity = Running when
standby
if the backup job must be instantiated.
- Click Save .

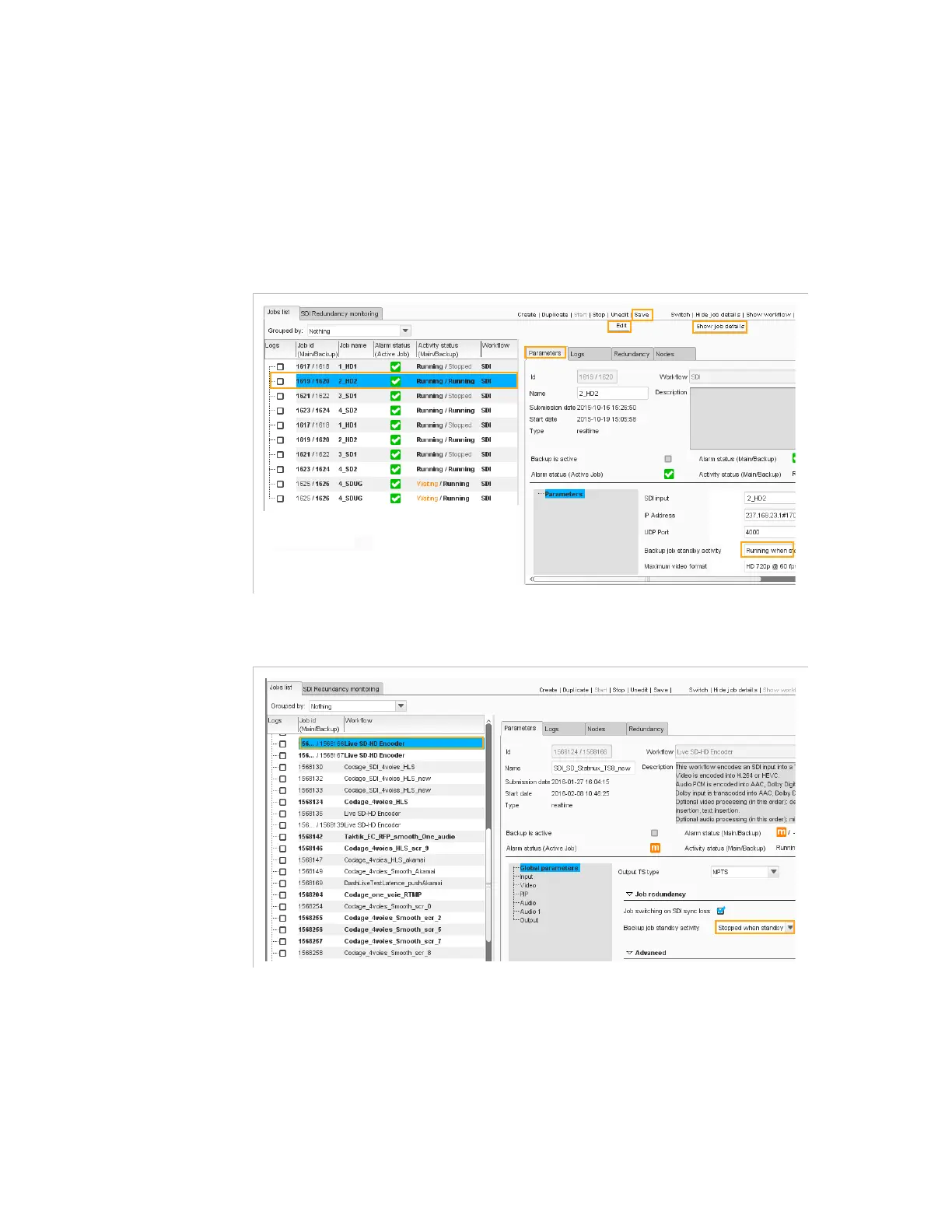

Figure 3-116. Mirroring selection in Jobs list tab
Figure 3-117. Mirroring selection in the Live SD-HD Encoder Jobs list tab
1
2
4
5
6
3
