4-wire resistance measure connections

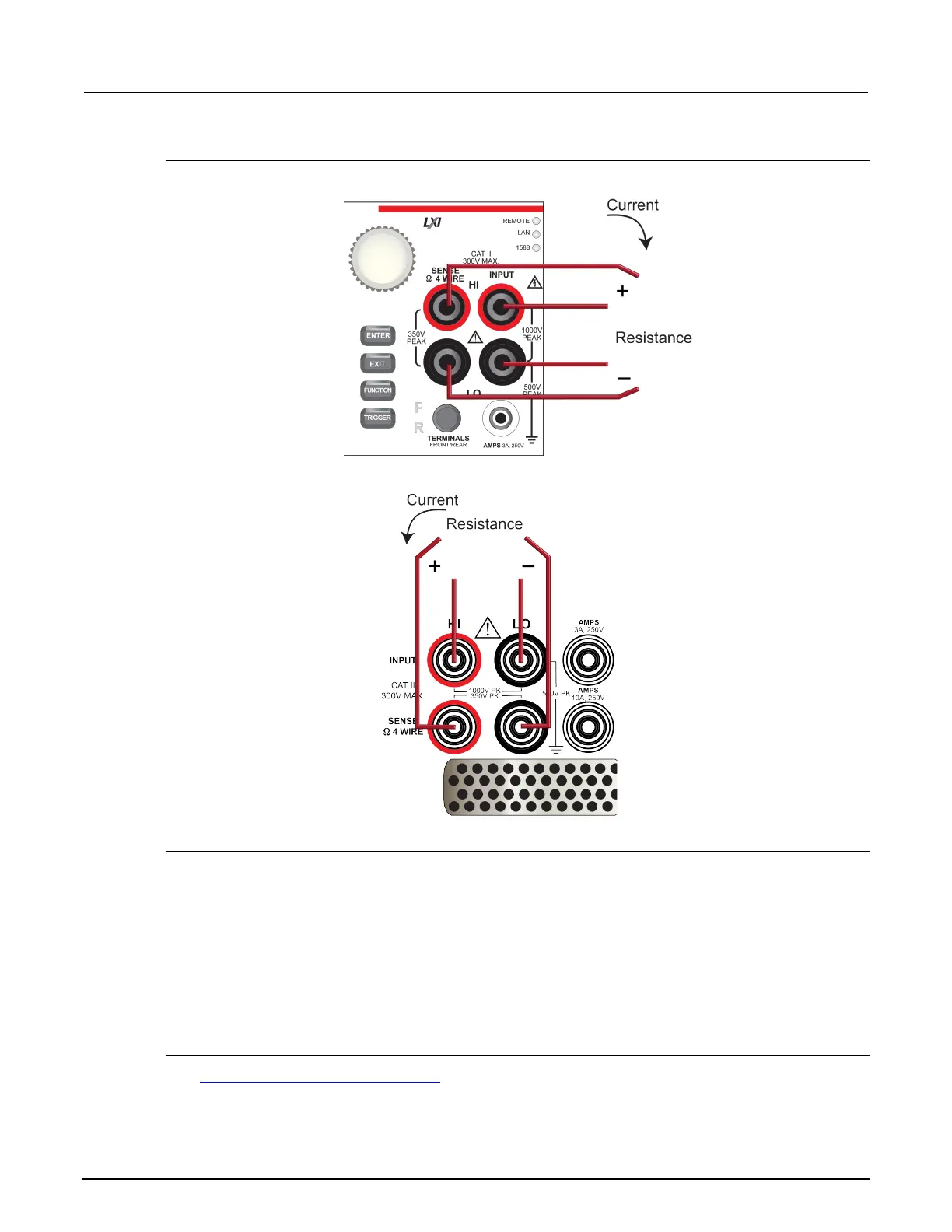

Figure 74: Front panel connections: 4-wire resistance measurement
Figure 75: Rear panel connections: 4-wire resistance measurement
Measure 4-wire resistance using the front panel
To make a 4-wire resistance measurement using the front panel:
1. Make the connections as shown in the previous figures.
2. Press the FUNCTION key.
3. Select 4W Res.
4. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements start displaying on the front panel.
Settings available for 4-wire resistance measurements
See 4-wire resistance measure settings (on page 2-28) for settings that are available when you are
making 4-wire resistance measurements.

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
