2: General operation Model DMM7510 7½ Digit Graphical Sampling Multimeter
2-114 DMM7510-901-01 Rev. B / May 2015
Continuity measure connections

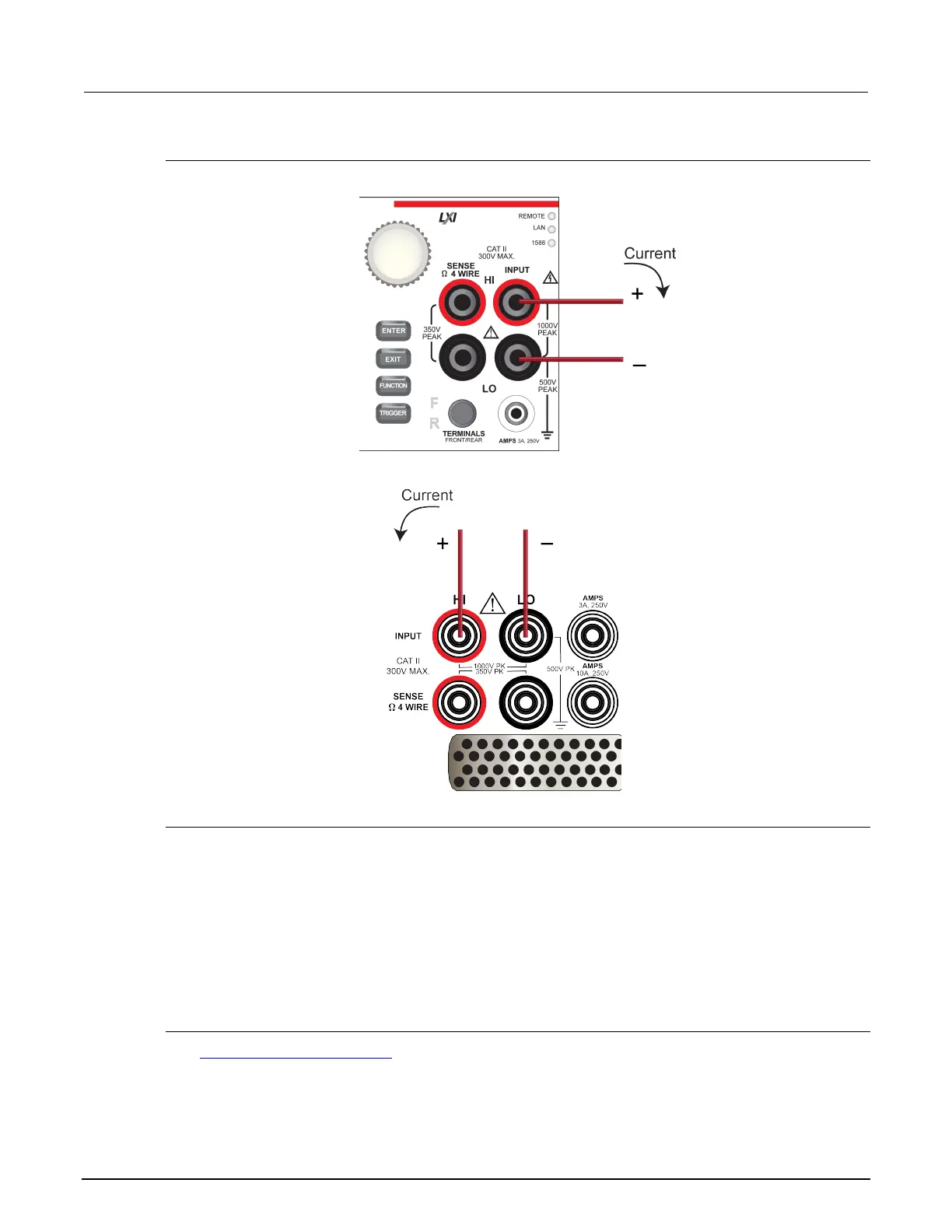

Figure 76: Front panel connections: Continuity measurement
Figure 77: Rear panel connections: Continuity measurement
Measure continuity using the front panel
To make a continuity measurement using the front panel:
1. Make the connections as shown in the previous figures.
2. Press the FUNCTION key.
3. Select Continuity.
4. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements start displaying on the front panel.
Settings available for continuity measurements
See Continuity measure settings (on page 2-29) for settings that are available when you are making
continuity measurements.
