Keithley DMM7510 Reference Manual

Model DMM7510
7½ Digit Graphical Sampling Multimeter Reference Manual Section 2:
General operation
DMM7510-901-01 Rev. B / May 2015 2-129
Measure with digitize voltage using the front panel
To make a digitize voltage measurement using the front panel:
1. Make the connections as shown in Digitize voltage measure connections (on page 2-128).
2. Press the FUNCTION key.
3. Select the Digitize Functions tab.
4. Select Digitize Voltage.
5. Press the MENU key.
6. Under Measure, select Settings.
7. Select the settings for your application. For descriptions of the options, refer to
Digitize Voltage
measure settings (on page 2-33).
8. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements display on the front panel.
Settings available for digitize voltage measurements
See Digitize voltage measure settings (on page 2-33
) for settings that are available when you are
digitizing voltage measurements.
Digitize current measurements
The digitize current function makes accurate, predictably spaced current measurements.
Do not apply more than 250 V
peak
between INPUT LO and the AMPS input. Failure to observe this
caution may result in instrument damage.
Digitize current measure connections

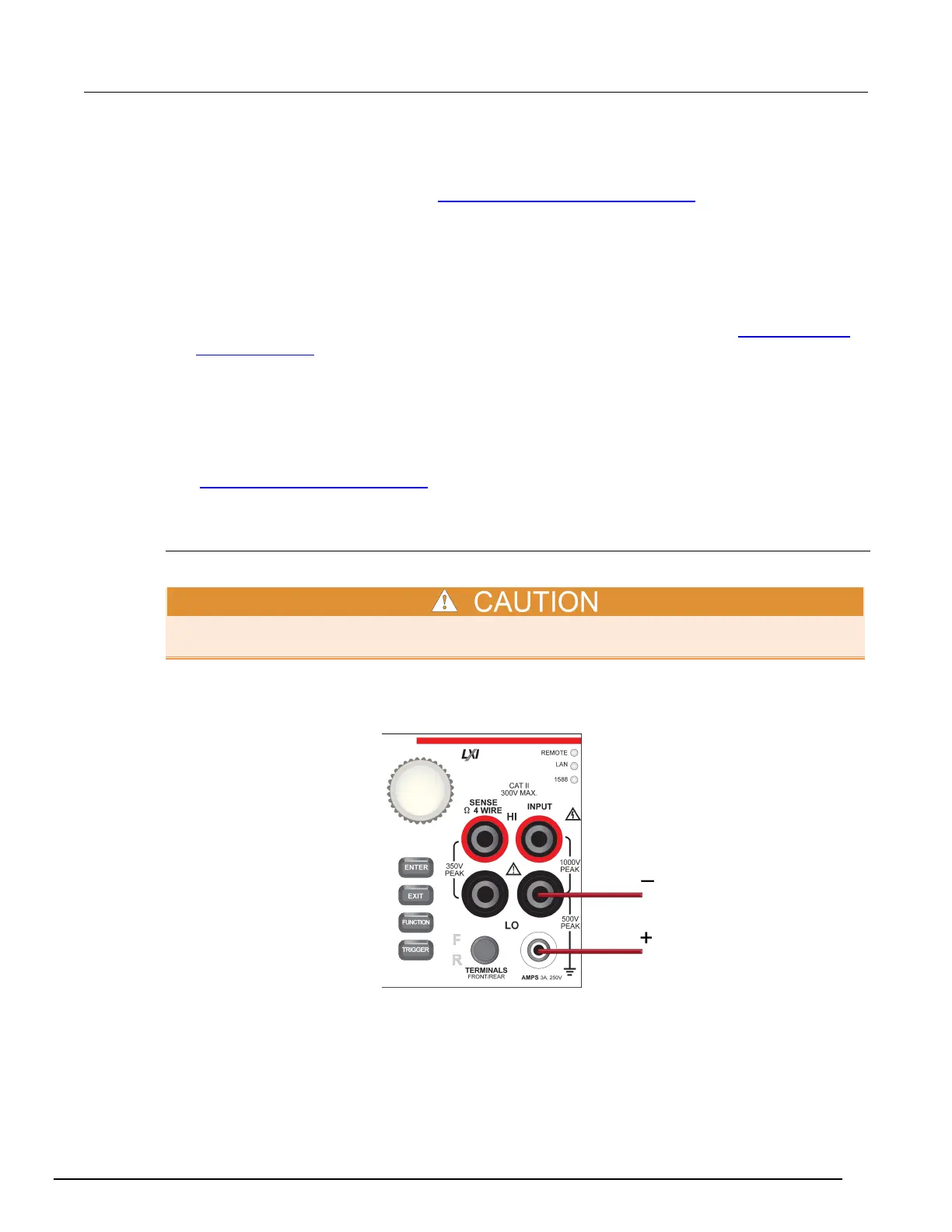

Figure 94: Front panel connections: Digitize current measurement

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
