Keithley DMM7510 Reference Manual

Model DMM7510
7½ Digit Graphical Sampling Multimeter Reference Manual Section 5:
Introduction to SCPI commands
DMM7510-901-01 Rev. B / May 2015 5-7
Command usage
The Usage section of the remote command listing shows how to properly structure the command.
Each line in the Usage section is a separate variation of the command usage; all possible command
usage options are shown here.

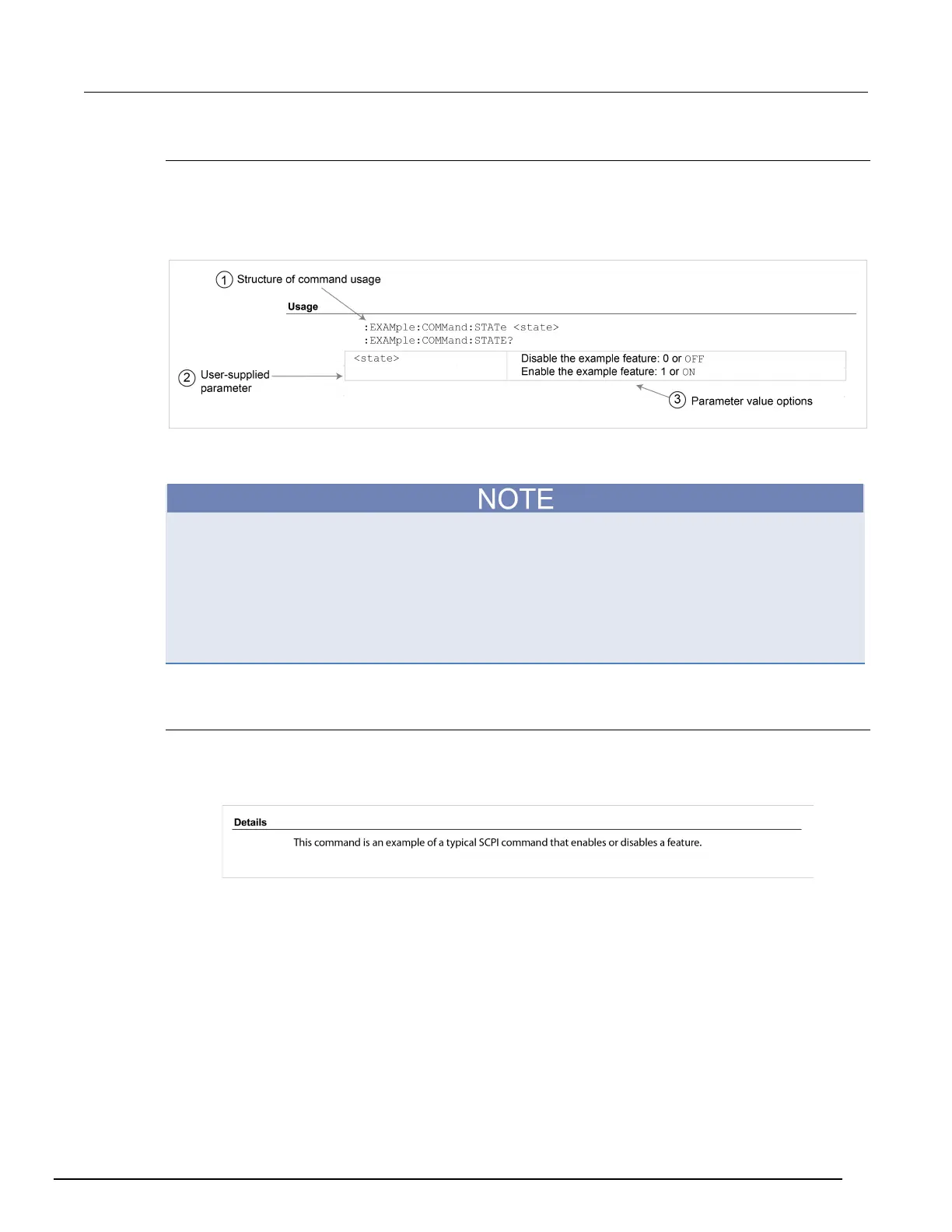

Figure 147: SCPI command description usage identification
1. Structure of command usage: Shows how the parts of the command should be organized.
2. User-supplied parameters: Indicated by angle brackets (< >).
Some commands have optional parameters. Optional parameters are presented on separate lines in
the Usage section, presented in the required order with each valid permutation of optional
parameters. For example:
:SYSTem:COMMunication:LAN:CONFigure AUTO
:SYSTem:COMMunication:LAN:CONFigure MANual, IPaddress
:SYSTem:COMMunication:LAN:CONFigure MANual, IPaddress, NETmask
:SYSTem:COMMunication:LAN:CONFigure MANual, IPaddress, NETmask, GATeway
:SYSTem:COMMunication:LAN:CONFigure?
3. Parameter value options: Descriptions of the options that are available for the parameter.
Command details
This section lists additional information you need to know to successfully use the command.
Figure 148: Details section of command listing

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
