7½ Digit Graphical Sampling Multimeter Reference Manual Section 2:
DMM7510-901-01 Rev. B / May 2015 2-43
Setting Description
Pulse Width
When the analog pulse waveform is selected, this sets the pulse
width in seconds. This option sets either the minimum or maximum
pulse width that generates a trigger event. The value of pulse
condition determines whether this value is interpreted as the
minimum or maximum pulse width.
Low Boundary
When the analog window waveform is selected, this sets the lower
boundary of the analog trigger window.
High Boundary
When the analog window waveform is selected, this sets the high
boundary of the analog trigger window.
Direction
When the analog window waveform is selected, this defines if the
analog trigger occurs when the signal enters or leaves the defined
upper and lower analog signal level boundaries.
Views Histogram menu
The Histogram menu allows you to graph the distribution of measurement data in the
selected reading buffer. It also contains tabs that you use to customize the histogram.
Histogram tab
The Histogram tab graphs readings as a bar graph of the data distribution into bins. Settings you
make on the Data and Scale tabs affect which data are used and how data distributions appear on
this screen. You can change the scale of either axis on the screen by dragging or pinching the
screen.

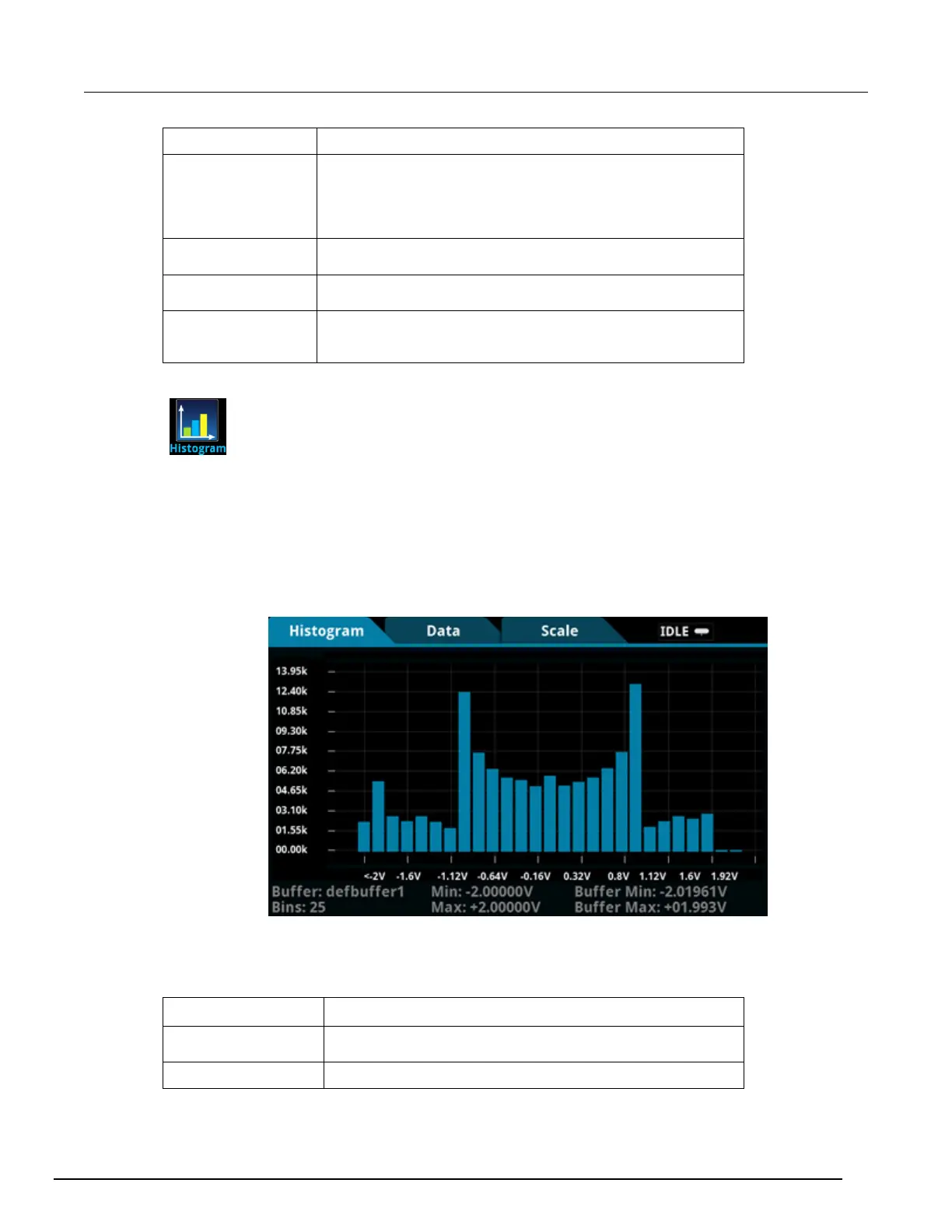

Figure 23: Model DMM7510 Histogram
Data tab
The Data tab allows you to select which reading buffer provides the data that is binned on the
Histogram tab. You can also clear the data from the selected buffer.
Setting Description
Bin Buffer
The presently selected reading buffer. You can use this button to
select a different reading buffer.
Clear Buffer
Clear the reading buffer. The Histogram is also cleared.
