Ricoh Aficio MP C3501

Junction Gates
B793 42 SM
2.2 JUNCTION GATES
Two junction gates control the path of paper.
Each junction gate is controlled by a solenoid.

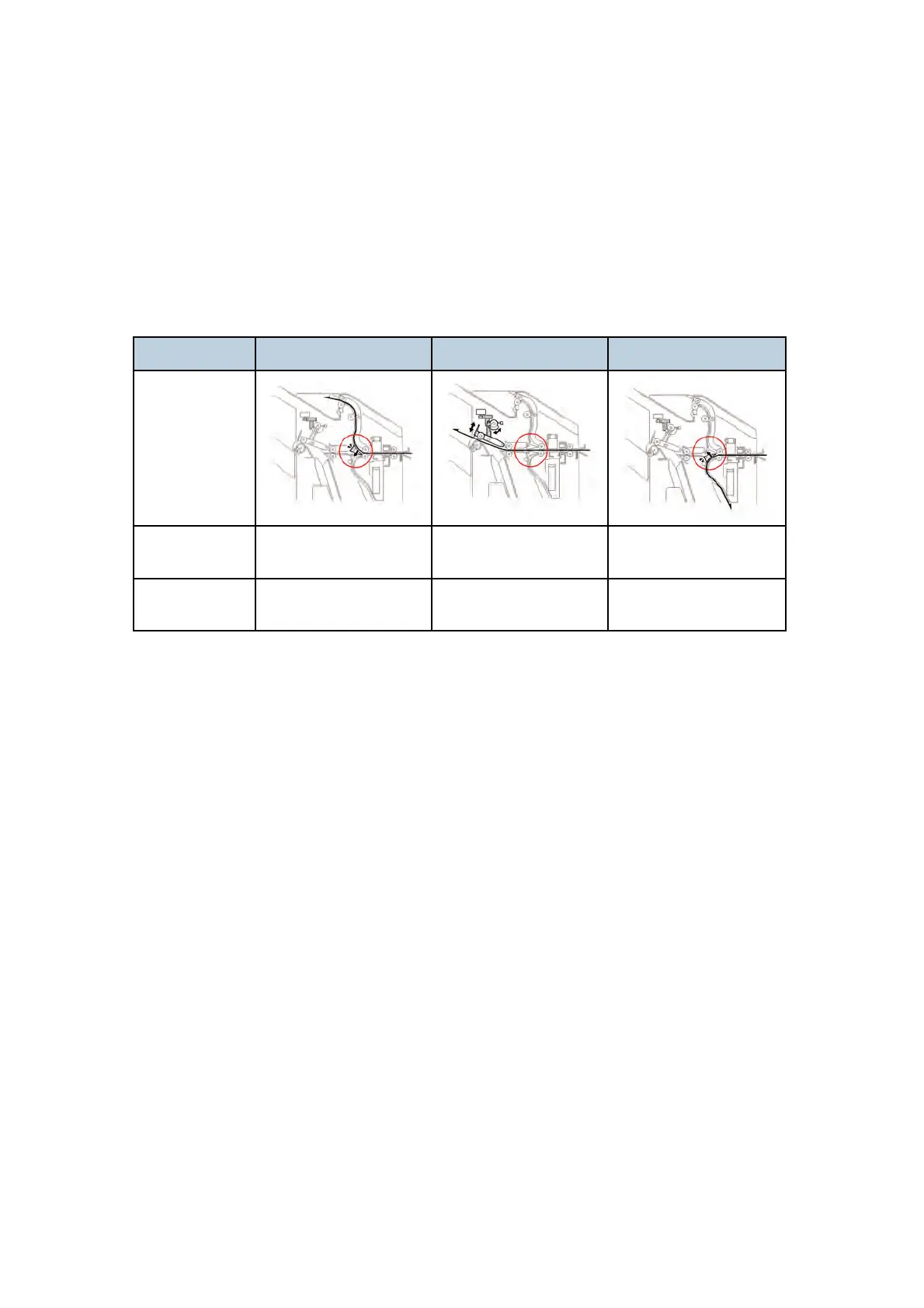

Junction gate operation is summarized in the following table.
Mode Proof Shift Staple
Paper Path
Proof Tray
Gate Solenoid
ON OFF OFF
Staple Tray
Gate Solenoid
OFF OFF ON
