Protocol analysis
R&S
®
RTE
747User Manual 1326.1032.02 ─ 20

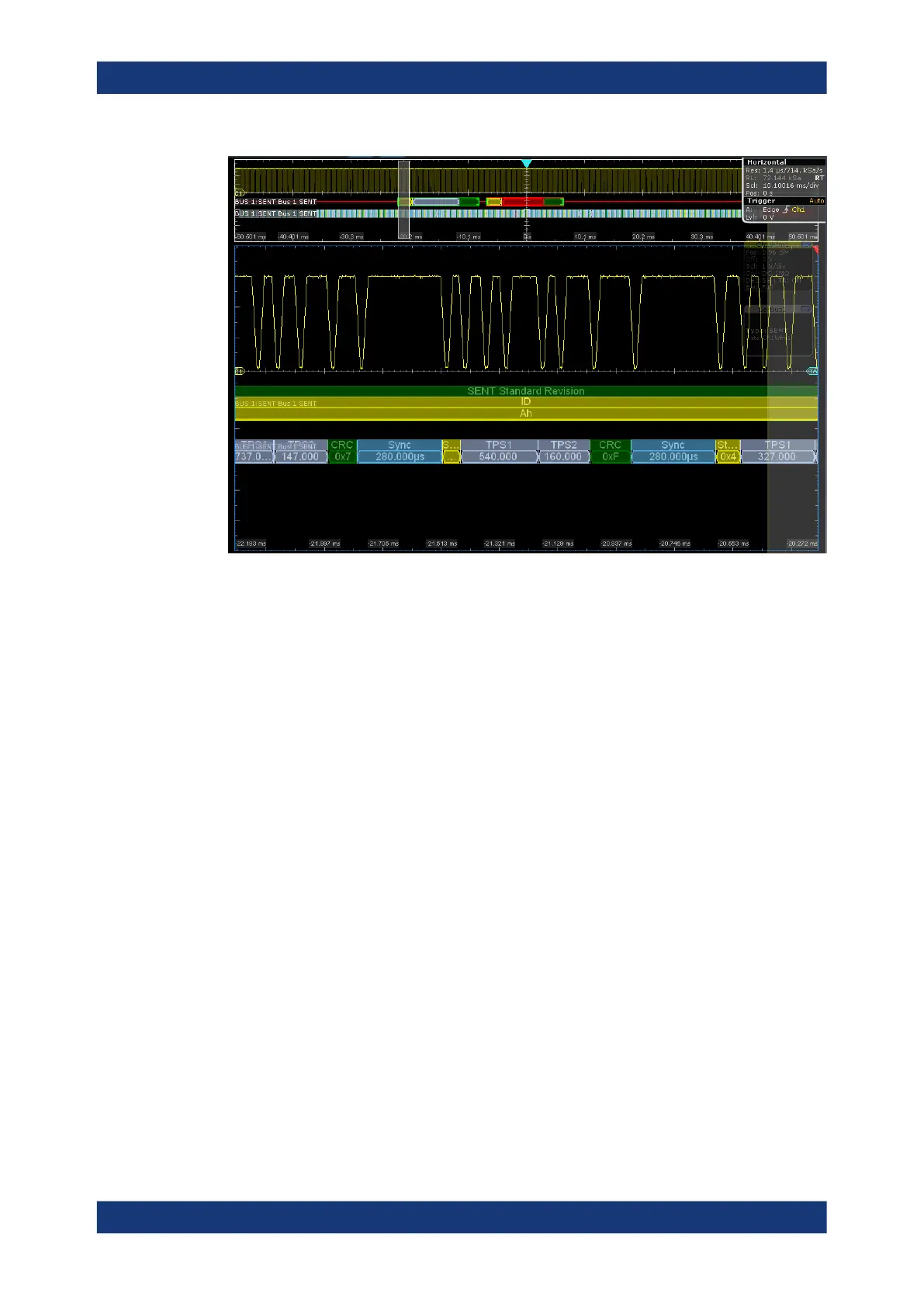

Figure 13-64: SENT decode results with label list translation
Remote command:
●
BUS<m>:SENT:FRAMe<n>:SYMBol? on page 1717
●
BUS<m>:SENT:FRAMe<n>:SDATa? on page 1717
●
BUS<m>:SENT:FRAMe<n>:SDEXport? on page 1717
13.13.4.1 SENT label list translation example
The example shows the xml sequence for a label list translation in the SENT protocol:
SENT (option R&S RTE-K10)
