Acquisition and waveform setup
R&S
®
RTE
193User Manual 1326.1032.02 ─ 20

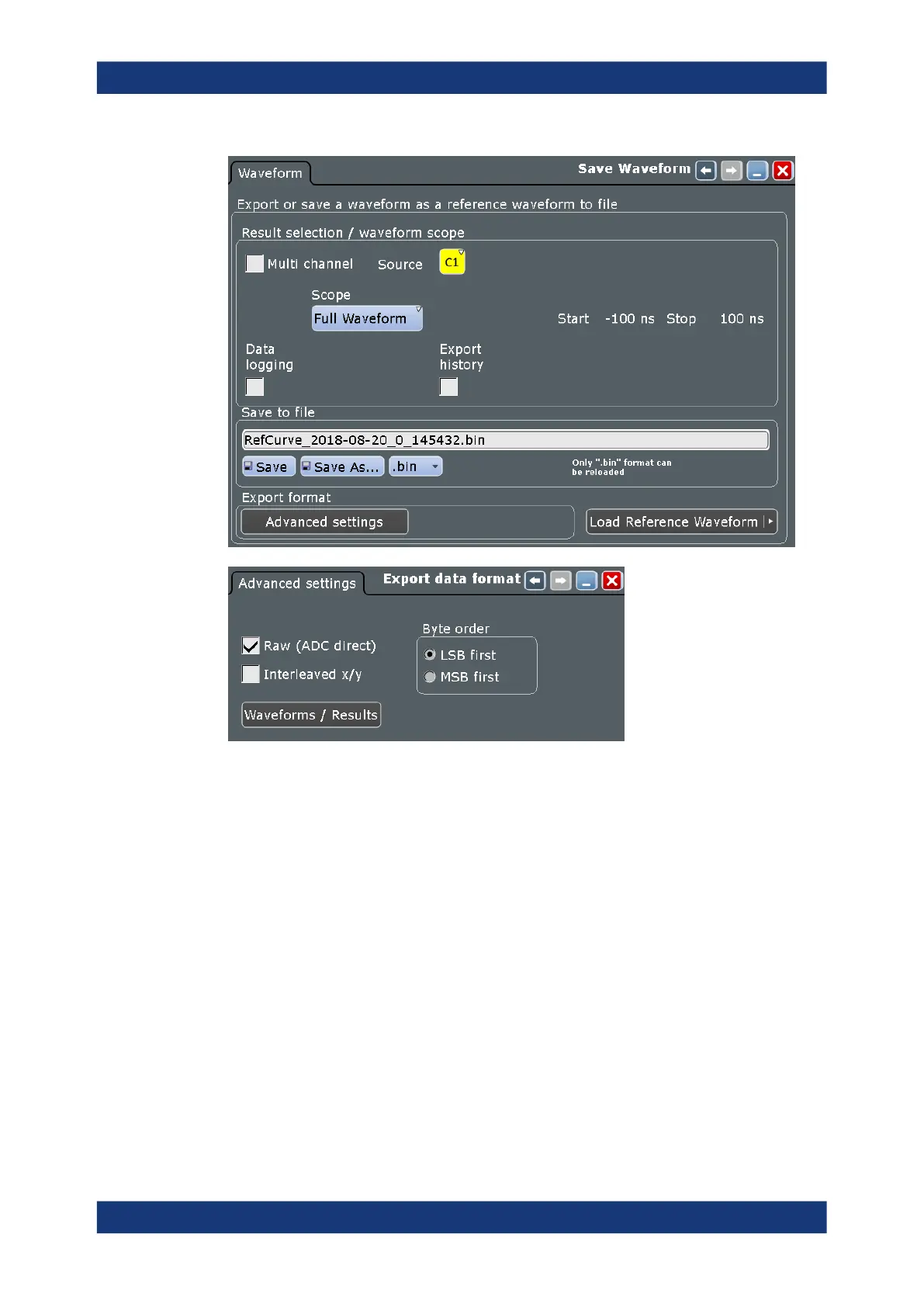

See:
●
"Raw (ADC direct)" on page 489
●
"Interleaved x/y" on page 489
●
"Byte order" on page 490
If you use remote control commands to transfer data to a controlling computer, set the
data format to INT,16 to transfer the complete data words (see FORMat[:DATA]
on page 1082).
5.5 Probes
With R&S RTE digital oscilloscopes, you can use various probe types. Mostly these
probes are passive and active voltage probes. The "Probes" dialog provides all probe-
relevant information.
The instrument can detect many probes and read out the probe-specific parameters,
for example, bandwidth and attenuation.
Probes
