4. Select the correct channels for the "DC output" and the "AC input" or the "DC
input".
5. Select the "Settings" tab.
6. Select whether you want to measure "Turn on" or "Turn off".
7. Set the "Steady state level" and the "Trigger level " according to your requirements.
8. Tap "Execute".
9. Turn on/off the DUT.
On the screen, you can see the measurement. Also, the result box displays the
turn on or the turn off time. For details, see Chapter 16.5.2.1, "Turn on/off results",
on page 996.
16.5.2.3 Turn on/off settings
In the "Channels" tab, you set the current source and the voltage source, see also:
Chapter 16.2.1, "Channels tab", on page 965.
In the "Settings" tab, you configure the turn on and the turn off parameters.

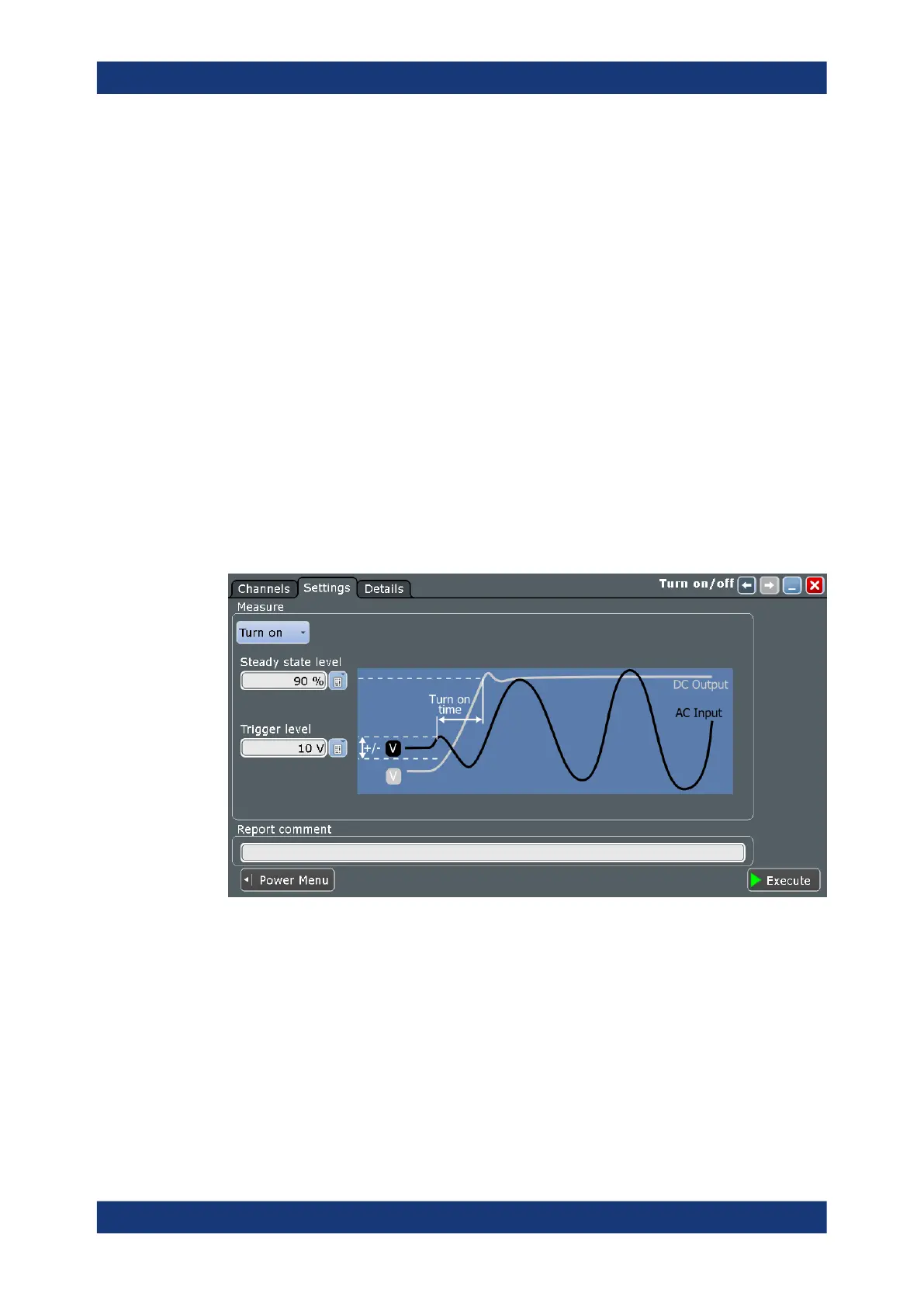

Figure 16-2: Settings turn on time
Power path
