Protocol analysis
R&S
®
RTE
676User Manual 1326.1032.02 ─ 20
T/R (Transmit/receive)
Specifies the data direction of the selected command.
For details, see "T/R (Transmit/receive)" on page 668.
Remote command:
SEARch:TRIGger:MILStd:CMD:TR on page 1628

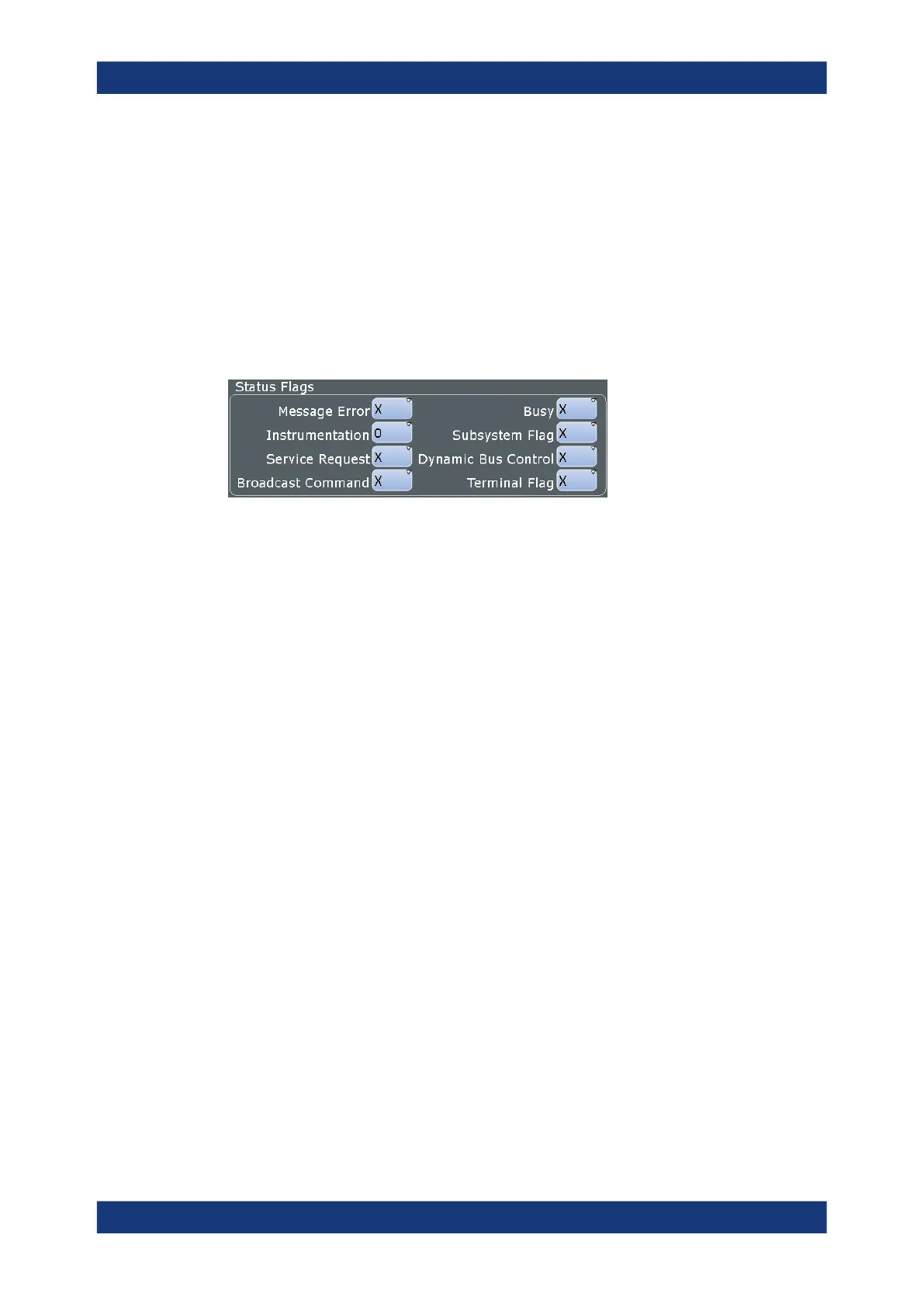

Status flags setup
Specifies the values (X, 0, 1) of the status flags.
The status flags setup settings are the same as in the MIL trigger setup, see "Status
Flags" on page 668.
Remote command:
SEARch:TRIGger:MILStd:STATus:BCReceived on page 1628
SEARch:TRIGger:MILStd:STATus:BUSY on page 1628
SEARch:TRIGger:MILStd:STATus:DBCaccept on page 1629
SEARch:TRIGger:MILStd:STATus:INSTrument on page 1629
SEARch:TRIGger:MILStd:STATus:MERRor on page 1629
SEARch:TRIGger:MILStd:STATus:SREQuest on page 1629
SEARch:TRIGger:MILStd:STATus:SUBSystem on page 1629
SEARch:TRIGger:MILStd:STATus:TERMinal on page 1629
Error Condition
Selects the error type to be searched for. You can select one or more error types as
search condition.
The error types are the same as in the MIL trigger setup, see "Error Condition"
on page 668
Remote command:
SEARch:TRIGger:MILStd:ERRor:MANChester on page 1628
SEARch:TRIGger:MILStd:ERRor:PARity on page 1628
SEARch:TRIGger:MILStd:ERRor:SYNC on page 1628
SEARch:TRIGger:MILStd:ERRor:TIMing on page 1628
13.9.6.2 MIL search results
To get search results, "Enable" the search. You can minimize, shift or close the search
dialog.
The search results are listed in the search result table and marked in the waveform by
blue lines.
MIL-1553 (option R&S
RTE-K6)
