9. Set the "Overwrite present skew setup" on page 957 and "Activate user defined
preset" on page 958 options. These settings define whether the instrument uses
the deskew result for user-defined preset and general skew settings.
10. Tap "Auto deskew".
The probes are deskewed and the measurement can be started.
If no deskew fixture is available, you have to deskew your probes manually, see Chap-
ter 5.9.1, "Skew", on page 232.
Probes

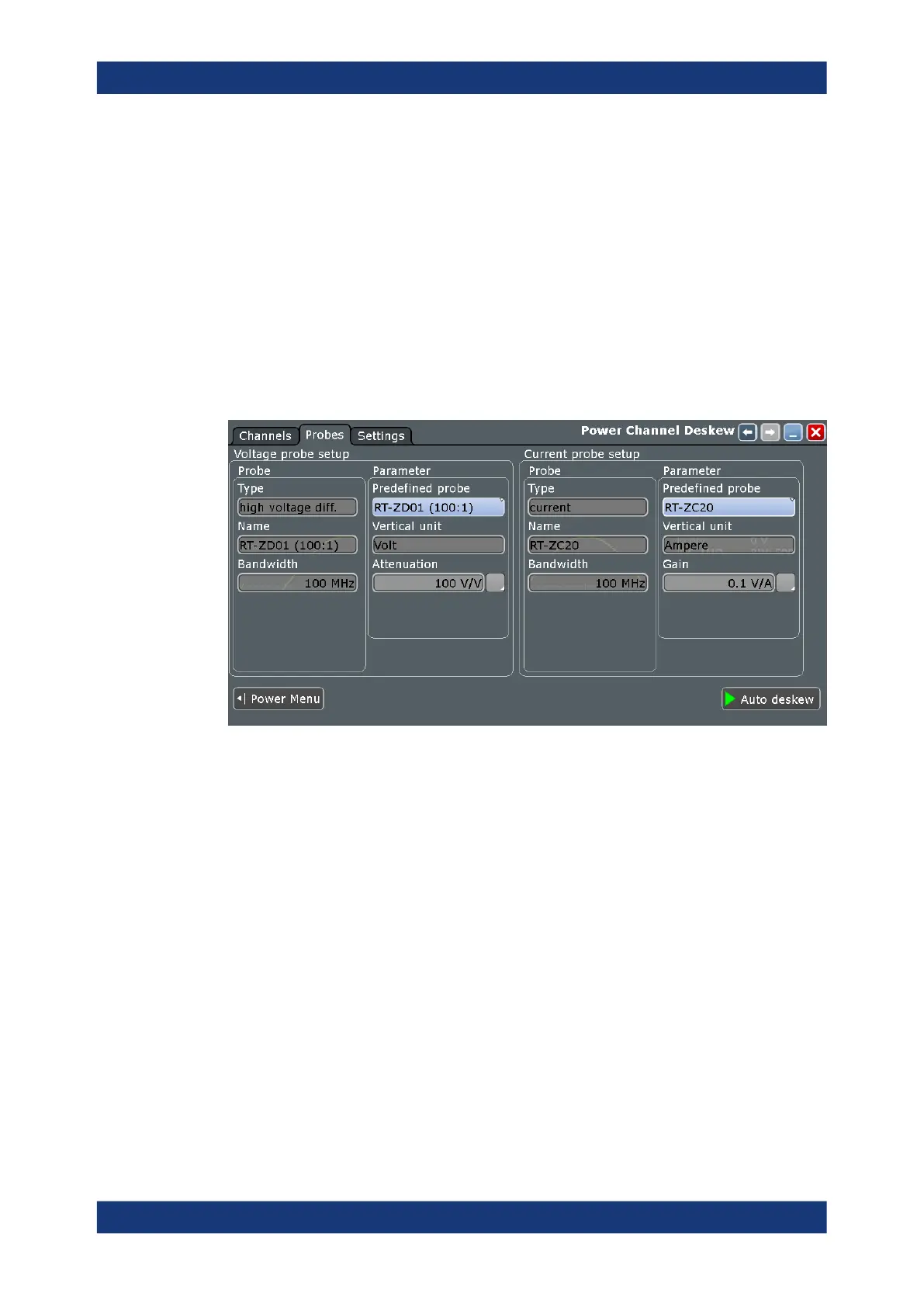

In the "Probes" tab, you check and set up your voltage and current probes.
Type, Name, Bandwidth
The fields show the characteristics of a recognized or predefined probe for information.
If the instrument cannot recognize the probe, and the probe is not known, the "Type" is
"None", and the other fields are empty.
Remote command:
PROBe<m>:SETup:TYPE? on page 1124
PROBe<m>:SETup:NAME? on page 1124
PROBe<m>:SETup:BANDwidth? on page 1125
TRPRobe:SETup:TYPE? on page 1124 (external trigger input)
TRPRobe:SETup:NAME? on page 1124 (external trigger input)
TRPRobe:SETup:BANDwidth? on page 1125 (external trigger input)
Predefined probe, Vertical unit, Attenuation
Current probes R&S RT-ZCxx, the high-voltage active probe R&S RT-ZD01 and the
transmission line probe R&S RT-ZZ80 are not recognized automatically but the param-
eters of these probes are known to the instrument. Select the correct probe type and
enter additional parameters if necessary. The corresponding "Vertical unit" and the
"Attenuation" or "Gain" are set.
For an auto deskew, only Rohde & Schwarz probes are supported.
Power measurement selection
