Waveform generator (Option R&S RTE-B6)
R&S
®
RTE
925User Manual 1326.1032.02 ─ 20

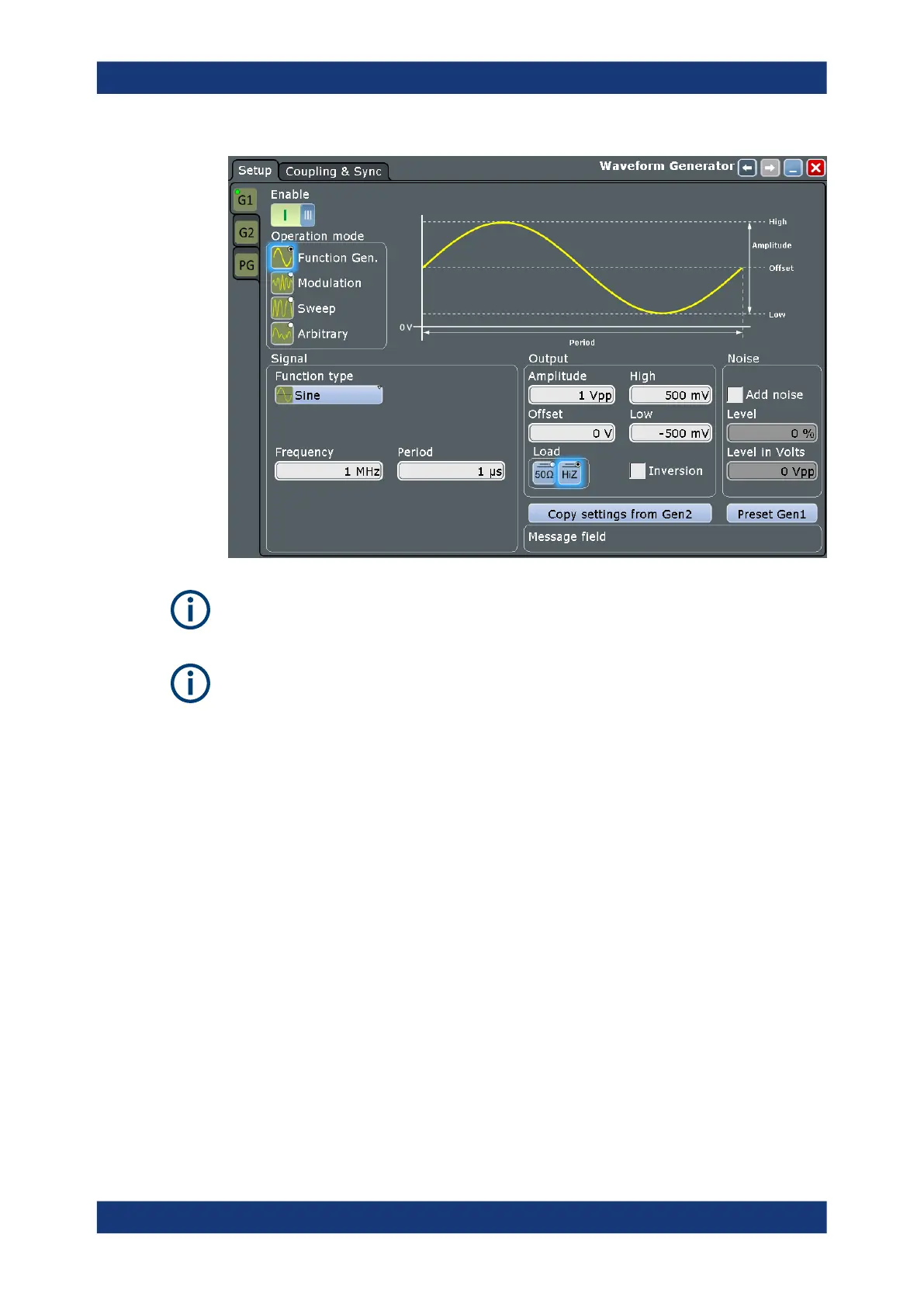

Make sure that the tab of the correct waveform generator is selected on the left side.
The settings of the waveform generators are not affected by an instrument preset.
Press "Preset Gen1/2" to preset the settings of the corresponding waveform generator.
15.1.1 General settings
The general waveform generator settings are for enabling and presetting the generator
and selecting the "Operation Mode".
Enable
Enables the waveform generator/ pattern generator and outputs the signal to the con-
nectors.
Remote command:
WGENerator<m>[:ENABle] on page 1923
PGENerator:ENABle on page 1936
Operation mode
Selects the operation mode for the waveform generator. The "Signal" settings depend
on the selected mode.
For the settings of the different operation modes, refer to:
●
Chapter 15.1.2, "Function generator", on page 926
●
Chapter 15.1.3, "Modulation", on page 930
●
Chapter 15.1.4, "Sweep", on page 936
Setup of the waveform generator
