Creating a ShopTurn program
7.18 Example: Standard machining
Turning
270 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
Z0 0abs
Z1 -25abs
LW 4inc
LR 4inc
H1 1.227inc
αP 30Degrees
Infeed
NN 2
VR 1inc
Multiple threads No
α0 0Degrees

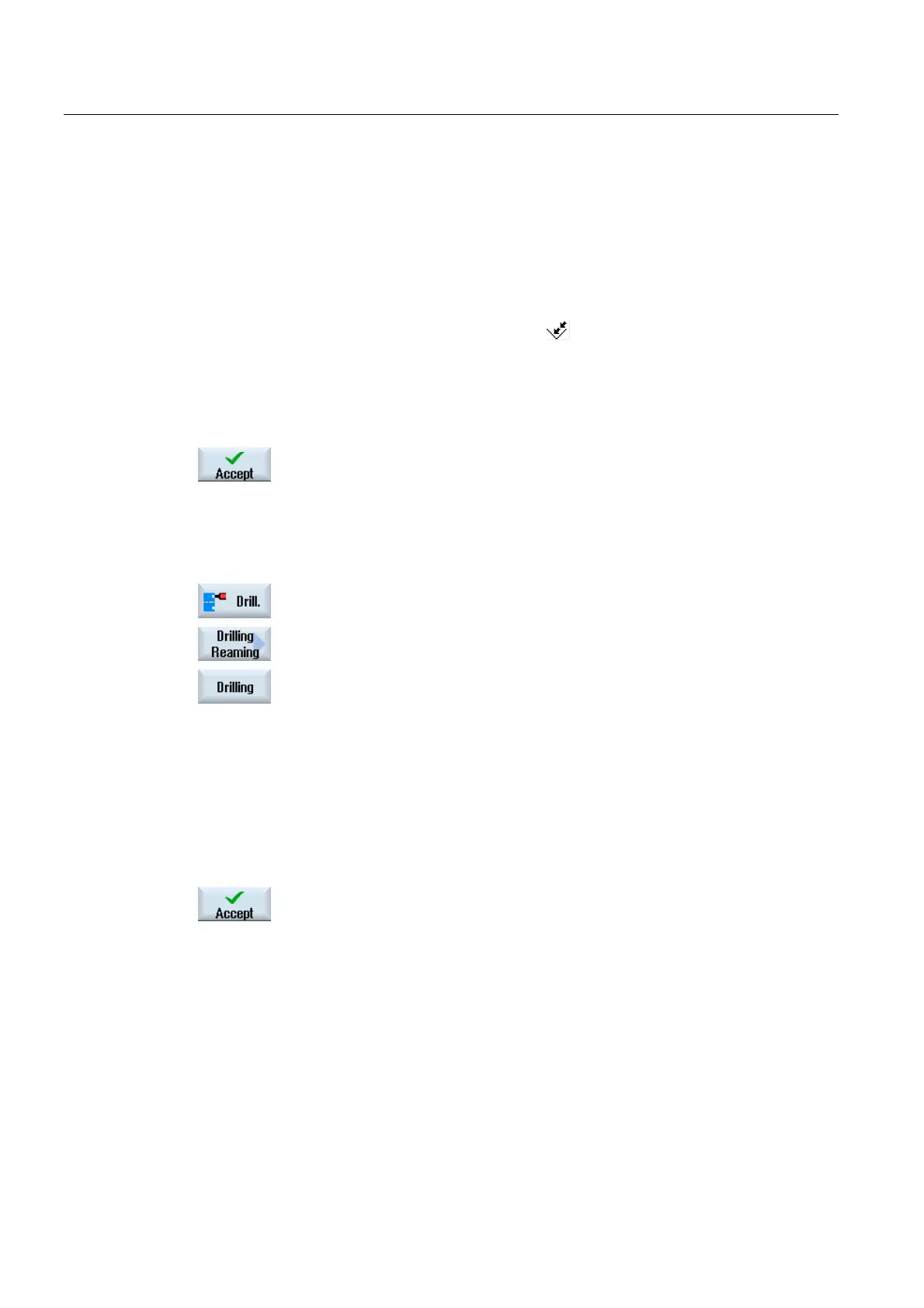

3. Press the "Accept" softkey.
12. Drilling
1. Press the "Drilling", "Drilling reaming" and "Drilling" softkeys.
The "Drilling" input window opens.
2. Enter the following technology parameters:
T Drill_D5 D1 F 0.1 mm/rev V 50 m/min
3. Enter the following parameters:
Machined surface Face C
Drilling depth Tip
Z1 10inc
DT 0s
4. Press the "Accept" softkey.
