Chapter 7 Connector Pinouts
Signal Names and Definitions
336 SSU-2000 Technical Reference 12713020-003-2 Revision F.01 – January 2007
Signal Names and Definitions
All the connectors in the following sections are located on the rear panel of the
SSU-2000, as shown in Figure 7-1.

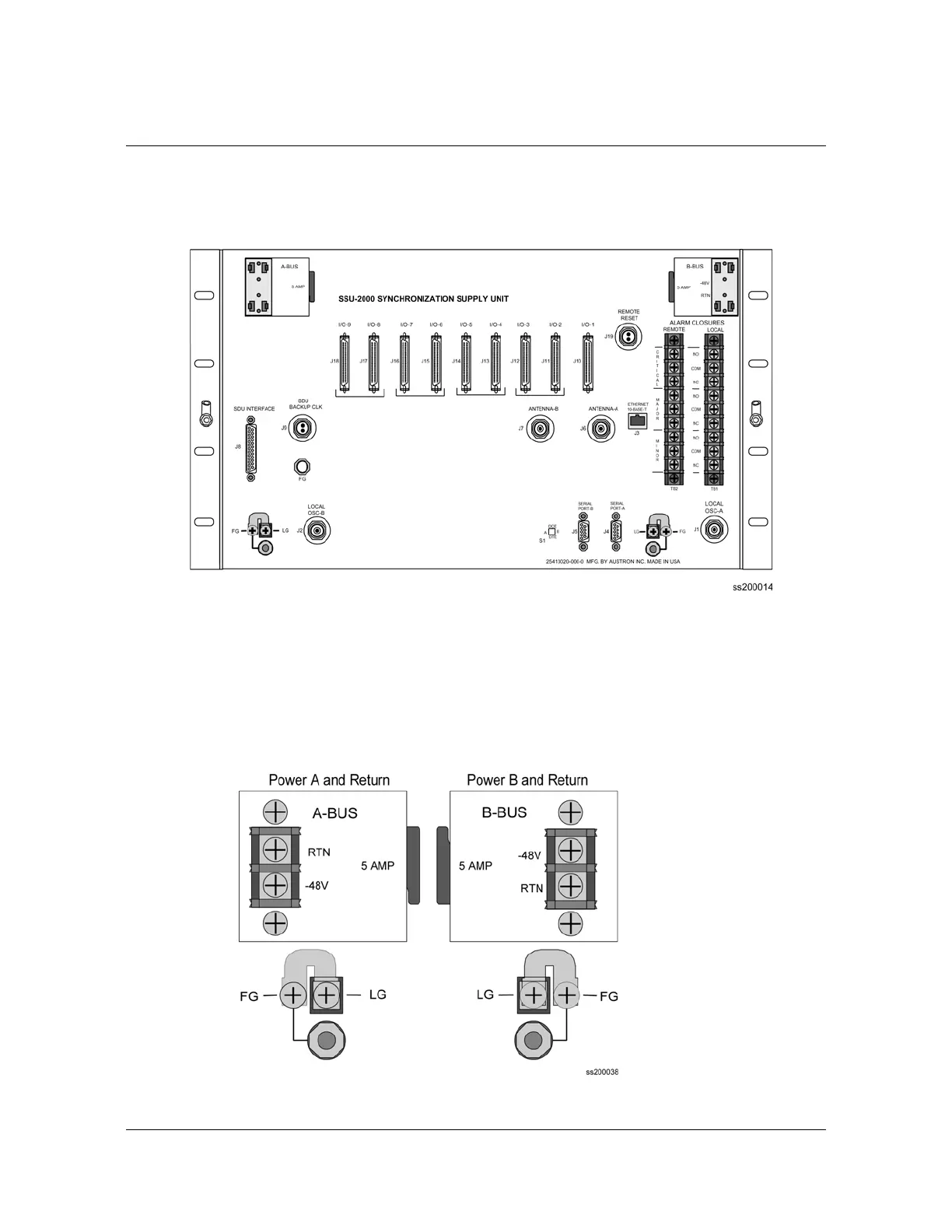

Figure 7-1. SSU-2000 Rear Panel
Power and Ground
Figure 7-2 shows the power and ground connections for the SSU-2000 chassis.
Table 7-1 outlines signal names and definitions for power and ground.
Figure 7-2. Power and Ground Connection Pinouts (Covers Removed)
