12713020-003-2 Revision F.01 – January 2007 SSU-2000 Technical Reference 343
Chapter 7 Connector Pinouts
Signal Names and Definitions

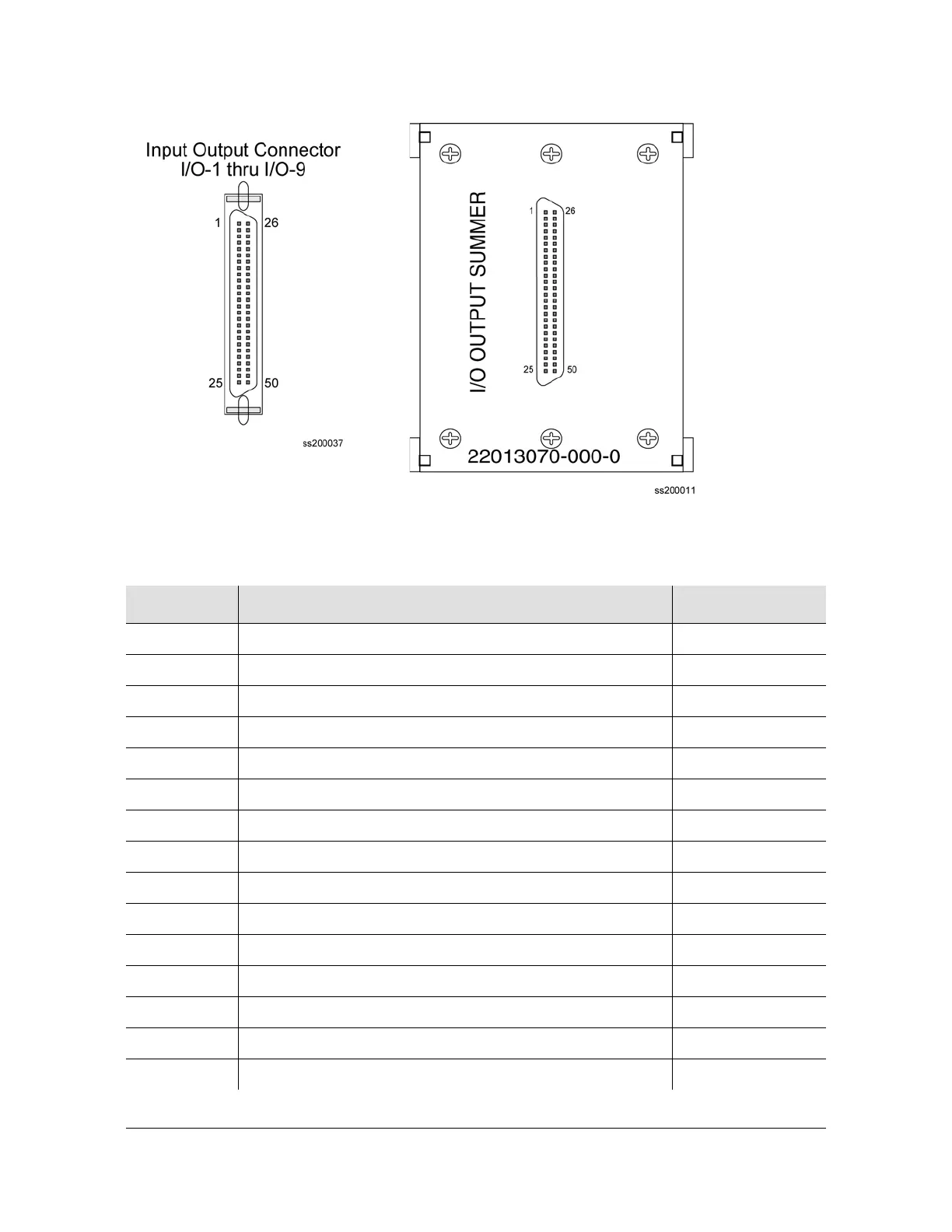

Figure 7-7. I/O Connector and Summer Adapter Pinouts
Table 7-7. 50 Pin Connector Input/Output Signal Names and Location
Name Description Connector Pin #
Cs Fault Logic Level Input Indicating Problem with Cs Reference 1
Cs Fault RTN Return Line for Cs Fault Signal 26
ITIP 01 Tip Connection of Input Signal # 1 3
IRING 01 Ring Connection of Input Signal # 1 28
ITIP 02 Tip Connection of Input Signal # 2 13
IRING 02 Ring Connection of Input Signal # 2 38
ITIP 03 Tip Connection of Input Signal # 3 23
IRING 03 Ring Connection of Input Signal # 3 48
OTIP 01 Tip Connection of Output Signal # 1 2
ORING 01 Ring Connection of Output Signal # 1 27
OTIP 02 Tip Connection of Output Signal # 2 4
ORING 02 Ring Connection of Output Signal # 2 29
OTIP 03 Tip Connection of Output Signal # 3 5
ORING 03 Ring Connection of Output Signal # 3 30
OTIP 04 Tip Connection of Output Signal # 4 6
