Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-35
12. Remove the Lifter Components. (Figure 4)
a. Release the Feed Spring from the Lifter Arm.
b. Remove the Lifter Arm.
c. Remove the Lifter Lever.

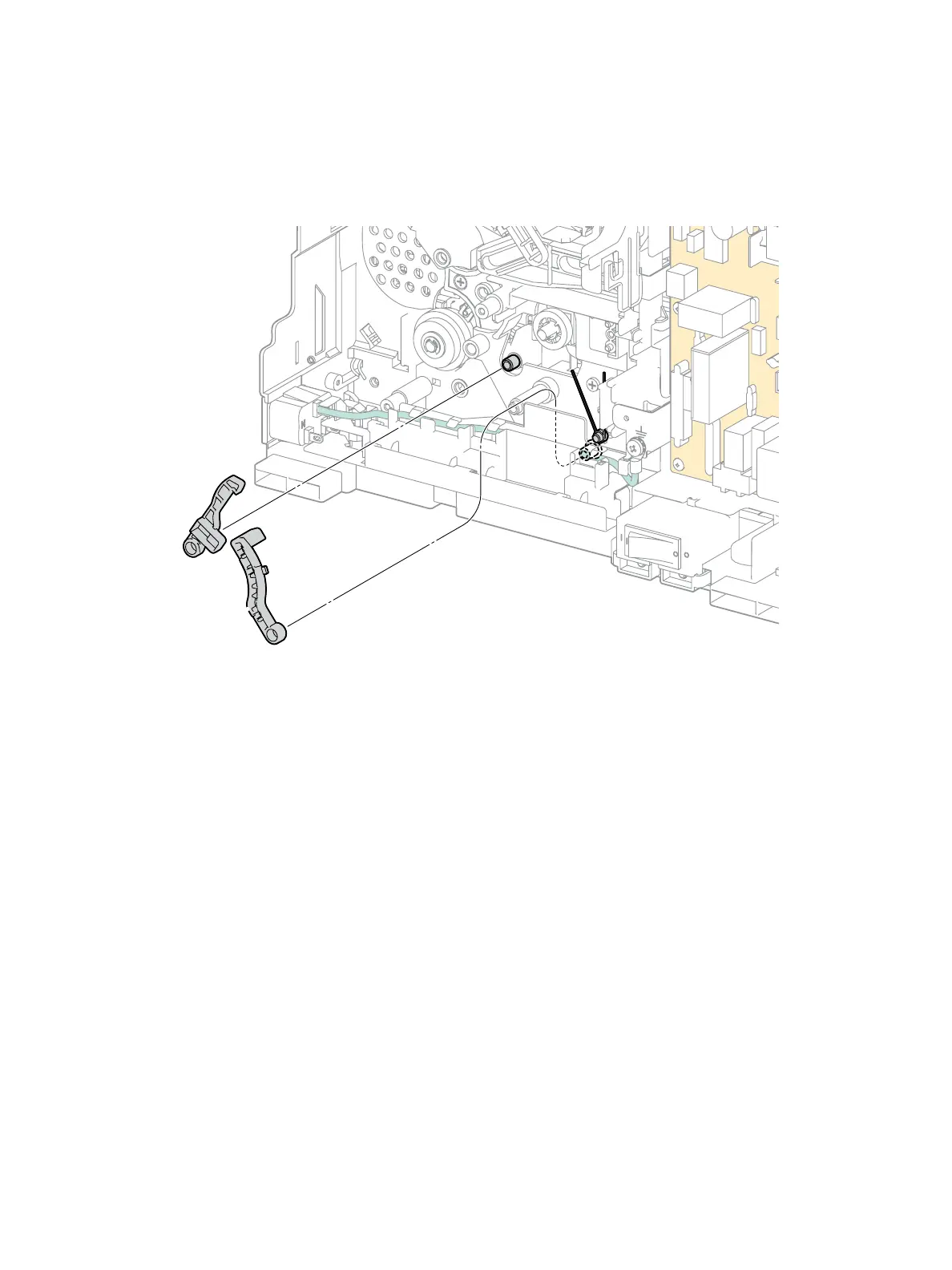

Figure 4
s3610-016
a)
b)
c)
